Features

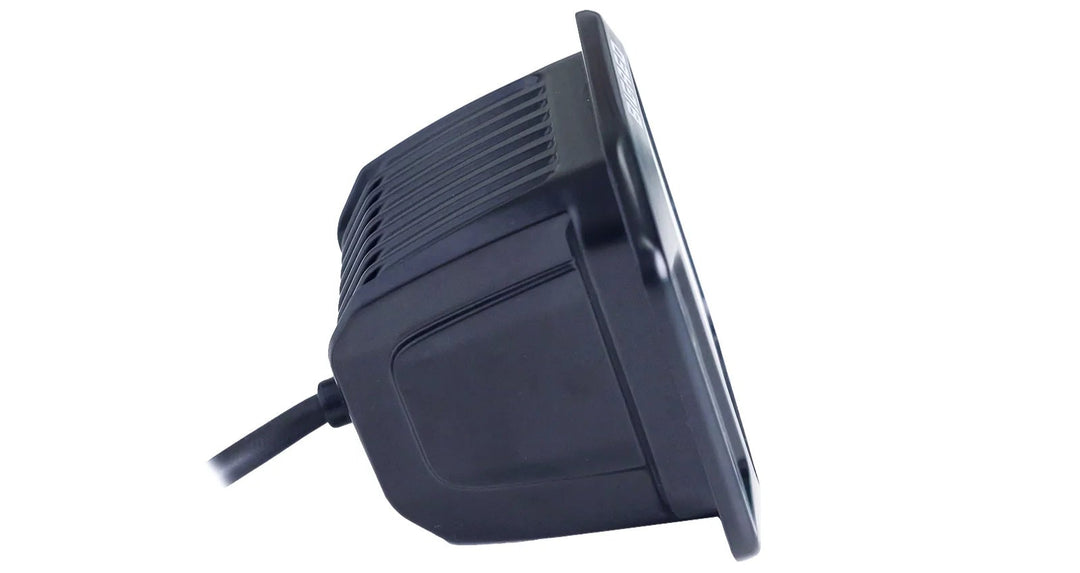

- Black stealth slimline design.
- 40W’s of high output Osram LED’s are precisely aligned within the unique, optic drive reflectors to reduce glare and maximise performance.
- The flush mount design often sees these lamps fitted to rear bars to provide additional light when reversing.
- Tough aluminium diecast housing and UV stable polycarbonate lens.
- Multi-voltage input suitable for both 12 and 24V vehicles.
- Fully sealed and rated to IP67 for dust and water ingress protection.
Beam Diagram
1 Lux at 53m
Technical Specifications
| Specifications | BR9532 |
|---|---|
| Beam Type | Flood |
| Wattage | 40W |
| Input Voltage | 12/24V |
| Current Draw (12V) | 3.4A |
| LEDs (Osram) | 4 |
| Colour Temperature | 5700°K |
| Housing | Pressure die-cast aluminium |
| Hardware | Stainless Steel |
| Lens | Polycarbonate |
| Protection | Reverse Polarity Protection |
| EMC | ECE R10 |
| IP Rating | IP67 |
| Raw Lumens | 4800 |
| Effective Lumens | - |
| 1 Lux Distance | 53m |
| Warranty | 3 Years |
| Weight | 0.5kg |
What you get
- 1x BR9532 3.2" Flush Lamp Flood Beam
- Mounting Bracket
- Mounting Hardware
- 1x Female Pigtail Connector
- Product Instructions
