Big Red 3.2" Inch LED Flush Lamp
Big Red 3.2" Inch LED Flush Lamp
Big Red 3.2" Inch LED Flush Lamp

Big Red 3.2" Inch LED Flush Lamp

SKU BR9532

Regular price$69.00

These 40W square work lights shine an incredible 120 degree beam up to 102m from the light source. They are often mounted into rear bars or canopies to provide auxiliary lighting for off-road driving, reversing or working around the vehicle.


  • Black stealth slimline design.
  • 40W’s of high output Osram LED’s are precisely aligned within the unique, optic drive reflectors to reduce glare and maximise performance.
  • The flush mount design often sees these lamps fitted to rear bars to provide additional light when reversing.
  • Tough aluminium diecast housing and UV stable polycarbonate lens.
  • Multi-voltage input suitable for both 12 and 24V vehicles.
  • Fully sealed and rated to IP67 for dust and water ingress protection.

Beam Diagram

1 Lux at 53m

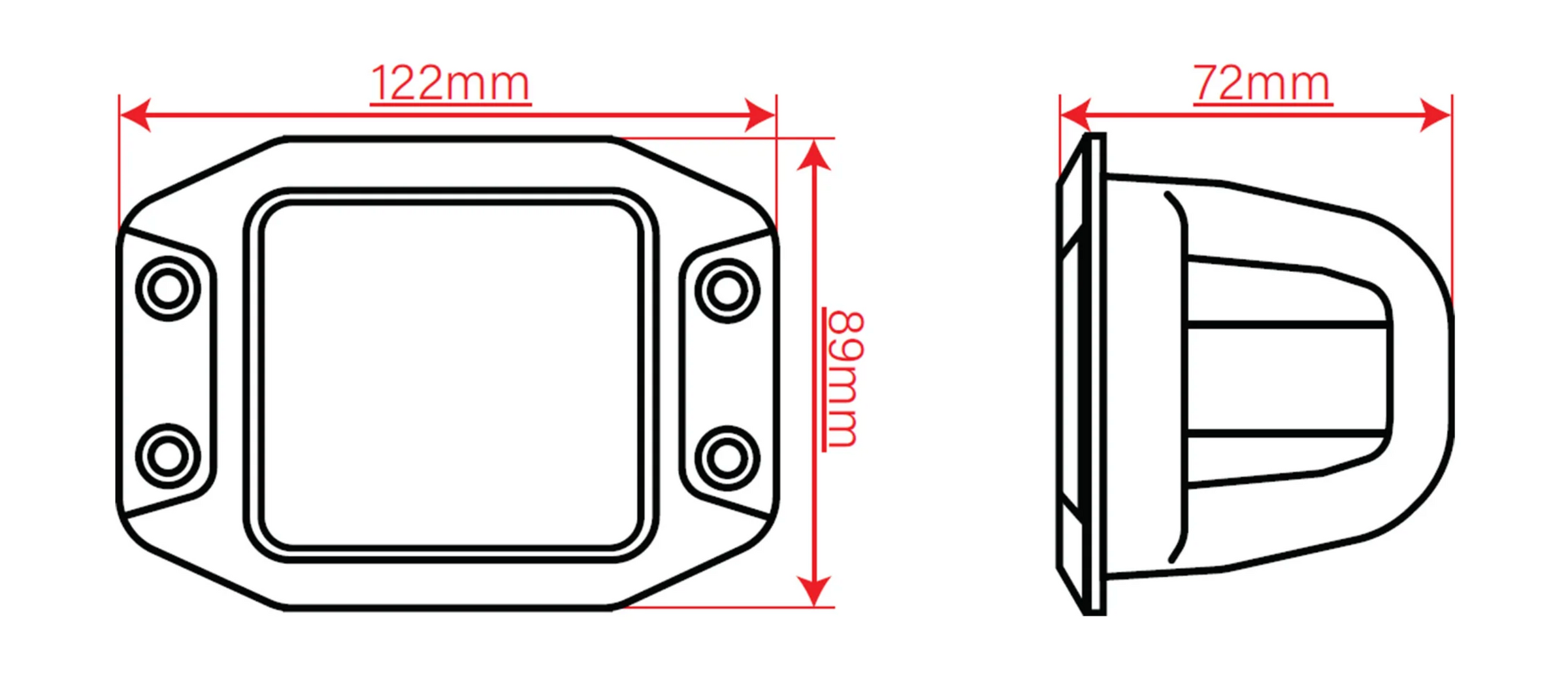

3.2 inch flush lamp dimensions.jpg__PID:2e04122f-18b6-4e9c-b643-cb9e59533be0

Technical Specifications

Beam TypeFlood
Input Voltage12/24V
Current Draw (12V)3.4A
LEDs (Osram)4
Colour Temperature5700°K
HousingPressure die-cast aluminium
HardwareStainless Steel
ProtectionReverse Polarity Protection
IP RatingIP67
Raw Lumens4800
Effective Lumens-
1 Lux Distance53m
Warranty3 Years

What you get

  • 1x BR9532 3.2" Flush Lamp Flood Beam
  • Mounting Bracket
  • Mounting Hardware
  • 1x Female Pigtail Connector
  • Product Instructions
