Big Red 6" Inch LED Flush Lamp
Big Red 6" Inch LED Flush Lamp
Big Red 6" Inch LED Flush Lamp

Big Red 6" Inch LED Flush Lamp

SKU BR9542

Regular price$59.00

Utilising the latest OSRAM LED chips and showcasing our all-new Big Red 6 Inch Flush Lamp with flood beam pattern, these Big Red 30W flush-mount LED work lights are simply the best slimline work lights on the market right now.


  • Black stealth slimline design in a flush mount housing.
  • 30W’s of high output Osram LED’s are precisely aligned within the unique, optic drive reflectors to reduce glare and maximise performance.
  • The flush mount design often sees these lamps fitted to rear bars or canopies to provide additional light when reversing.
  • Tough aluminium diecast housing and UV stable polycarbonate lens.
  • Multi-voltage input suitable for both 12 and 24V vehicles.
  • Fully sealed and rated to IP67 for dust and water ingress protection.

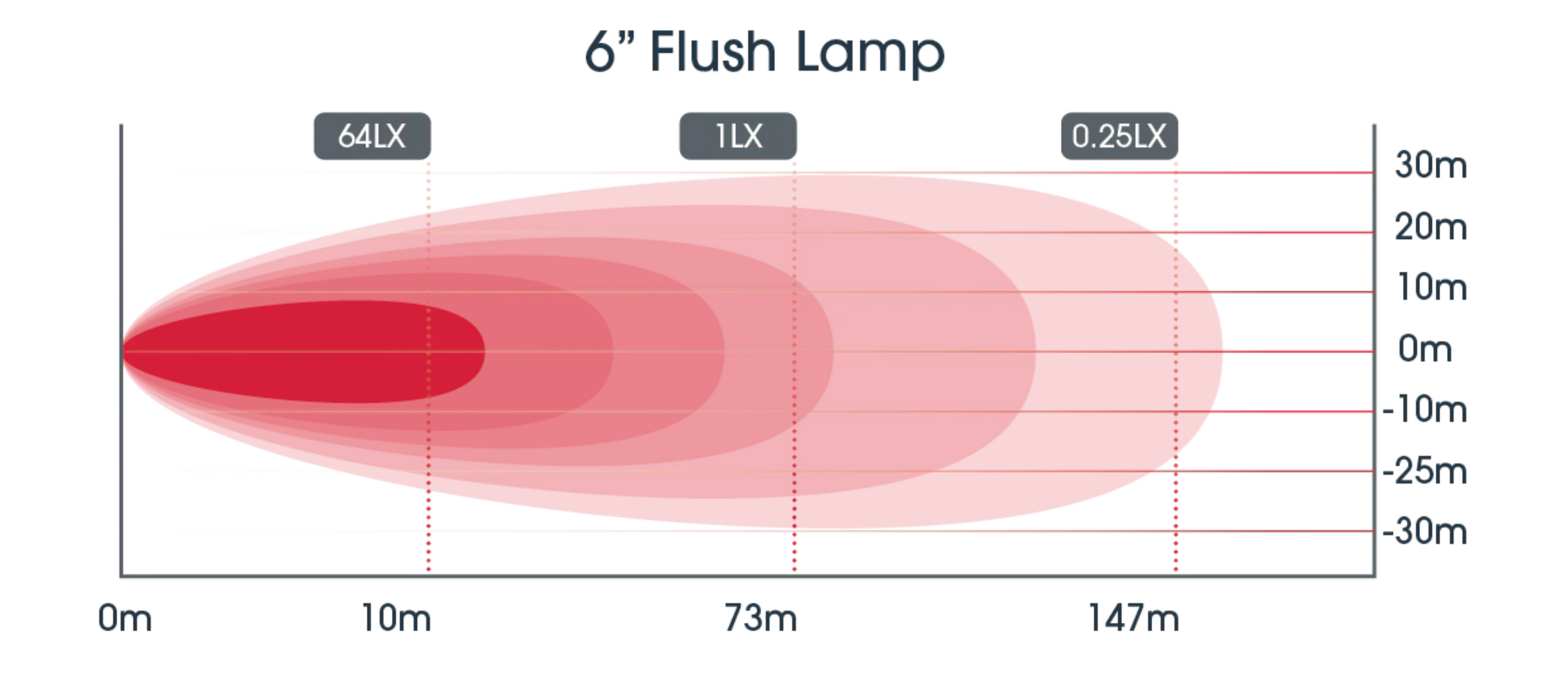

Beam Diagram

1 Lux at 73m

6 inch flush lamp dimensions.jpg__PID:b7f1b8d9-916f-4f5f-b5d1-a1049f4bc3b0

Technical Specifications

Beam TypeFlood
Input Voltage12/24V
Current Draw (12V)2A
LEDs (Osram)6
Colour Temperature5700°K
HousingPressure die-cast aluminium
HardwareStainless Steel
ProtectionReverse Polarity Protection
IP RatingIP67
Raw Lumens2880
Effective Lumens-
1 Lux Distance73m
Warranty3 Years

What you get

  • 1x BR9542 6" Flush Lamp Flood Beam
  • Mounting Bracket
  • Mounting Hardware
  • 1x Female Pigtail Connector
  • Product Instructions
