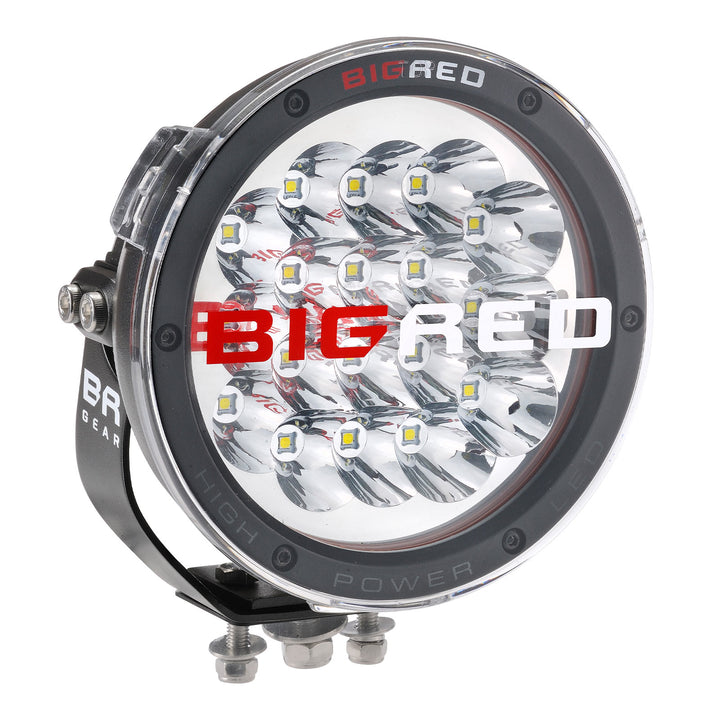

7" Inch BRG LED Driving Light (each)
7" Inch BRG LED Driving Light (each)
7" Inch BRG LED Driving Light (each)
7" Inch BRG LED Driving Light (each)

7" Inch BRG LED Driving Light (each)


Regular price $99.00 Save Liquid error (product-template line 120): Computation results to '-Infinity'%

Only 423 items in stock!
Big Red Gear is back with even more light and better value. Our flagship high power driving lamps are built using 5W Osram LED’s surrounded by our precisely engineered parabola optics. The result is enormous volumes of light to illuminate your night.

Also available from our leading online agents:


  • High output 5W Osram LEDs produce a crisp, white light that we shape using precisely formed and aligned reflectors. This ensures an even distribution of light and perfectly formed spot beam for distance down the road.
  • 5700°K colour temperature LED’s blend the perfect balance of white light while retaining the best possible definition and Colour Rendering Index (CRI).
  • Our heavy duty stainless steel brackets are suitable for the rigours of off-road, 4WD tracks and have been finished in a durable black powder coat with white BR GEAR logos.
  • Each lamp includes our innovative rubber dampening system to help isolate the housing from the bracket and reduce vibration on the electronics.
  • We use a 3mm thick virtually unbreakable polycarbonate lens with hard coating for increased scratch resistance and protection from exposure to UV light.
  • Our lamps are also tested and complied to ECE R10 for Electro Magnetic Compatibility (EMC), meaning you should not have any problems interfering with sensitive equipment.
  • Each lamp also includes a clear see though polycarbonate cover for protection from stone spray and debris.
  • Fully sealed and tested to IP68 for dust and water ingress protection, meaning they are waterproof for up to 3m of submersion. Perfectly suited for river crossings.

Beam Diagram

1 Lux at 702m (with two lamps)

Technical Specifications

Input Voltage
Current Draw6A
LEDs (Osram)18 x 5W
Colour Temperature5700°K
IP RatingIP68
Raw Lumens9000
Effective Lumens6087
1 Lux Distance702m

What you get

  • BR9022 7" LED Driving Light x1
  • Big Red Clear Cover
  • Stainless Steel Bolts, Nuts and Washers
  • Rubber Mounting Pad
  • Distribution Plate
  • 2 Position DT lead
  • Product Instructions
