Features

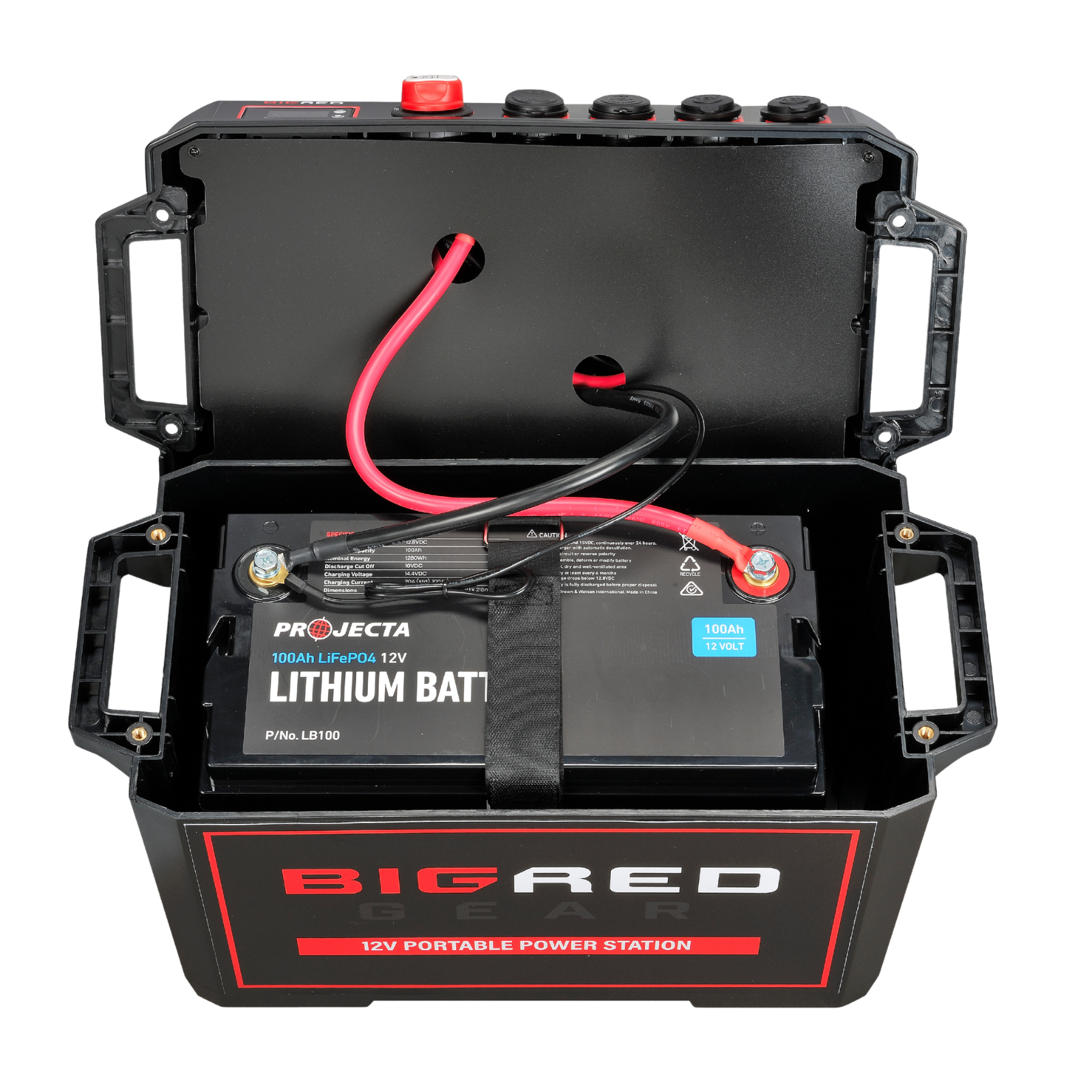

- Suits N70-size 12V batteries up to 365 x 185 x 240 mm
- Compatible with lead-acid and lithium batteries

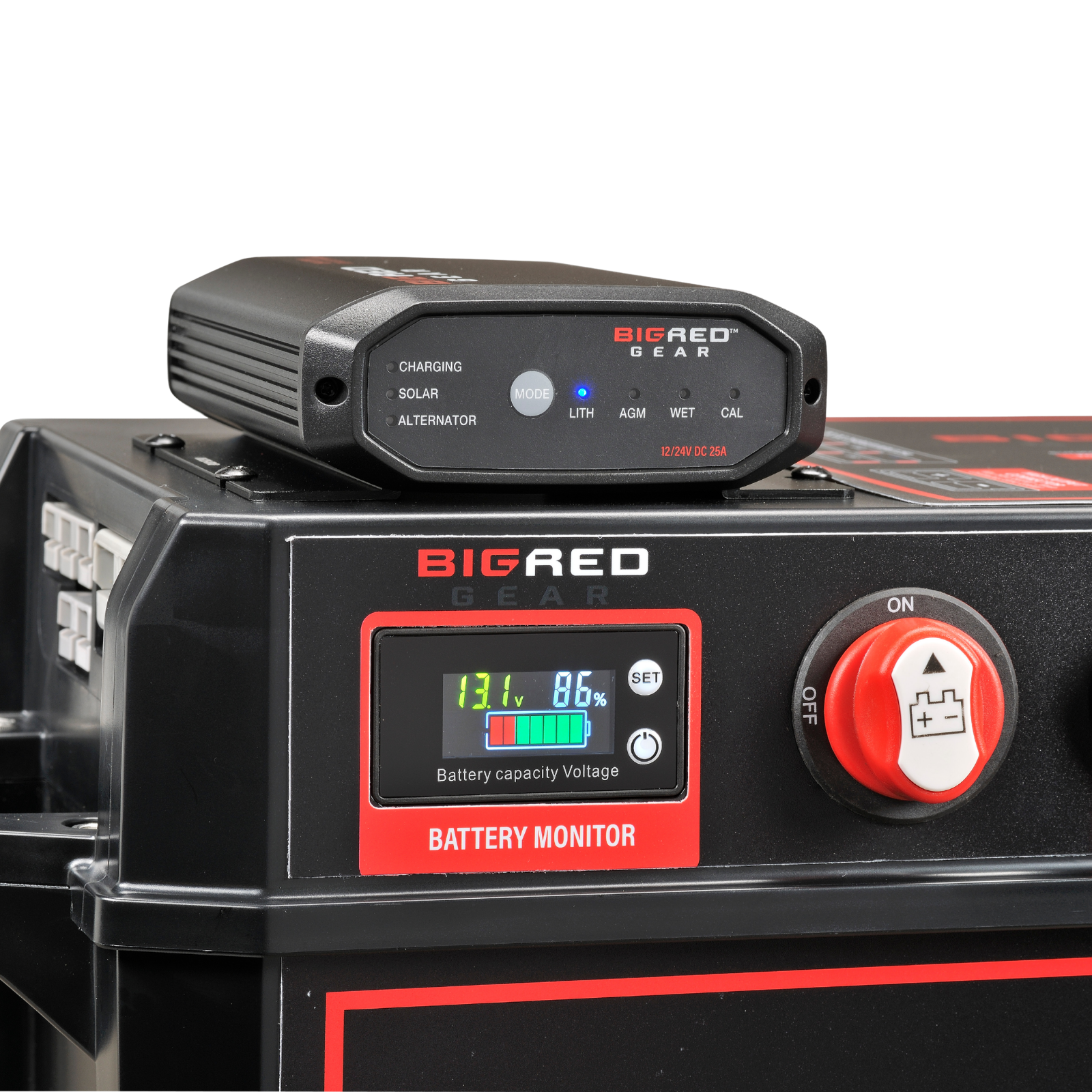

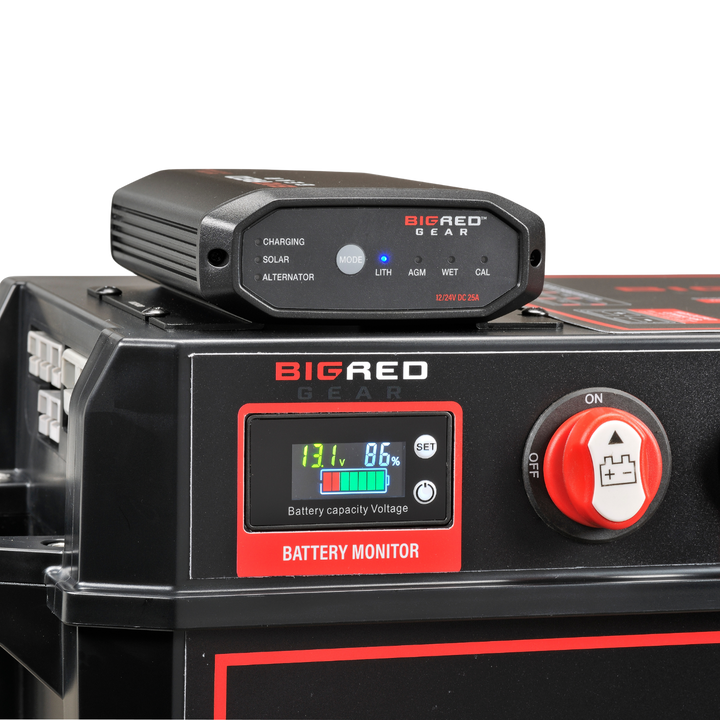

- Integrated LCD voltage and state-of-charge monitor
- Heavy-duty master isolation switch
- Four 50A heavy-duty connectors and one 175A high-current connector
- Two 10A accessory sockets
- Three USB-A QC3.0 ports and one USB-C PD port
- Built-in carry handles and durable ABS construction
- Three-year warranty
- Integrated 25A DC-DC charger with switchmode technology
- MPPT solar charging; no separate solar controller required for an unregulated panel input
- Simultaneous alternator and solar input, with solar taking priority
- Smart-alternator support through the ignition override connection
- Three-stage Bulk, Absorption and Float charging
- Lithium, AGM, Wet and Calcium charging profiles
- Voltage-drop and temperature compensation
- Optional BRN70BBT mounting tray available for a secured installation
TECHNICAL SPECIFICATIONS
| Specifications | BRN70BBDC |
|---|---|
| Alternator input voltage | 11.9-32V DC |
| Maximum solar input voltage | 28V DC |
| Maximum input current | 40A |
| Input current, no load | 20mA |
| Maximum charge current | 25A |
| Back-drain current | 9.5-10.5mA |
| Solar input turn-on | 11V |
| Charge type | Bulk, Absorption, Float |
| Charge voltages | Lithium 14.2V / AGM 14.4V / Wet 14.7V / Calcium 14.7V |
| VSR mode, 12V | On 13.4-20V / Off below 12.8V |
| VSR mode, 24V | On 24.4-32V / Off below 24V |
| Low-voltage mode, 12V | On 12.2-20V / Off below 11.9V |
| Low-voltage mode, 24V | On 24.4V / Off below 24V |
| Alternator connector | 1 x 3-pin heavy-duty connector |
| Solar connector | 1 x 2-pin heavy-duty connector for unregulated solar input |
| 175A heavy-duty connector | 150A maximum for 20 minutes / 100A continuous; 1800W / 1200W |
| 50A heavy-duty connectors | 4; maximum 50A total per side, fuse protected |
| Accessory sockets | 2 x 10A; 20A fuse protected |
| USB-A | 3 x QC3.0; up to 3A per port with built-in protection |
| USB-C PD | 1; 5V 3A / 9V 2A / 12V 1.5A with built-in protection |
| Display | LCD; operating current under 15mA |
| Low-voltage alarm | 11.5V default |
| External dimensions | 480 x 220 x 360 mm |
| Maximum battery dimensions | 365 x 185 x 240 mm |
| Material | ABS |
| Weight excluding battery | 4.7 kg |
| Operating temperature | -20°C to 60°C |
| Compliance | EMC certified |
| Maximum combined current | 150A across all outputs |
| Warranty | 3 years |
What's in the box

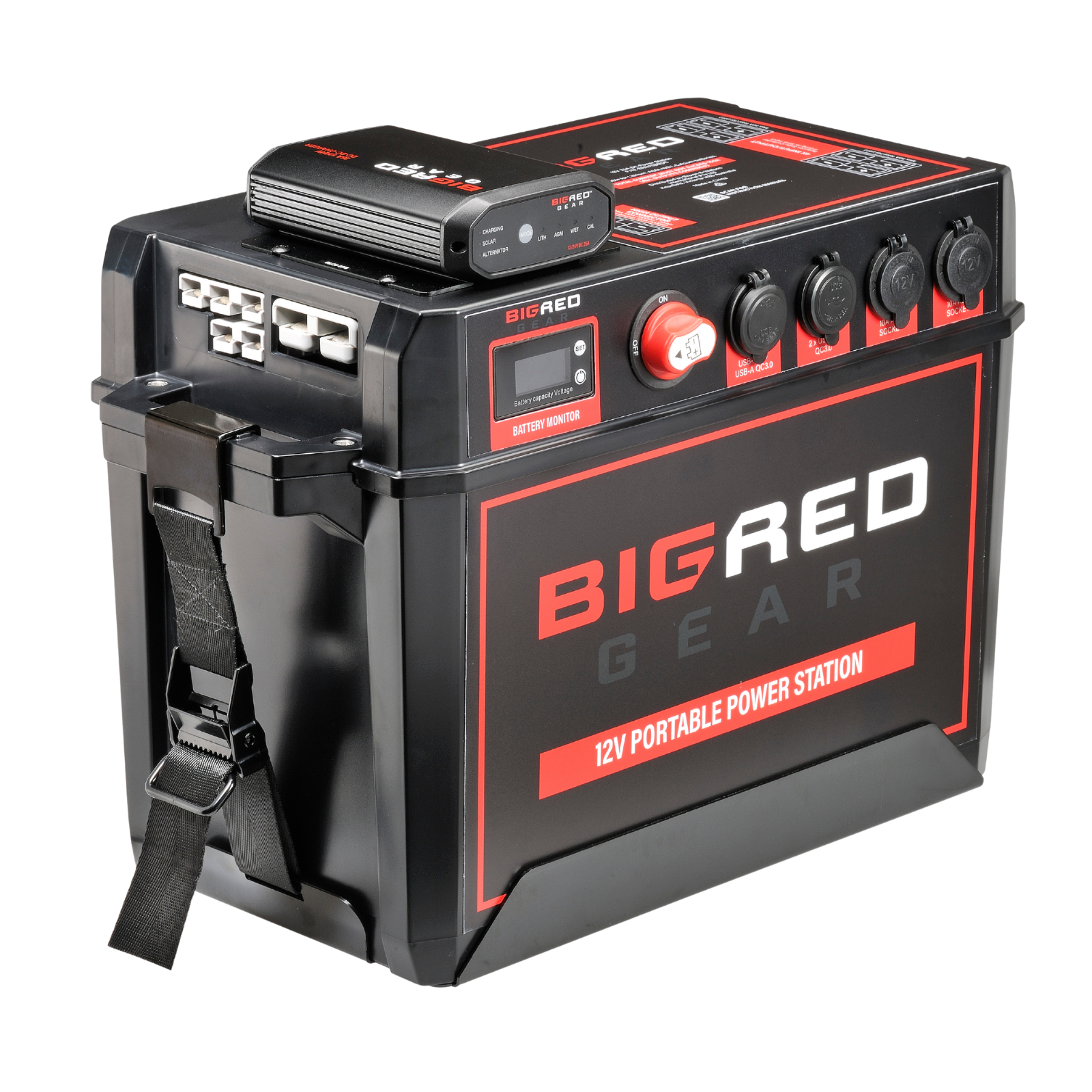

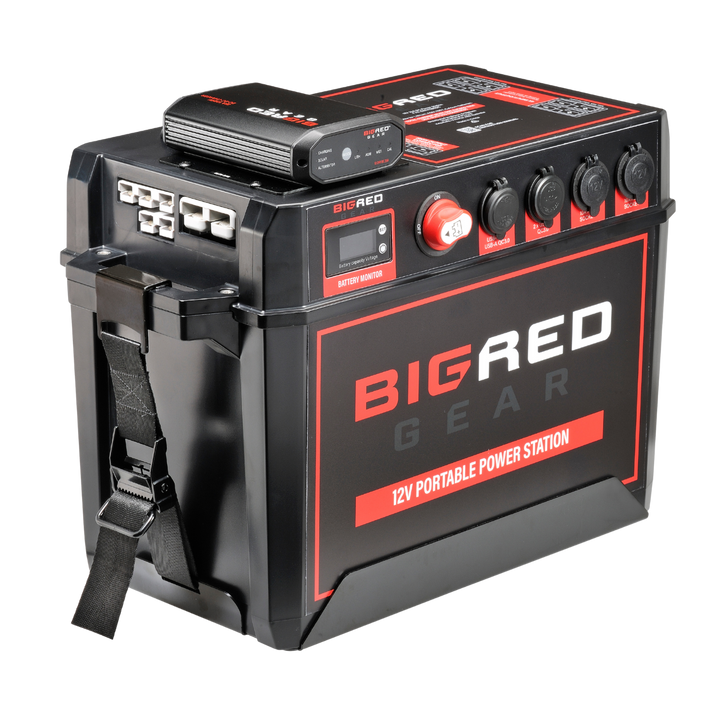

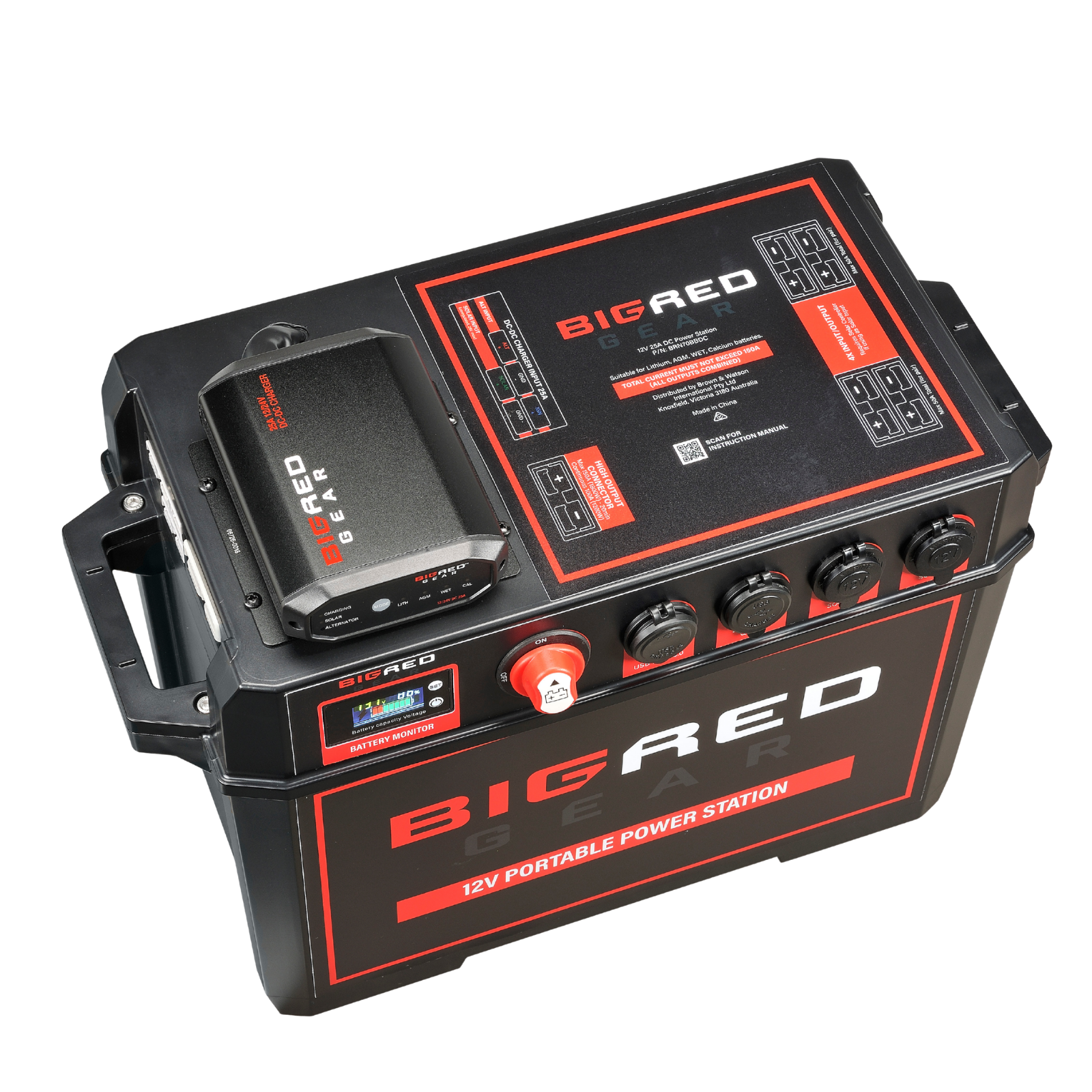

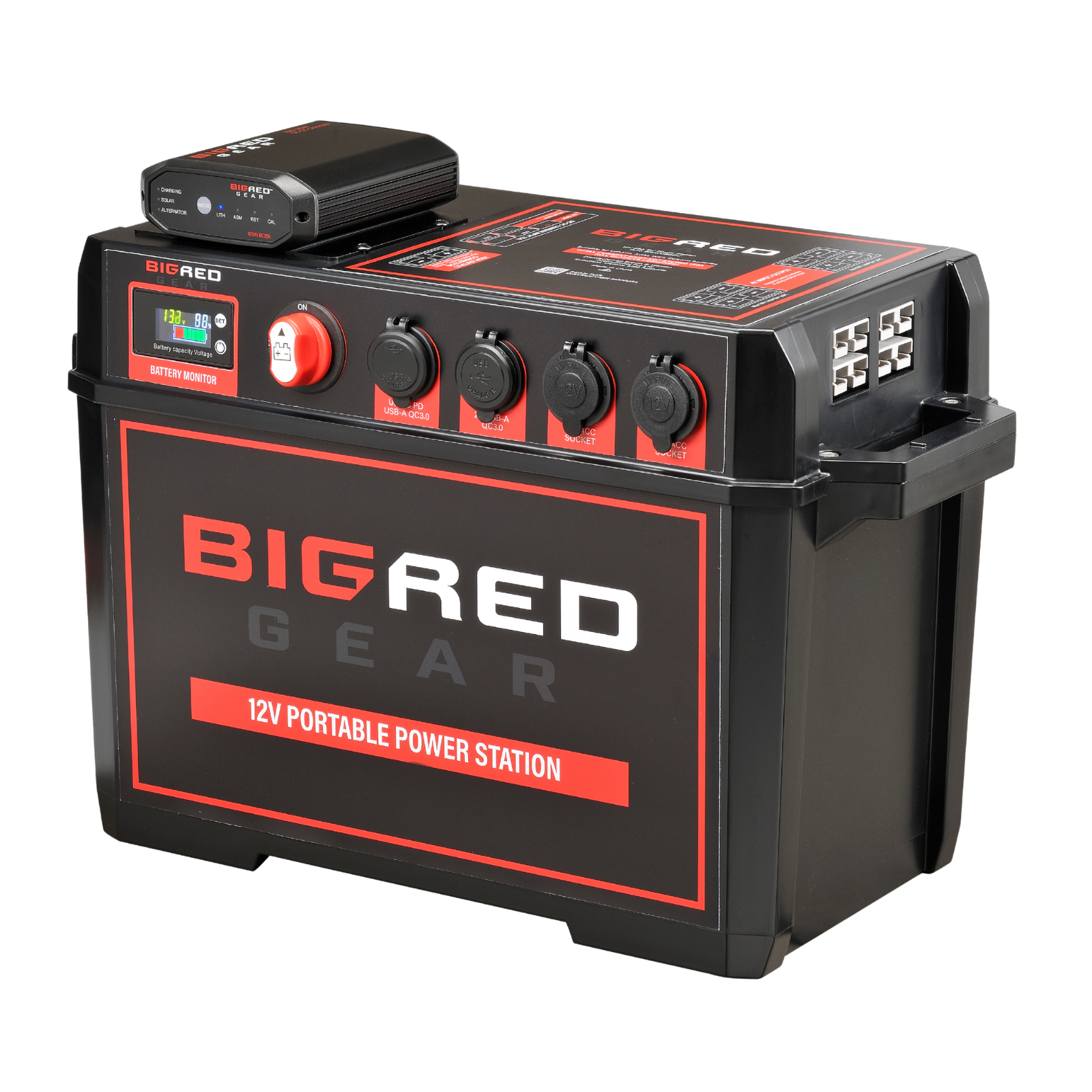

BRN70BBDC 12V Power Station with DC-DC Charger
- Integrated BRDC1225 25A DC-DC and MPPT solar charger
- 4 x 50A heavy-duty connectors
- 1 x 175A heavy-duty connector
- 2 x 10A accessory sockets
- 3 x USB-A QC3.0 sockets
- 1 x USB-C PD port
- Master switch for ON/OFF operation
- LCD voltmeter display
FAQs
Yes. Its ignition override connection activates the lower input-voltage mode used by smart, variable-voltage alternators.
Yes. Both inputs can charge simultaneously, with solar taking priority when available.
No for an unregulated solar panel connected to the dedicated solar input; the integrated charger provides MPPT regulation. Maximum solar input is 28V DC.
No. Use it in sheltered conditions, keep it out of rain and never clean it with a high-pressure washer.
Yes, within the stated limits: up to 1800W / 150A for 20 minutes, or 1200W / 100A continuously, using correctly rated cabling.
