SKU BRN70BB

$229.00
/
Tax included. Shipping calculated at checkout.
N70 SIZE — BATTERY BOXN70 SIZEBATTERY BOX
150A MAX — HIGH CURRENT150A MAXHIGH CURRENT
USB-A + USB-C — FAST CHARGINGUSB-A + USB-CFAST CHARGING
LCD DISPLAY — BATTERY MONITORLCD DISPLAYBATTERY MONITOR

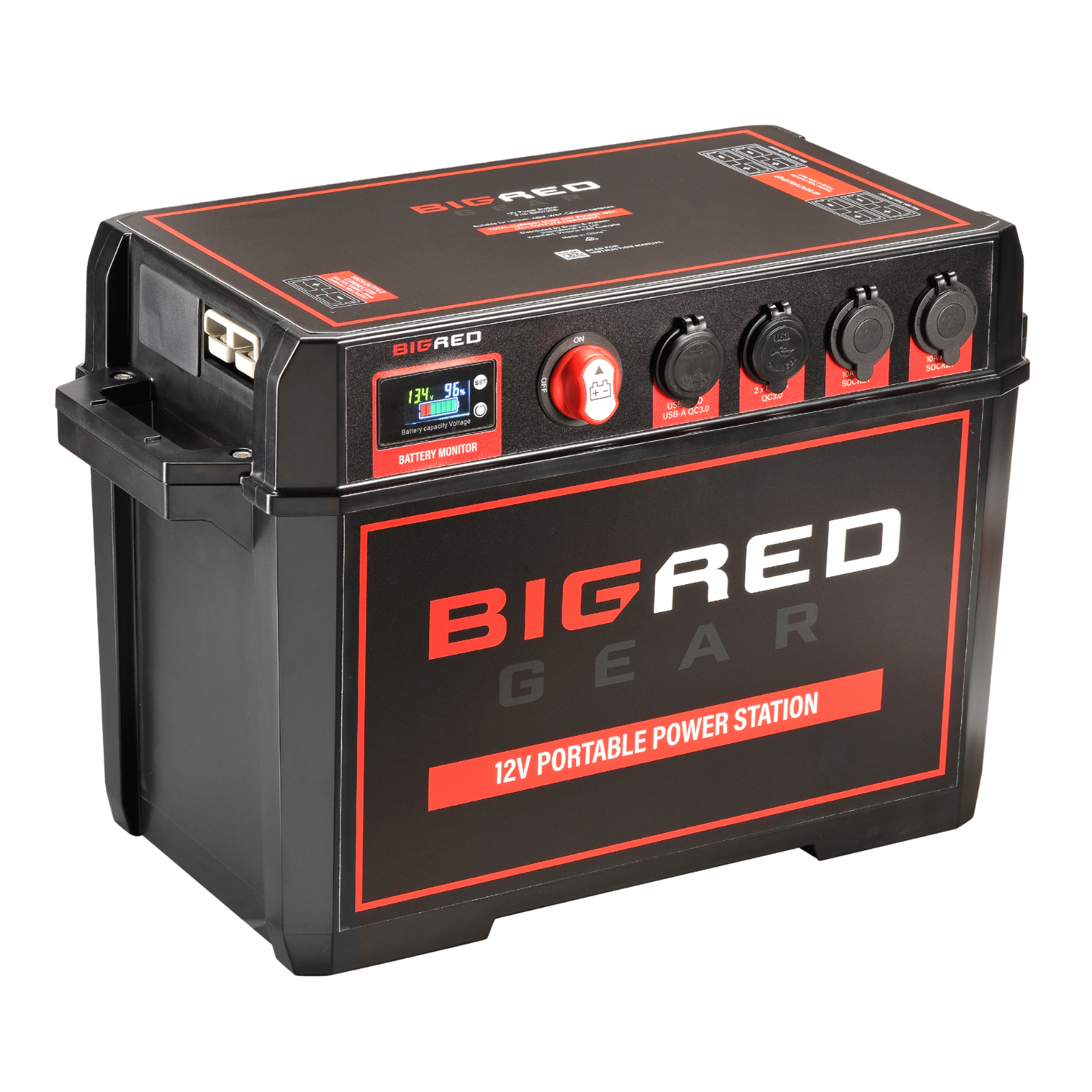

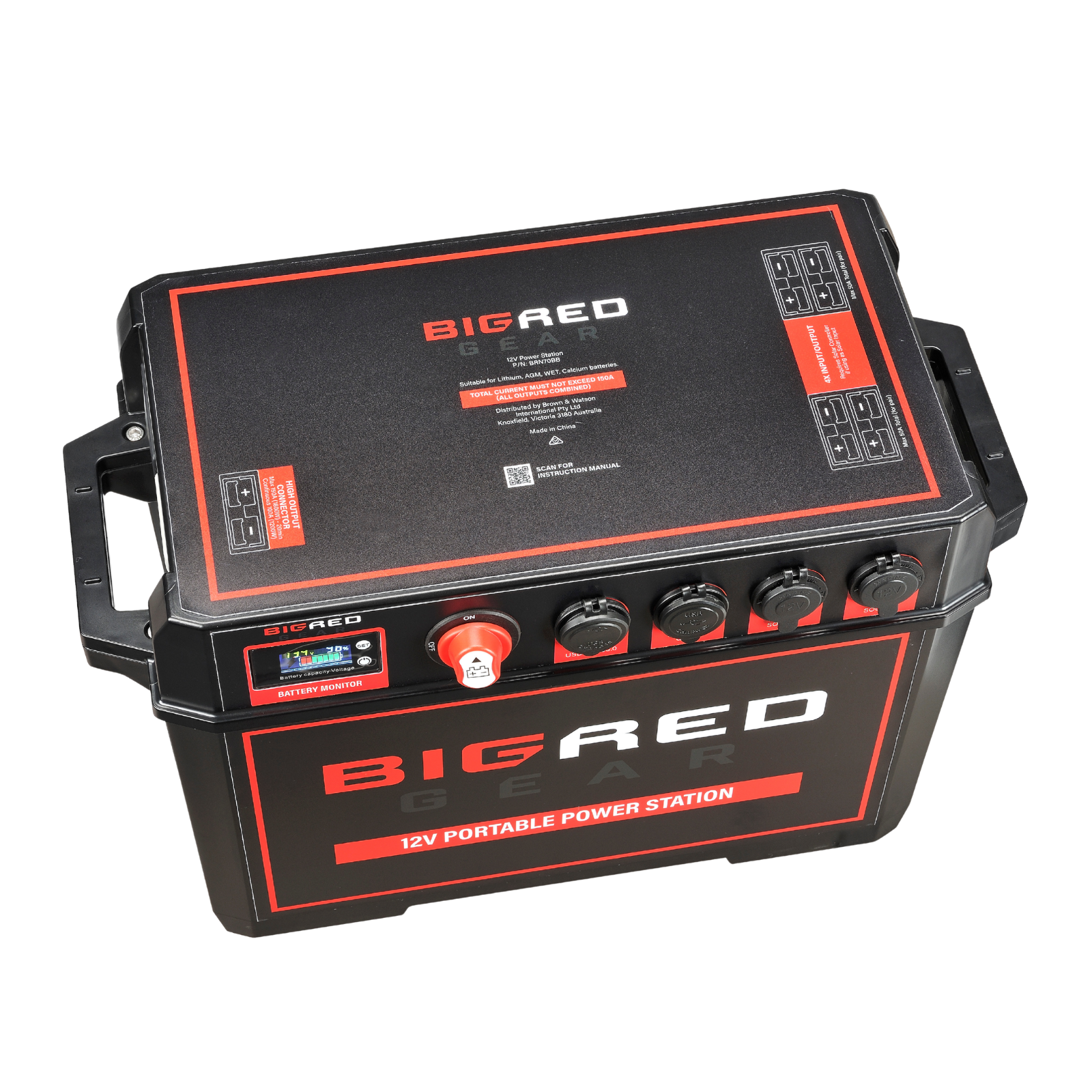

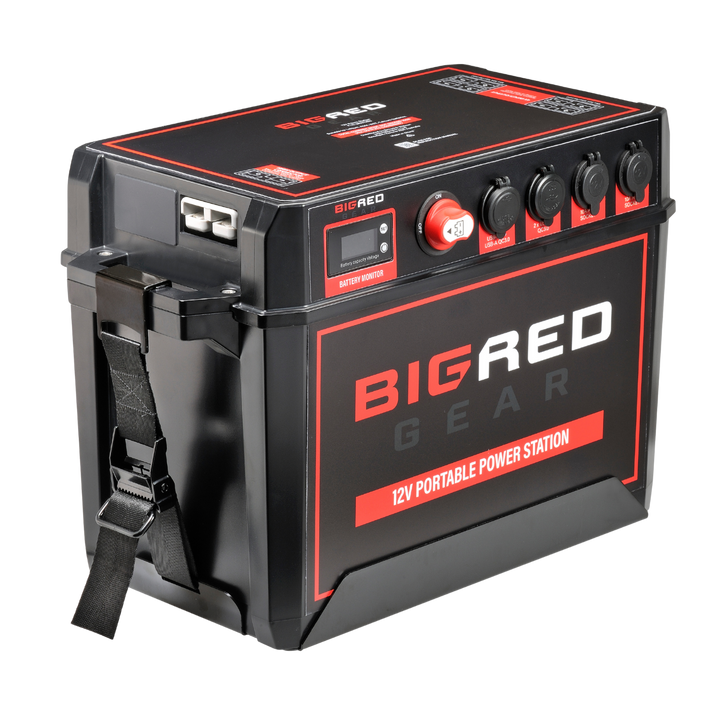

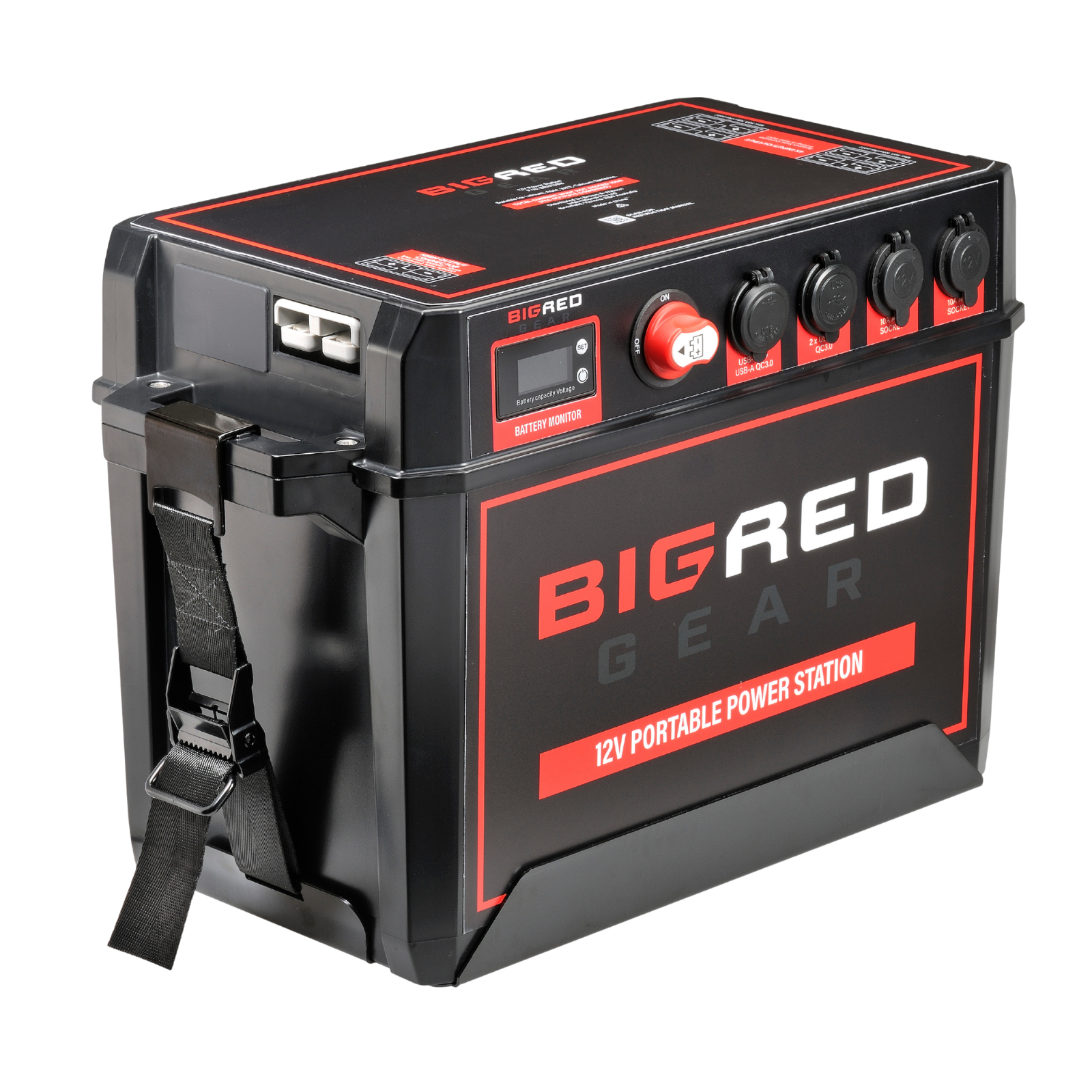

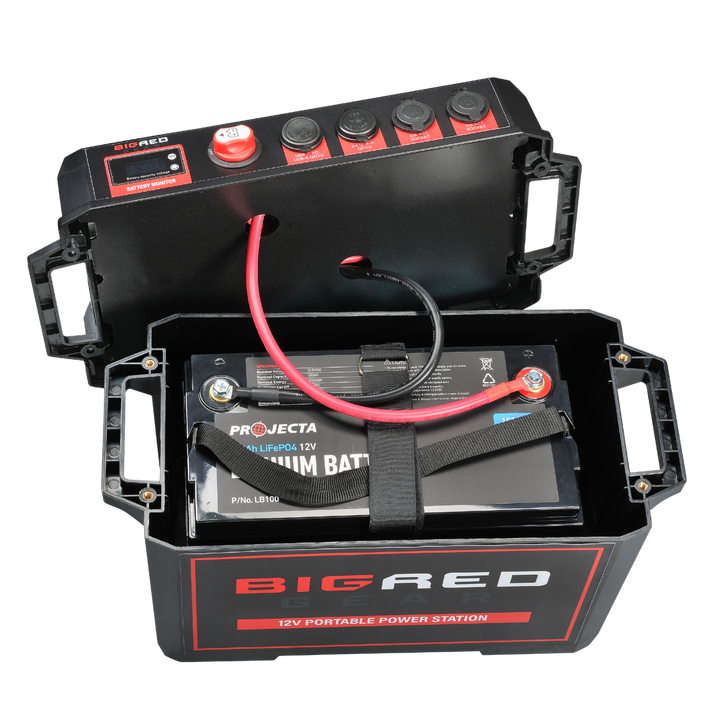

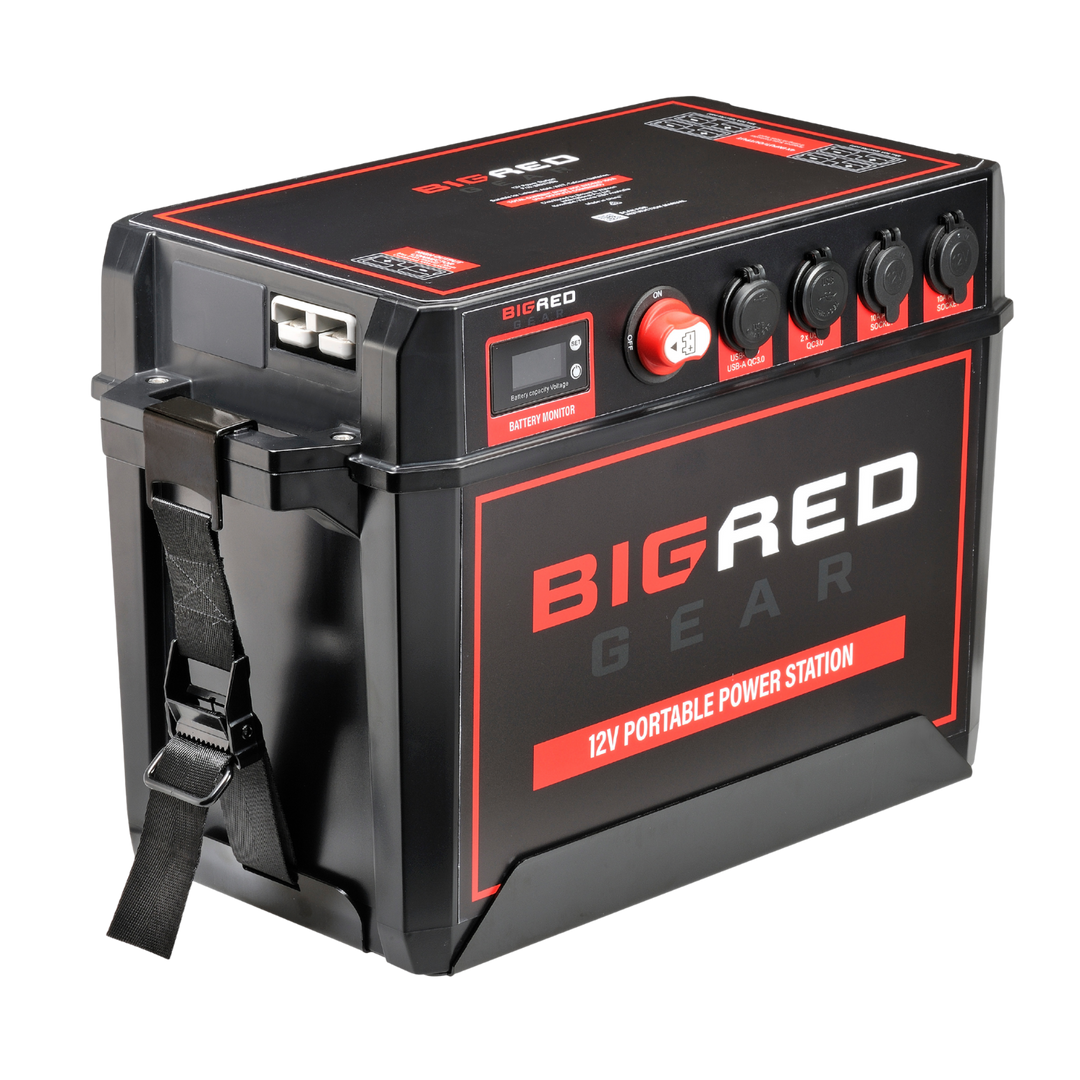

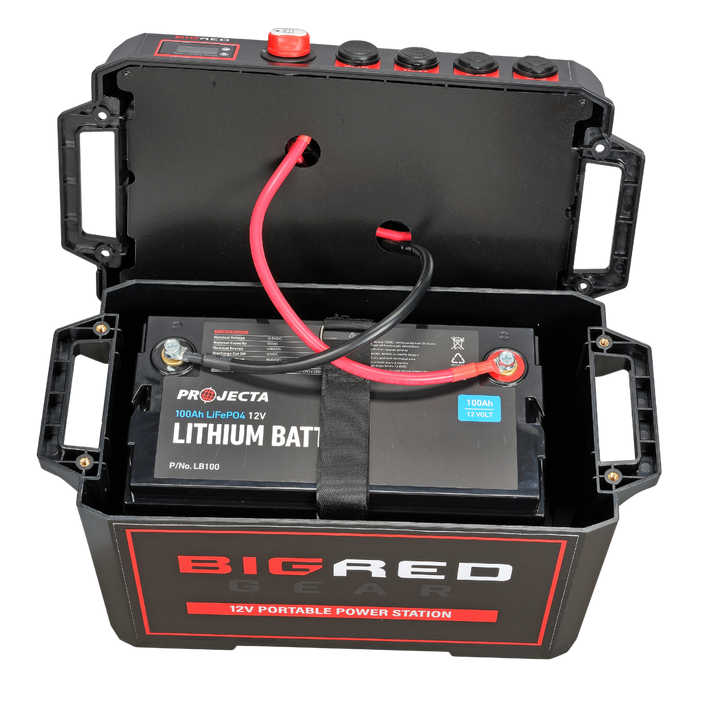

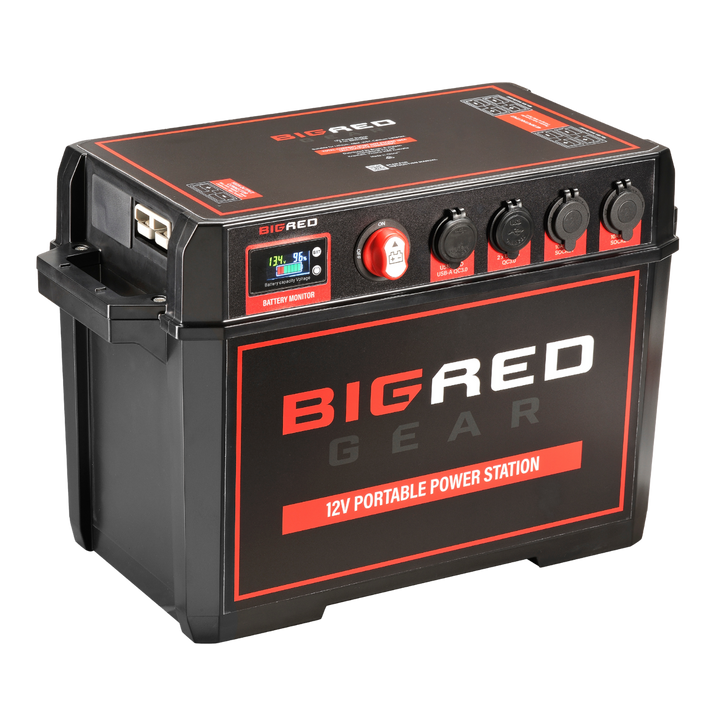

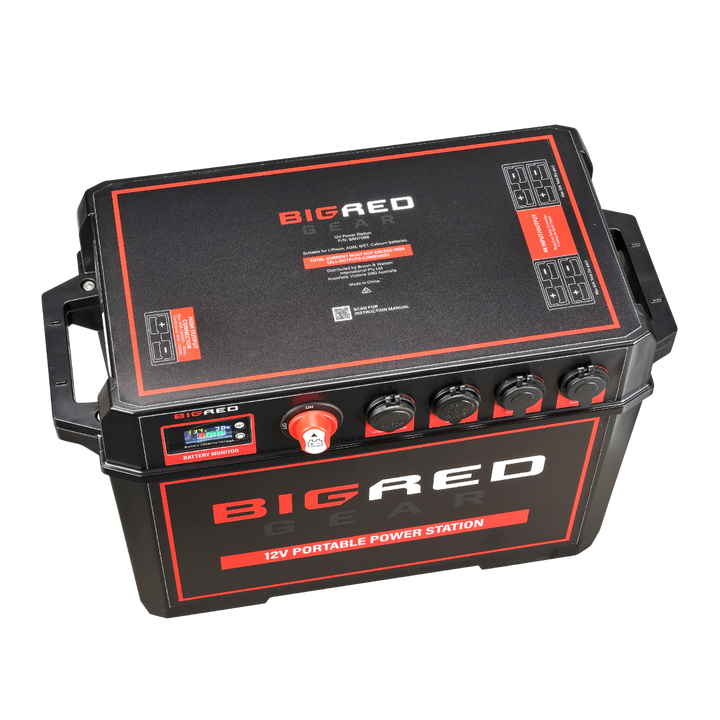

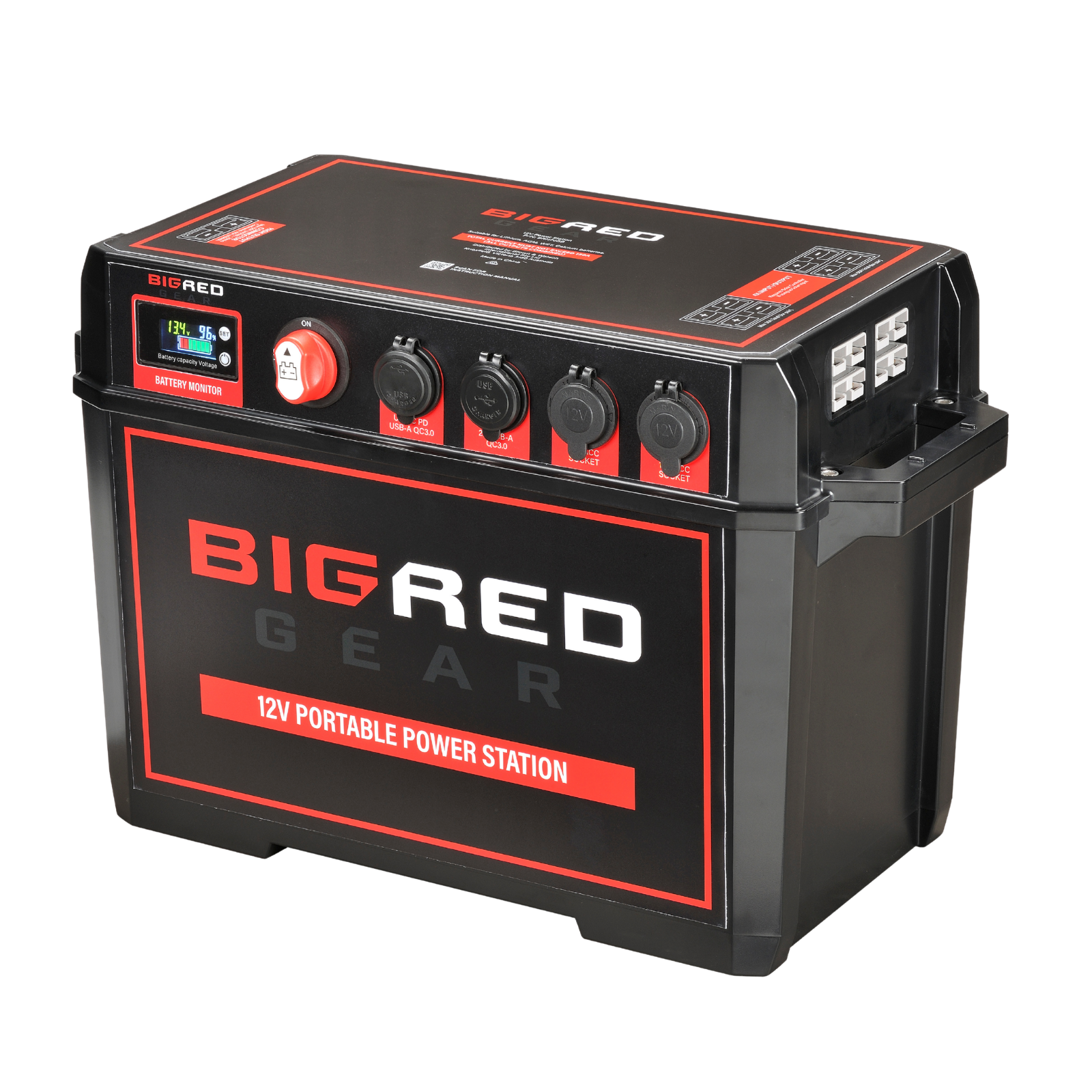

Build a secure, portable 12V power setup around a compatible N70-size auxiliary battery. The Battery Power Station combines battery monitoring, heavy-duty power distribution, accessory sockets and fast USB charging in a durable ABS housing for touring, work vehicles, caravans and portable power.

Features

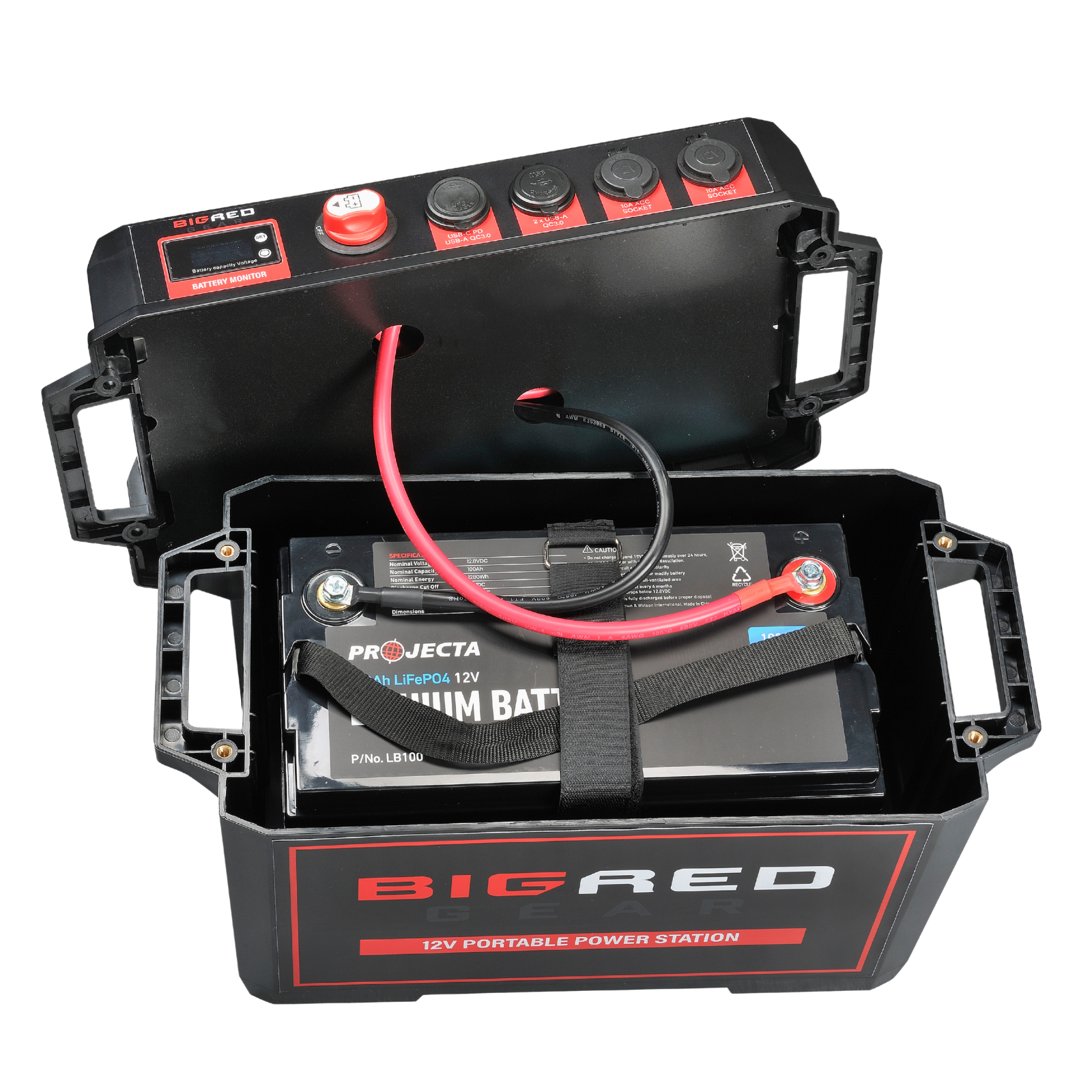

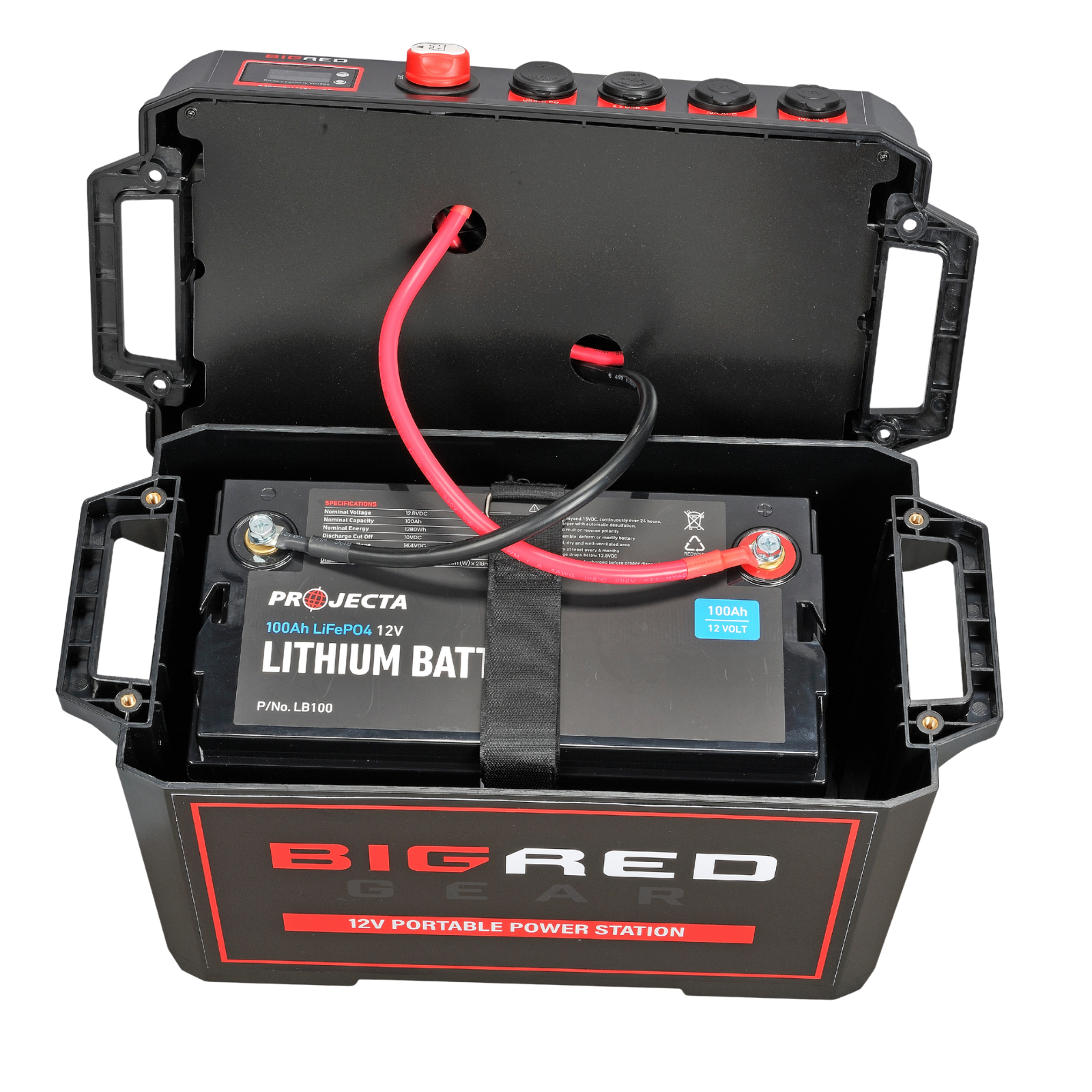

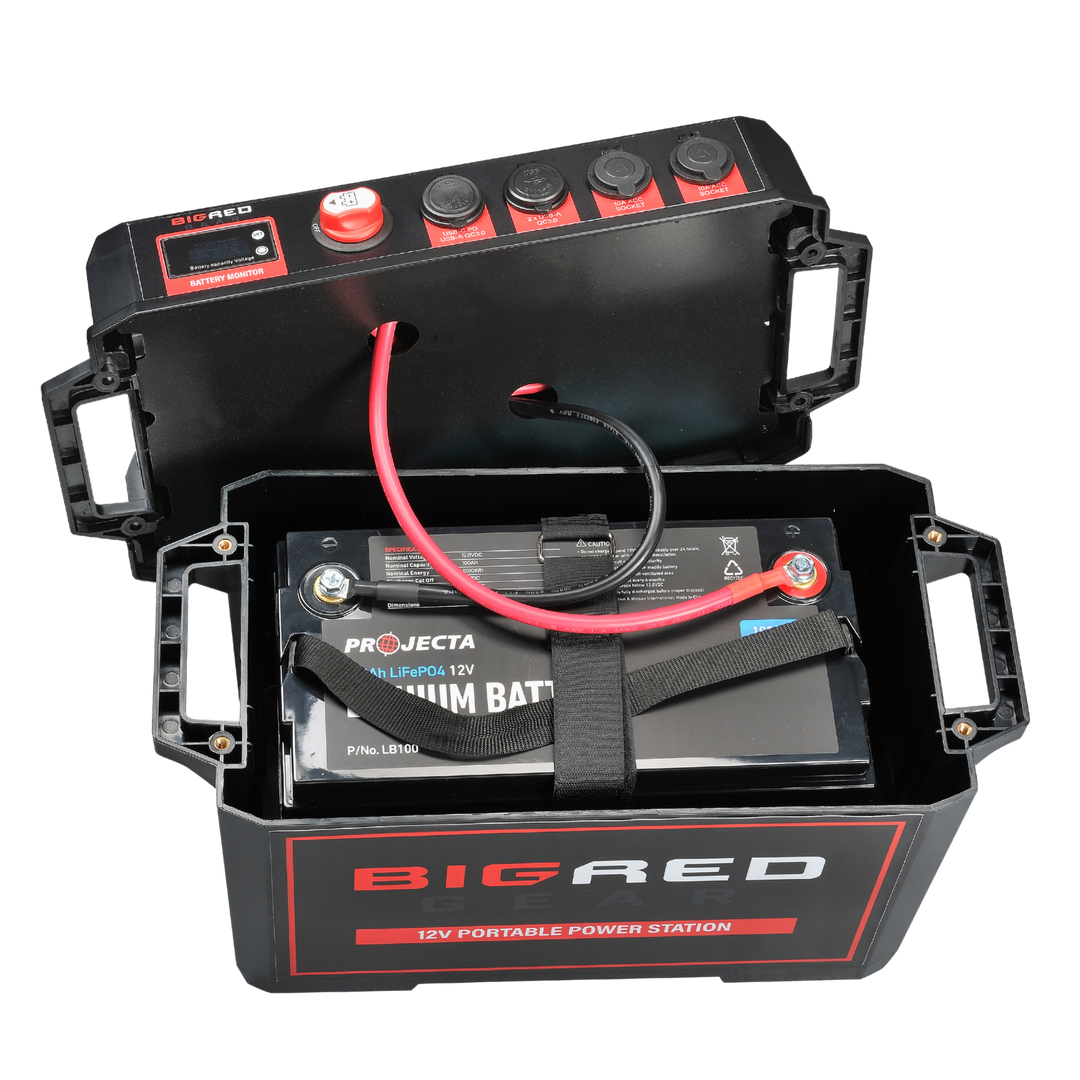

  • Suits N70-size 12V batteries up to 365 x 185 x 240 mm
  • Compatible with lead-acid and lithium batteries

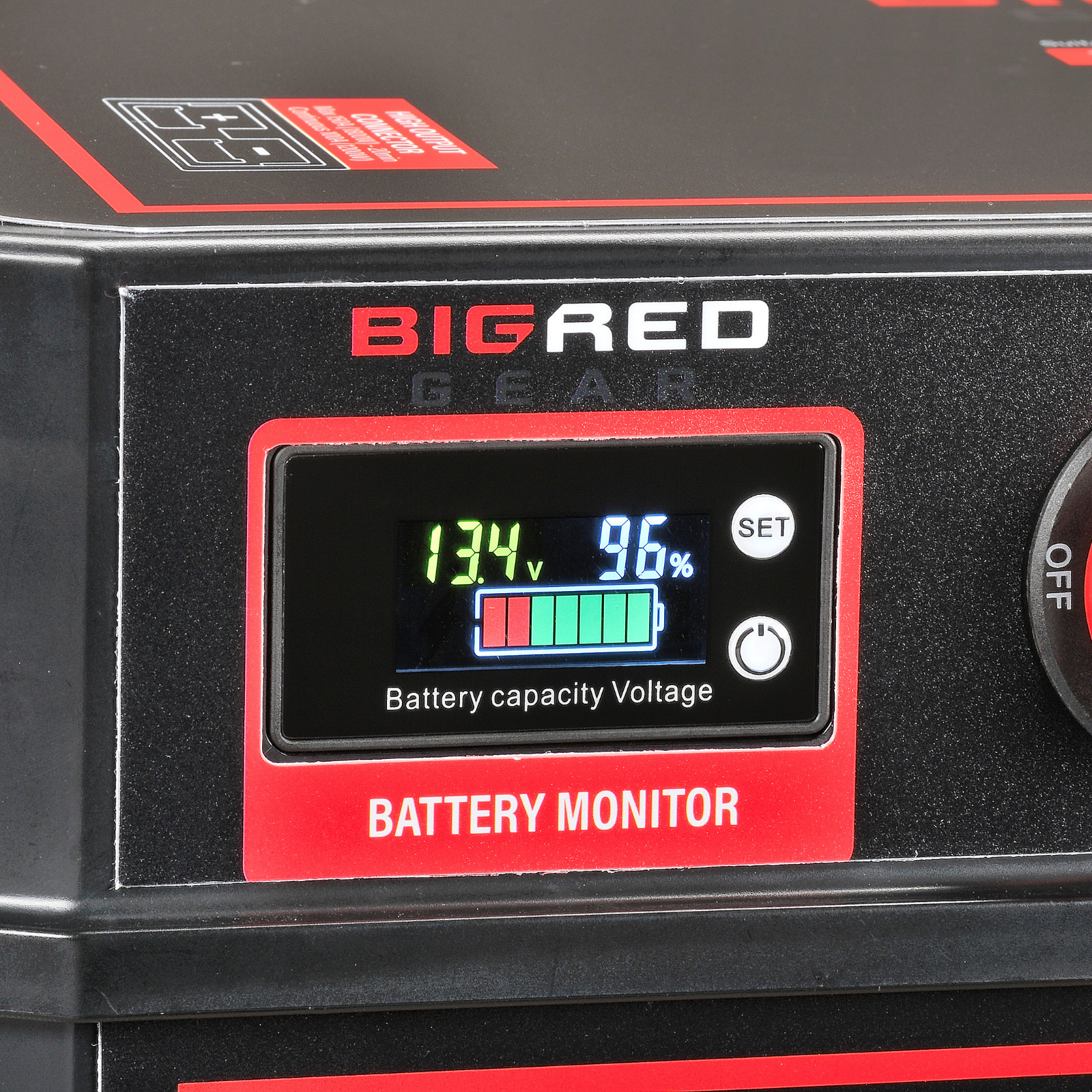

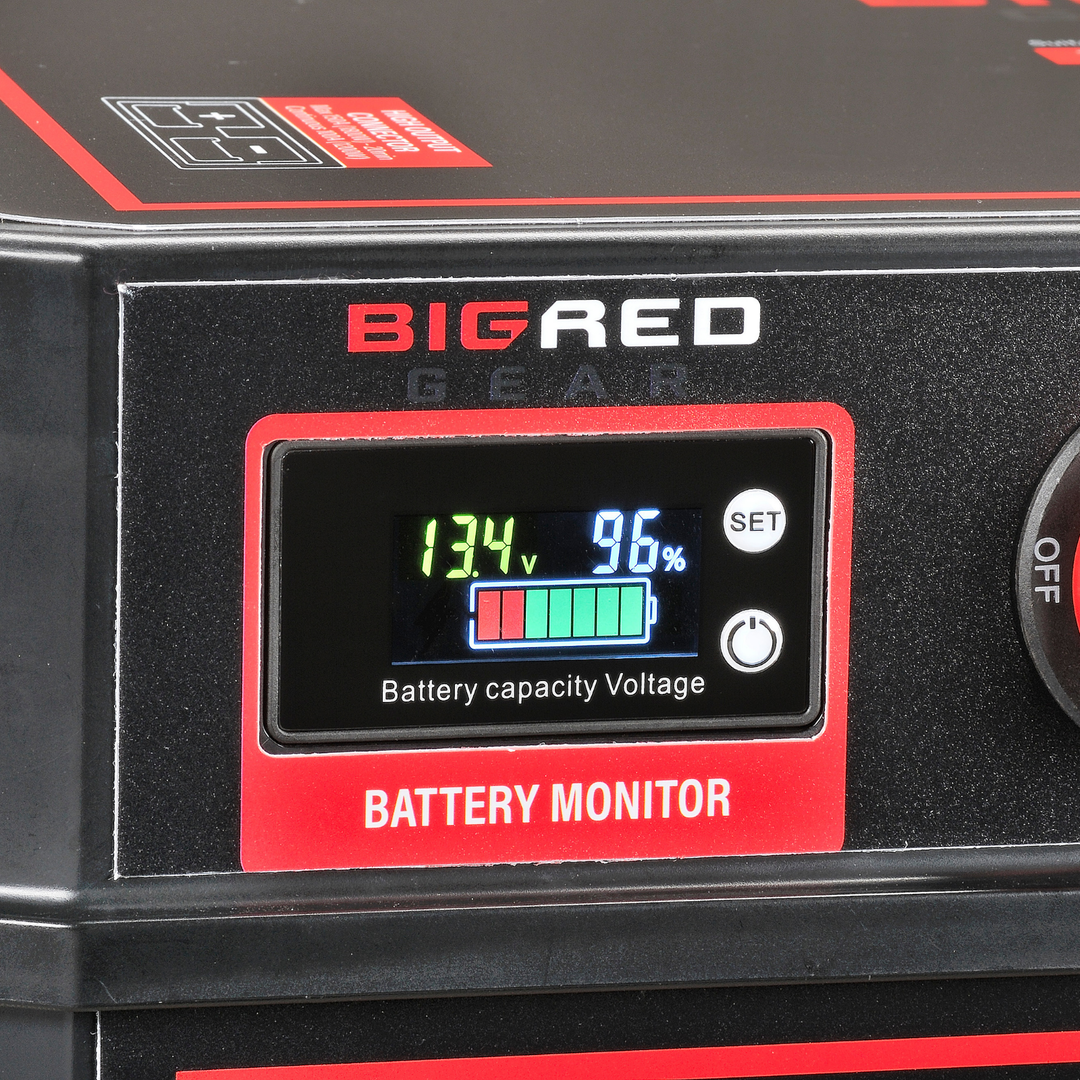

  • Integrated LCD voltage and state-of-charge monitor
  • Heavy-duty master isolation switch

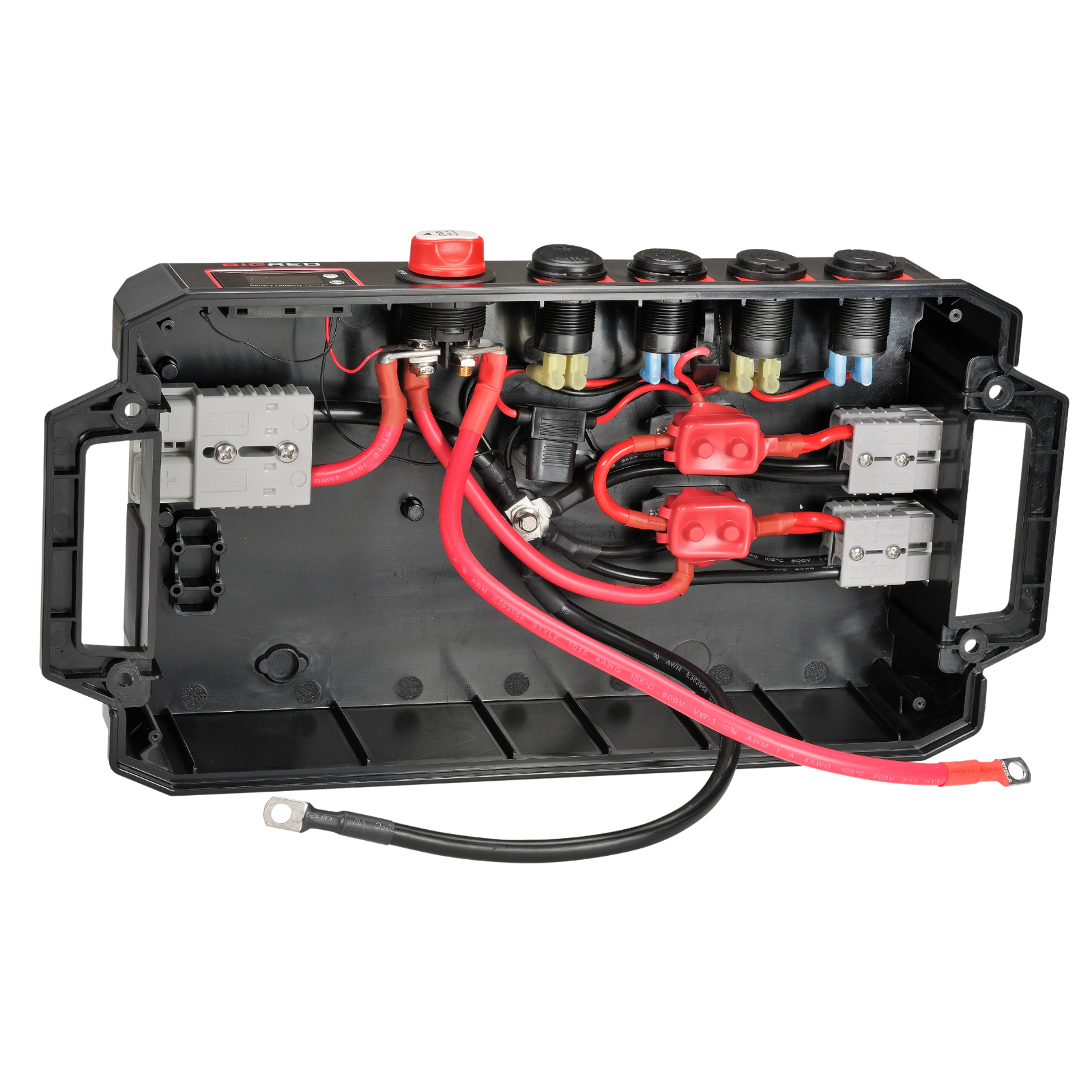

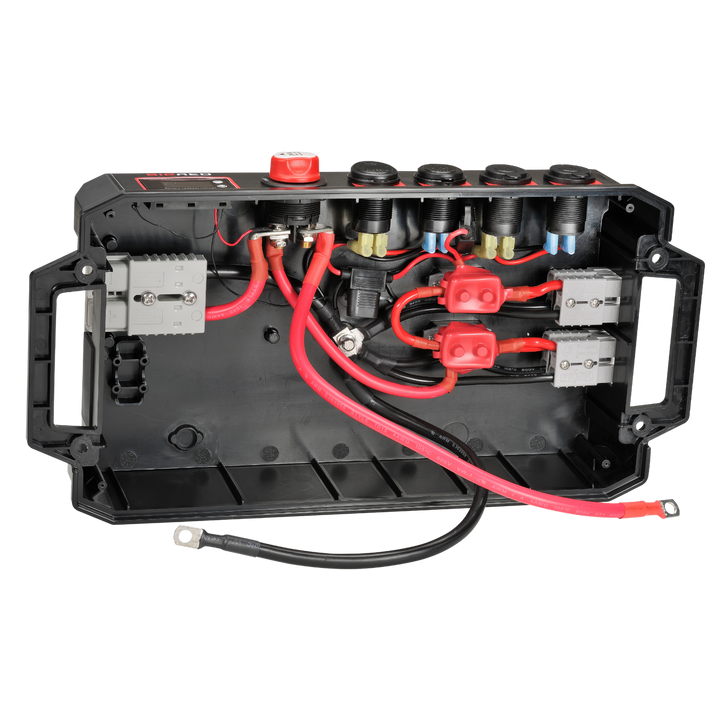

  • Four 50A heavy-duty connectors and one 175A high-current connector
  • Two 10A accessory sockets
  • Three USB-A QC3.0 ports and one USB-C PD port
  • Built-in carry handles and durable ABS construction
  • Three-year warranty
  • Optional BRN70BBT mounting tray available for a secured installation

TECHNICAL SPECIFICATIONS

SpecificationsBRN70BB
Battery compatibility12V lead-acid and lithium; N70 size
175A heavy-duty connector150A maximum for 20 minutes / 100A continuous; 1800W / 1200W
50A heavy-duty connectors4; maximum 50A total per side, fuse protected
Accessory sockets2 x 10A; 20A fuse protected
USB-A3 x QC3.0; up to 3A per port with built-in protection
USB-C PD1; 5V 3A / 9V 2A / 12V 1.5A with built-in protection
DisplayLCD; operating current under 15mA
Low-voltage alarm11.5V default

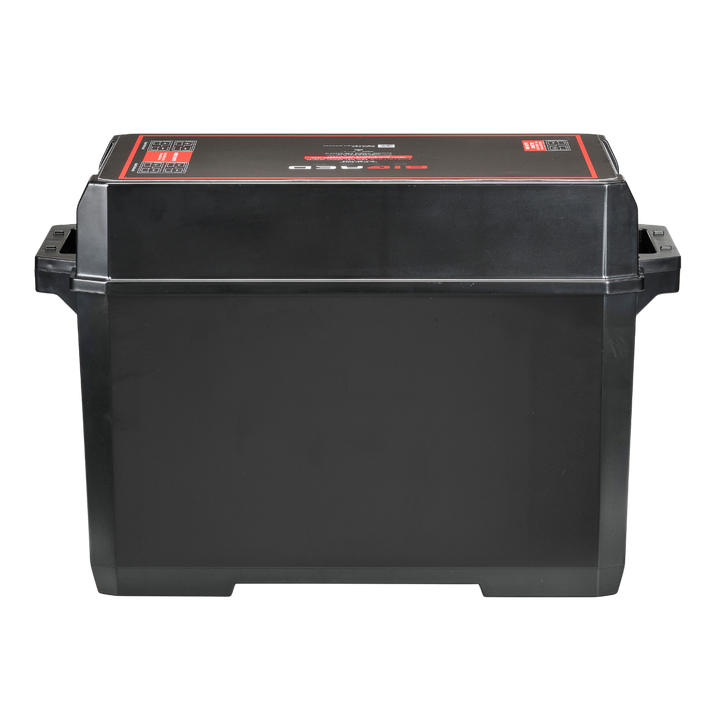

External dimensions480 x 220 x 320 mm
Maximum battery dimensions365 x 185 x 240 mm
MaterialABS
Weight excluding battery3.7 kg
Operating temperature-20°C to 60°C
ComplianceEMC certified
Maximum combined current150A across all outputs
Warranty3 years

What's in the box

BRN70BB 12V Power Station

  • 4 x 50A heavy-duty connectors
  • 1 x 175A heavy-duty connector
  • 2 x 10A accessory sockets
  • 3 x USB-A QC3.0 sockets
  • 1 x USB-C PD port
  • Master switch for ON/OFF operation
  • LCD voltmeter display

FAQs

A compatible 12V N70-size lead-acid or lithium battery up to 365 x 185 x 240 mm.

No. Use it in sheltered conditions, keep it out of rain and never clean it with a high-pressure washer.

Yes, within the stated limits: up to 1800W / 150A for 20 minutes, or 1200W / 100A continuously, using correctly rated cabling.

Use the optional BRN70BBT mounting tray and straps to fasten the power station while retaining quick removal for portable use.
