- Real-time voltage (V), current (A), power (W), amp-hours (Ah), temperature (°C) and state of charge (%) display
- High-accuracy external 500A current shunt
- Net current measurement (charge minus load) when charging and discharging occur simultaneously
- Adjustable threshold alarms: over-voltage, under-voltage, over-current, over-temperature
- User-settable battery capacity (Ah) with calibration at 0% and 100%
- ‘IN’ / ‘OUT’ indicators for charge/discharge direction
- Battery icon indicating charge/discharge status
- Supports 12V, 24V, 36V and 48V systems
- Audible alarm with mute via SET button
- Low standby consumption (<20mA)

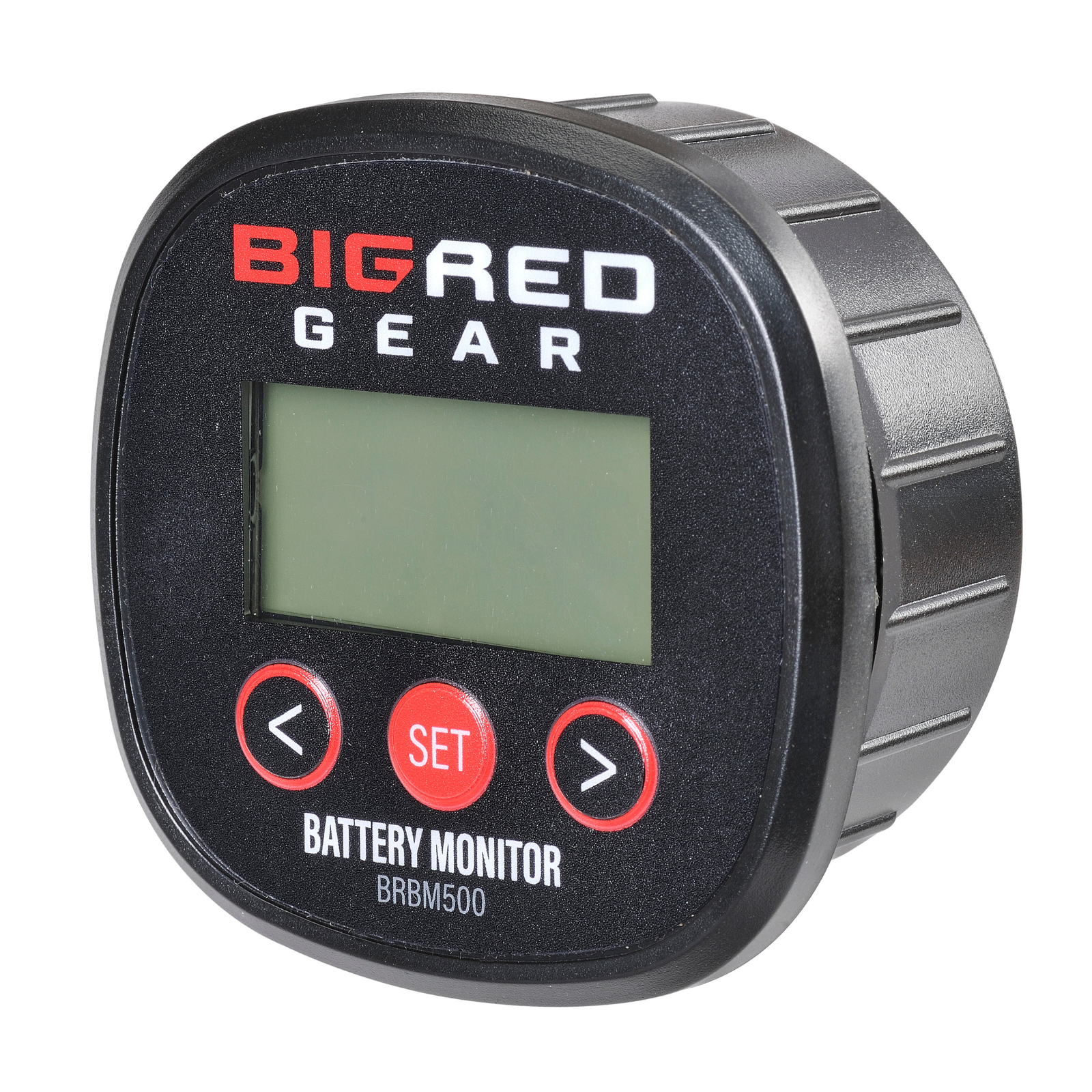

- Two mounting options: surface mount (bracket) or flush mount (Ø55 mm cut-out)
- Voltage display range 8V to 100V
- 2-year warranty
Technical Specifications
| Specifications | BRBM500 |
|---|---|
| System Voltage | 12V / 24V / 36V / 48V DC |
| Voltage Display Range | 8V – 100V |
| Shunt Rating | 500A (External) |
| Standby Current | <20mA |
| Display | LCD (V, A, W, Ah, °C, %, IN/OUT) |
| Adjustable Alarms | Over/Under-Voltage, Over-Current, Over-Temperature |
| Audible Alarm Pattern | 0.5s on / 0.5s off |
| Display Unit Dimensions | 74.8 × 74.8 × 40.8 mm |
| Flush Mount Cut-Out | Ø55 mm |
| Shunt Dimensions | 85.0 × 42.0 × 37.8 mm |
| Mounting | Surface Bracket or Flush Mount |
| Warranty | 2 Years |
What you get

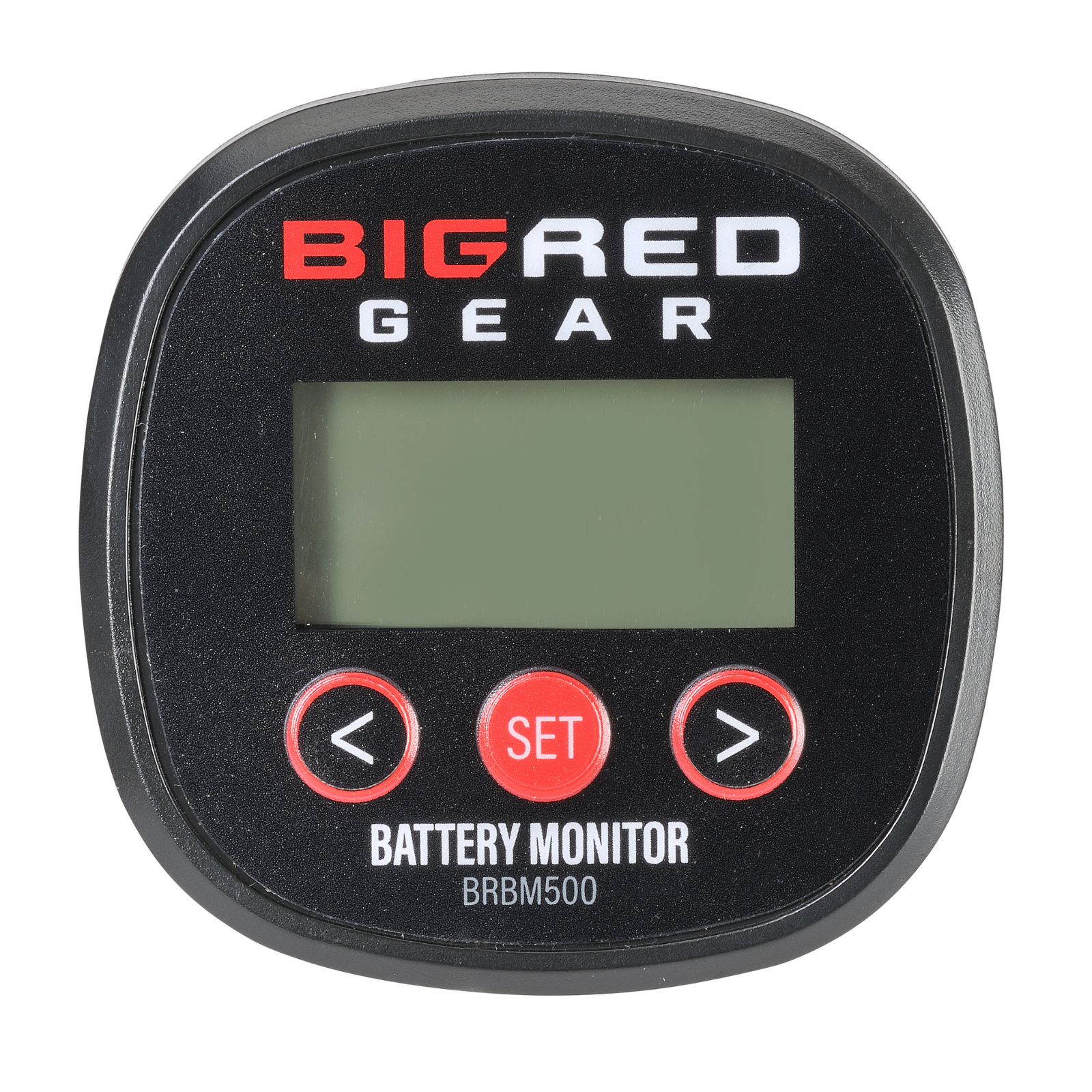

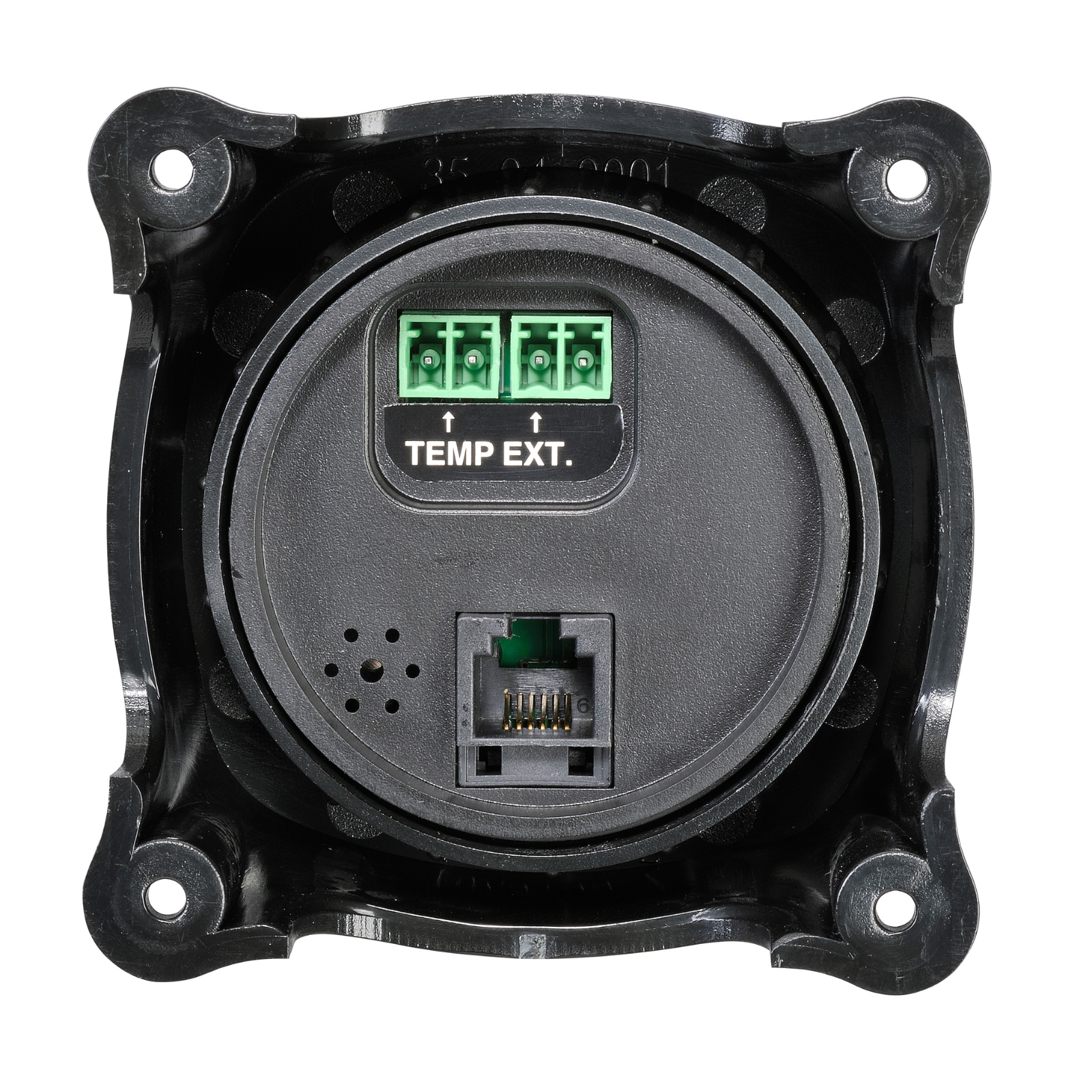

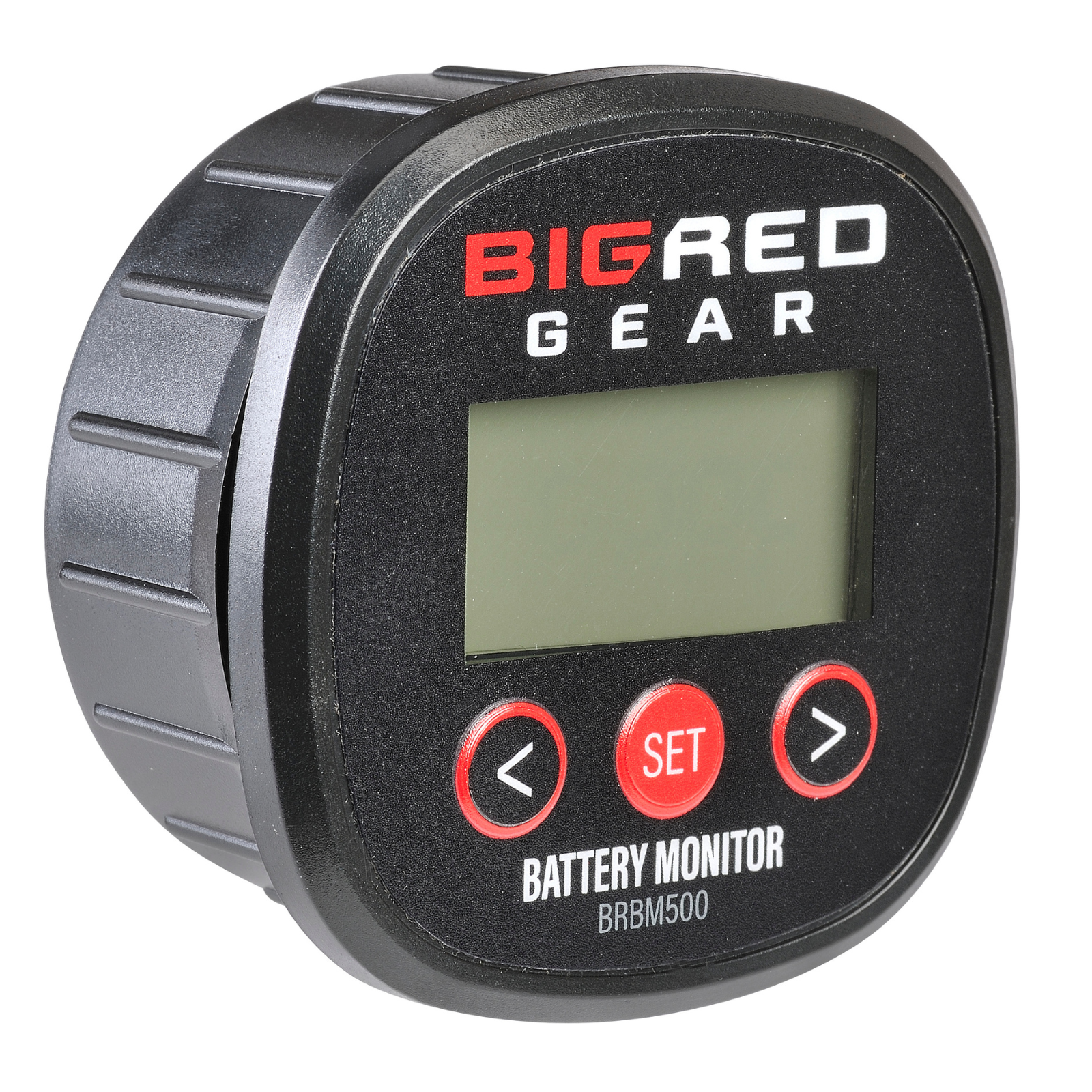

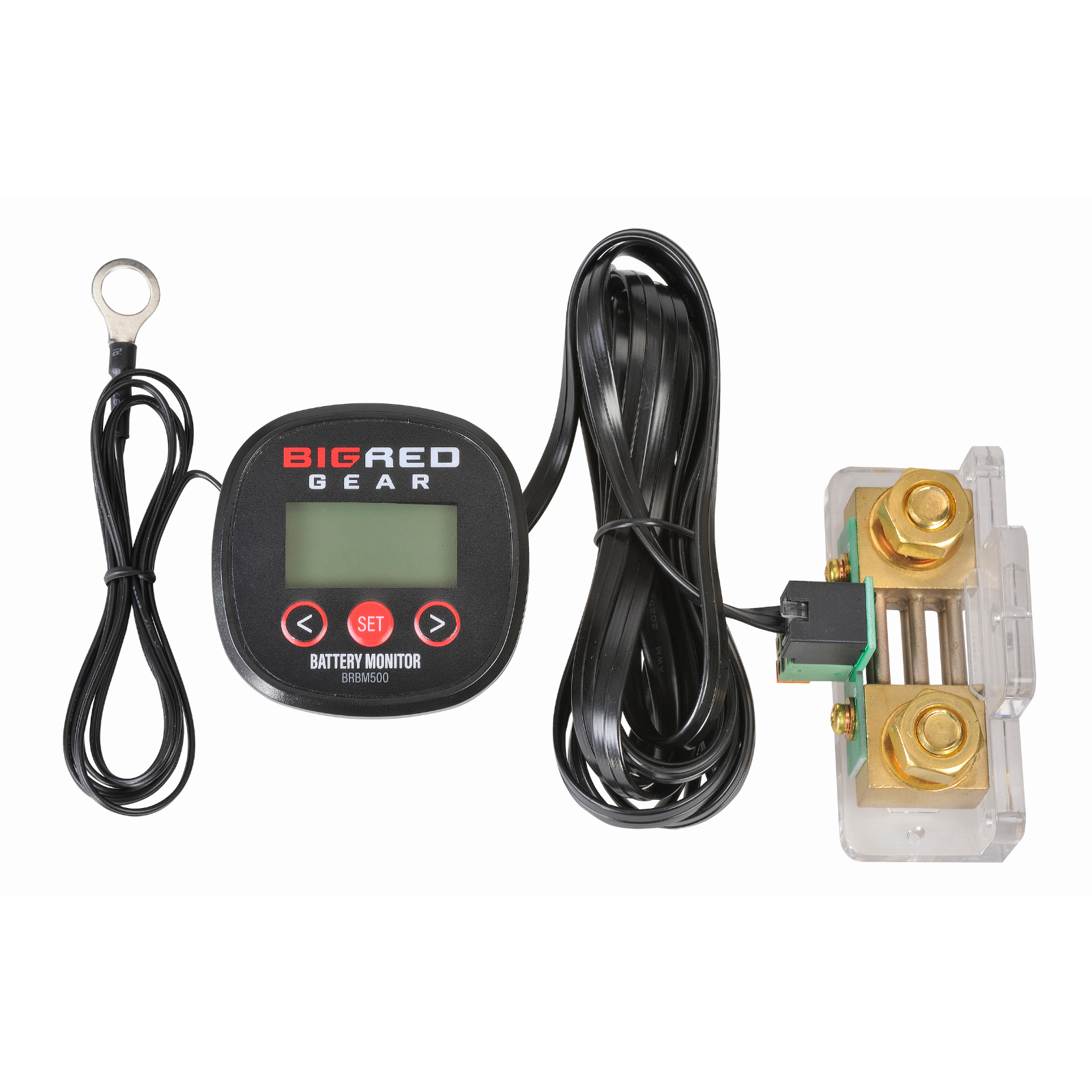

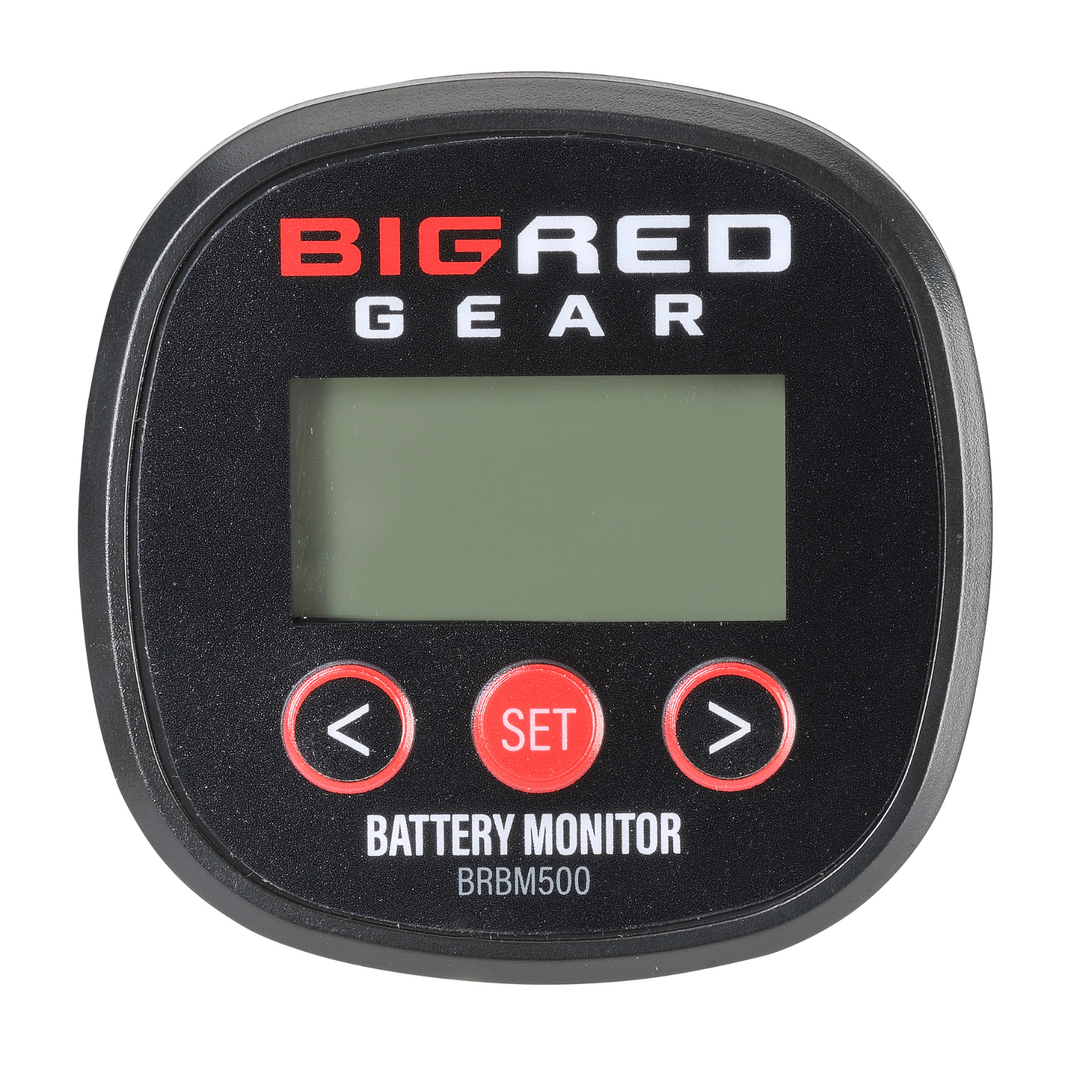

500A Battery Monitor with Shunt 12–48V

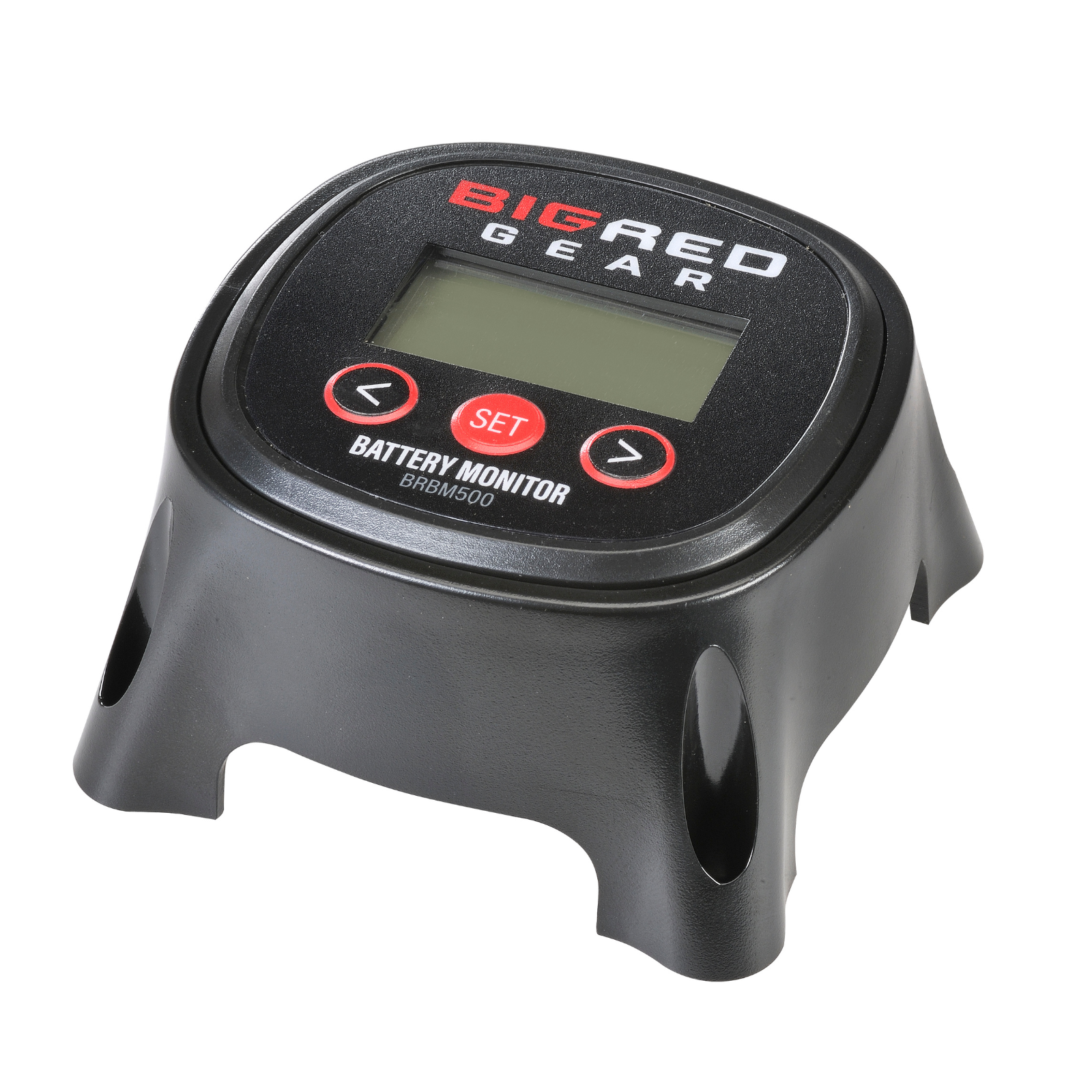

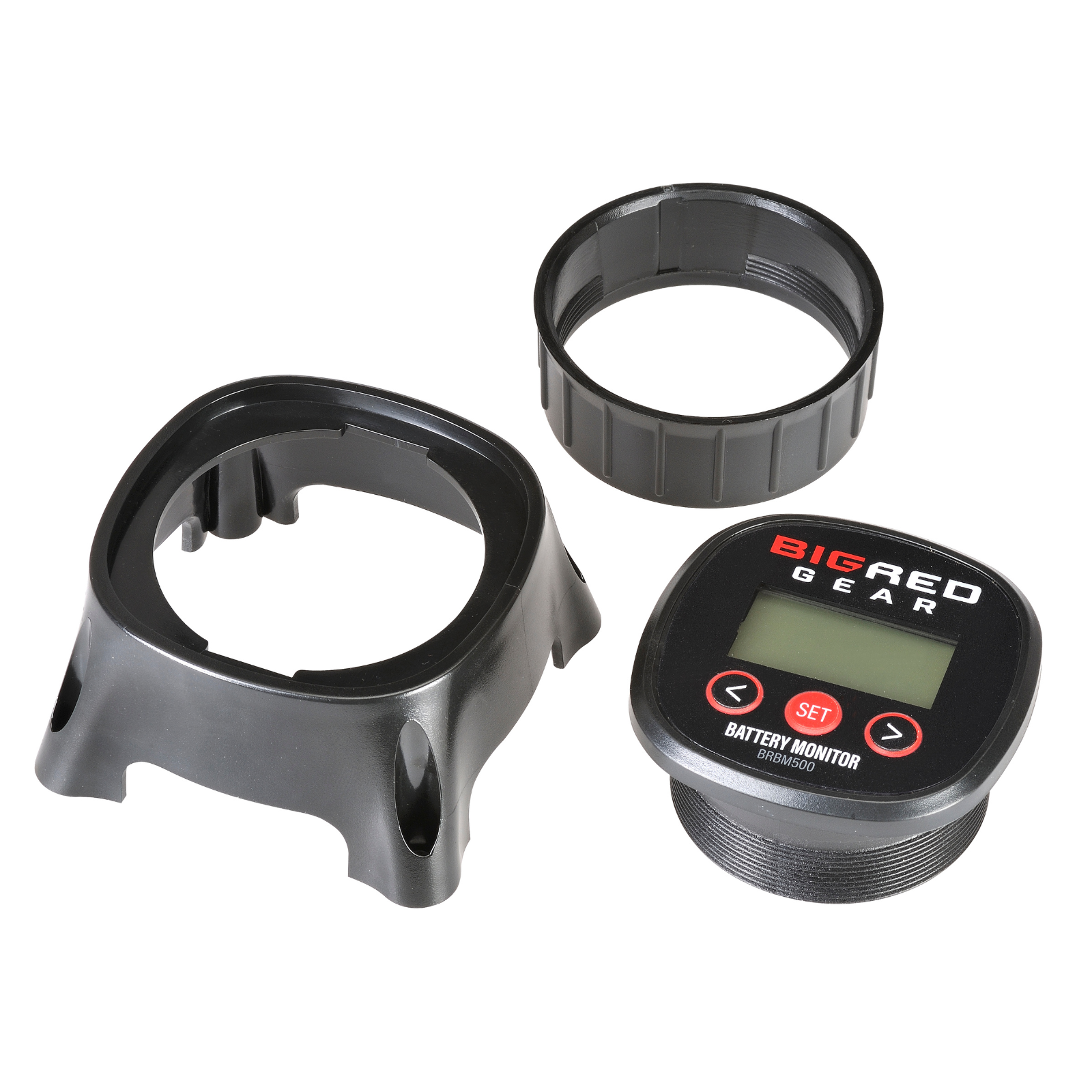

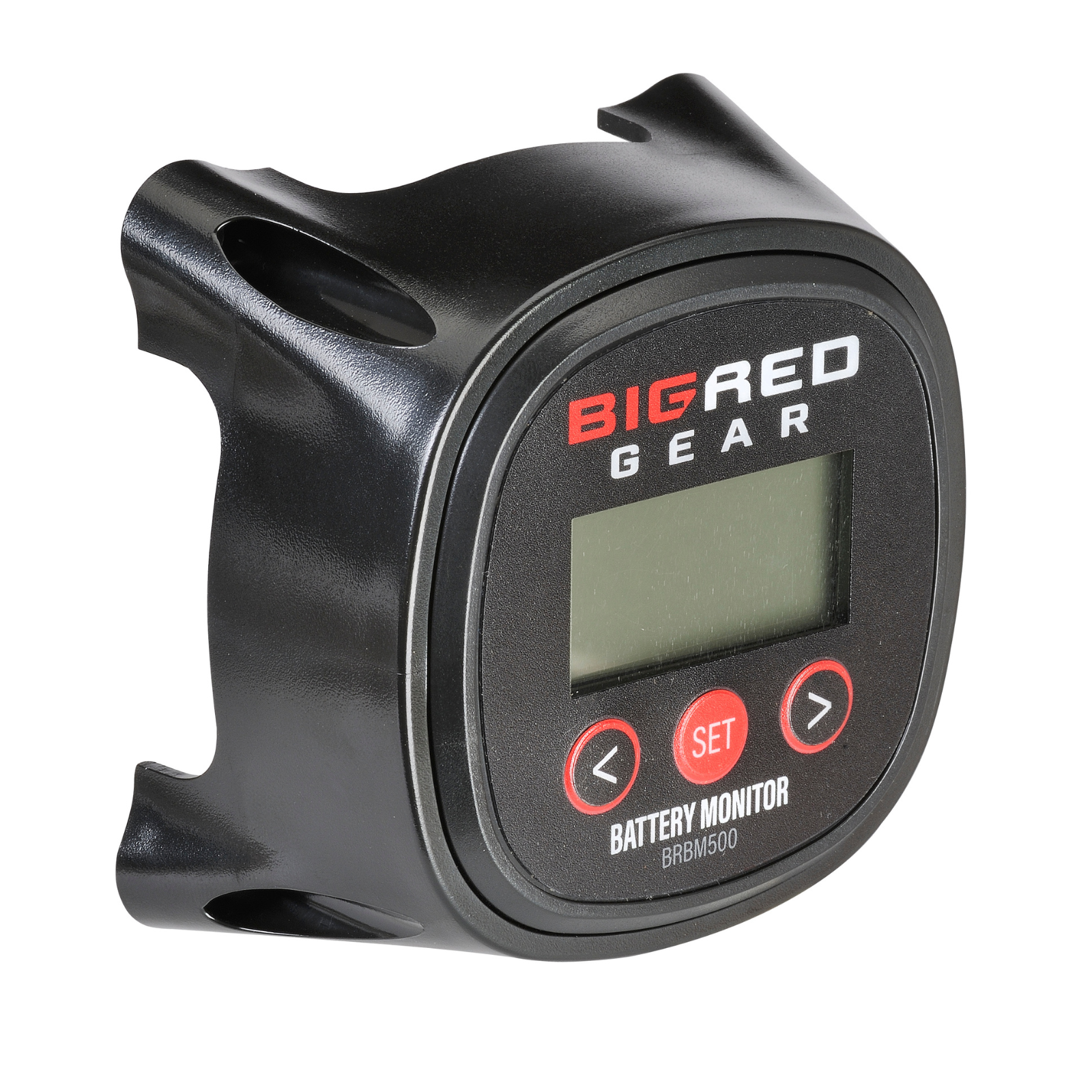

- 1× BRBM500 LCD display unit (with surface-mount bracket pre-assembled)

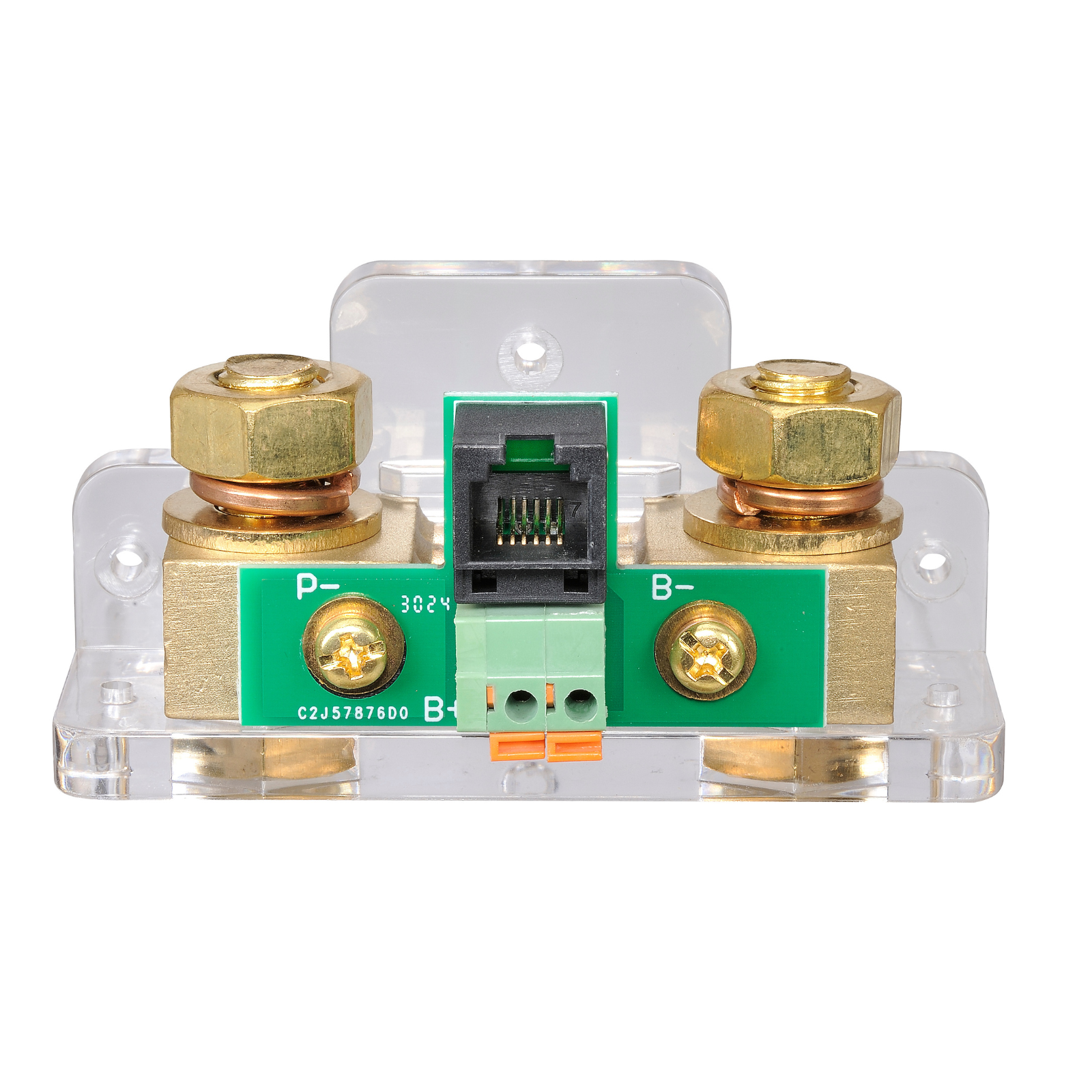

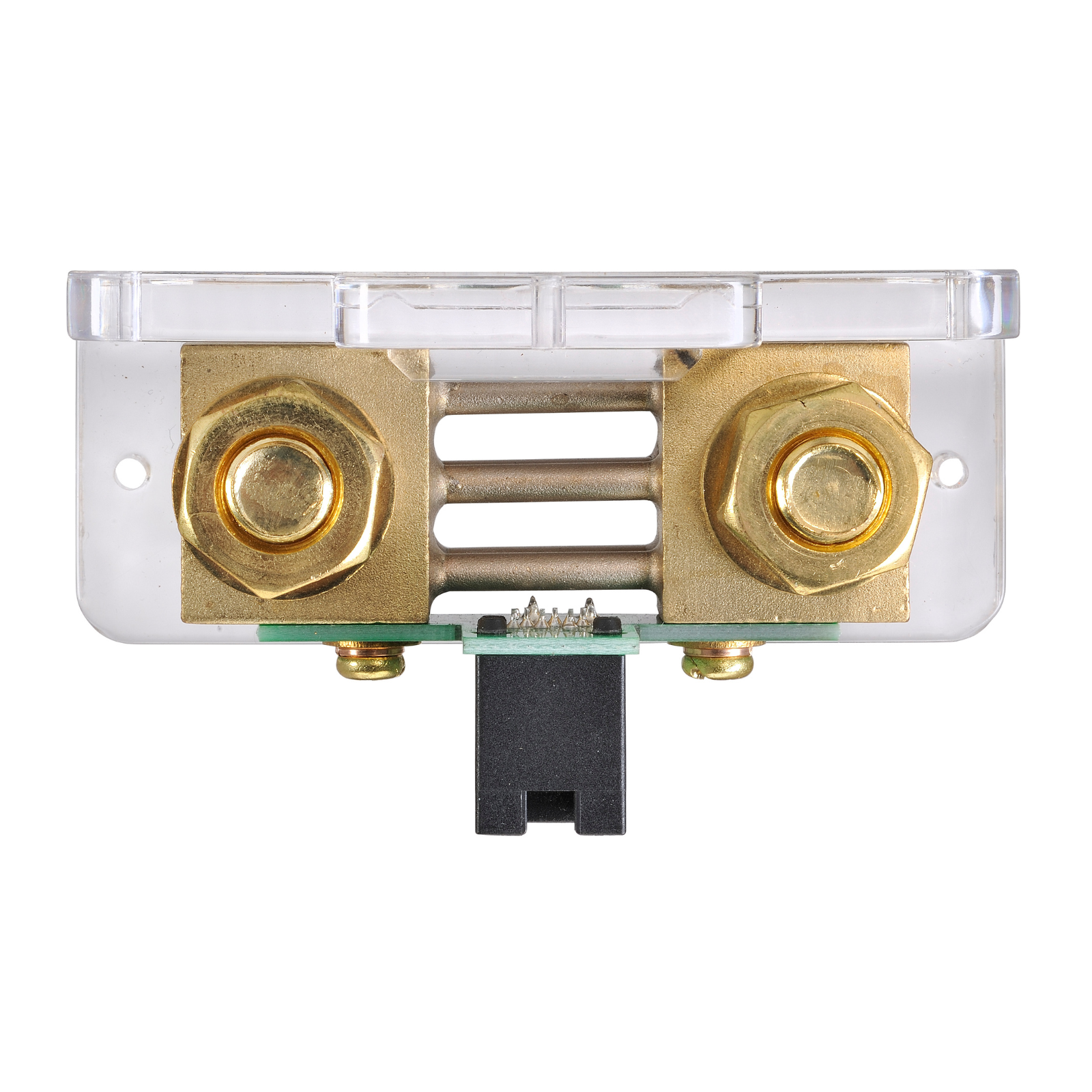

- 1× 500A external shunt module

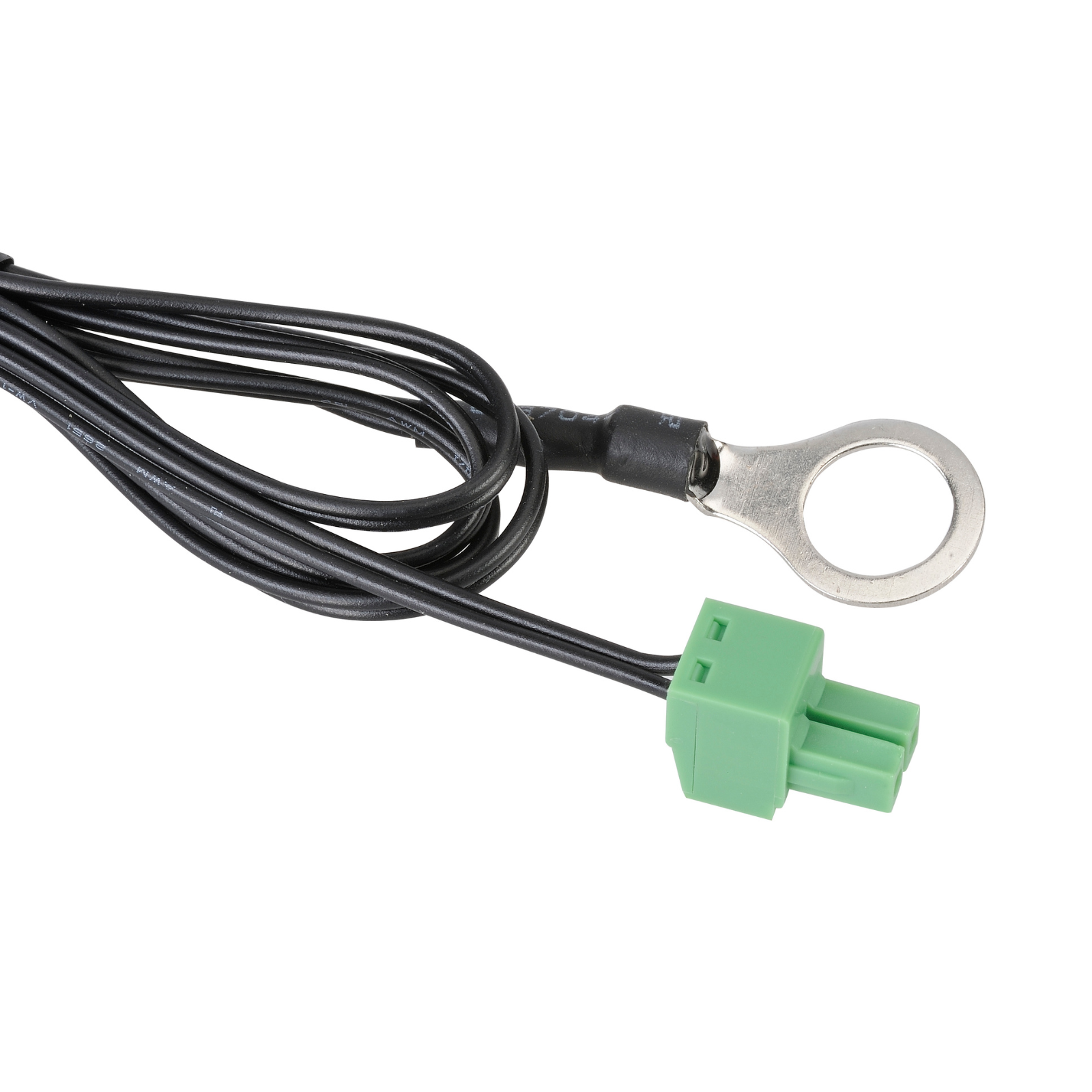

- 1× Battery temperature sensor with ring terminal

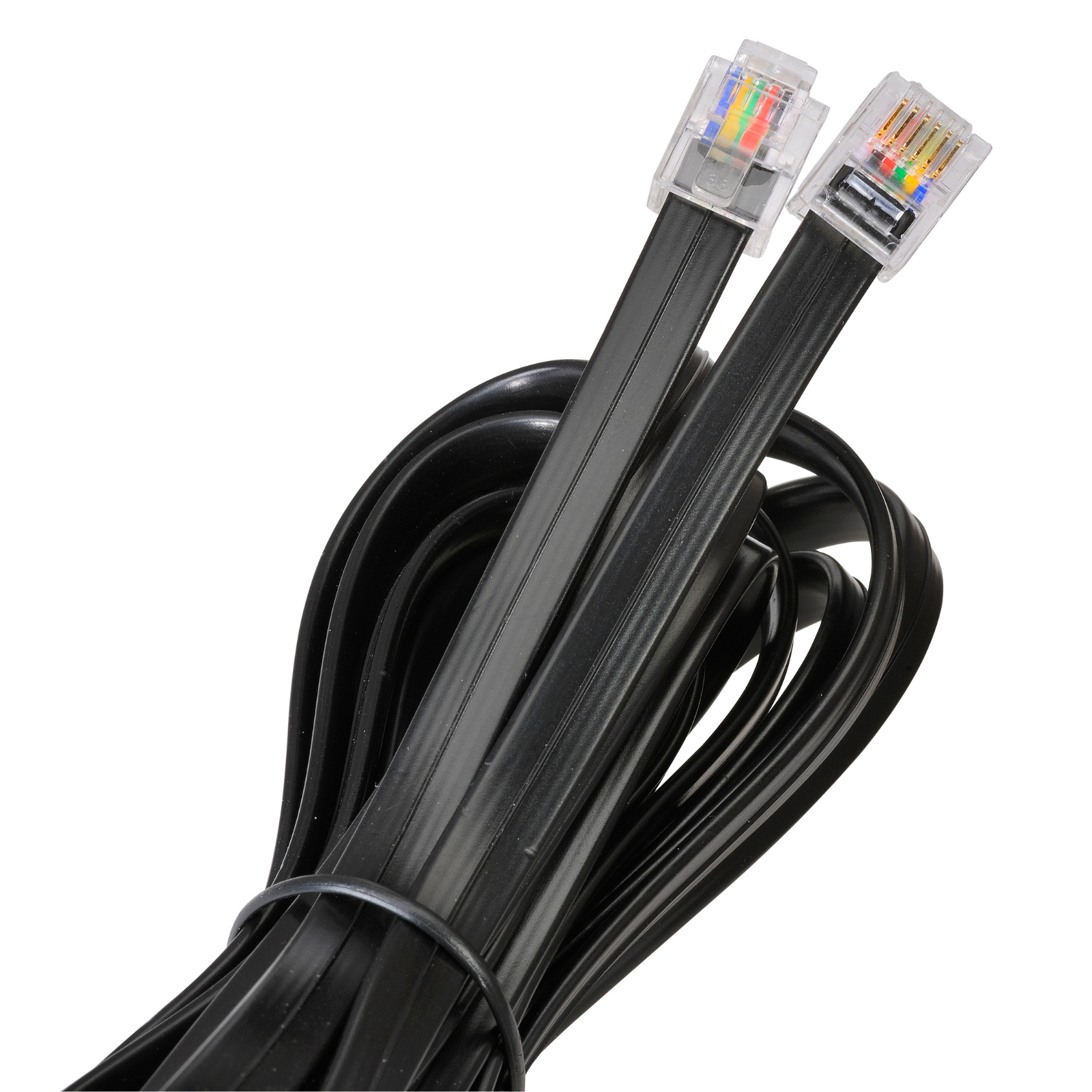

- 1× Shielded communication cable (display ↔ shunt)
- 4× Mounting screws
- Product instruction manual
FAQs
12V, 24V, 36V and 48V DC systems, with a voltage display range of 8V to 100V.
Yes - the Ah capacity must be set during initial installation as the monitor doesn't auto-detect it. It's also recommended to calibrate 0% (battery fully discharged) and 100% (battery fully charged) so the percentage reading is accurate.
The display shows the net current - charge current minus load.
It should be installed by a competent person familiar with DC electrical systems. Always disconnect the battery before wiring and fit an appropriately rated fuse close to the battery positive.
Press the SET button - this mutes the audible alarm and returns the monitor to normal operation.
Surface mount using the supplied bracket, or flush mount via a Ø55 mm hole cut in the mounting surface.
