BR9022

Regular price $99.00 Save Liquid error (product-template line 120): Computation results in '-Infinity'%
/

Only 181 items in stock!

If you’re looking for high performance at a great price, look no further than our 7” inch BRG LED driving lights equipped with 18x high-output Osram LEDs. These lights use precisely formed and aligned reflectors to shape crisp white beams to illuminate the night. Two lamps will produce a throw of up to 702 metres at 1 lux.

Design elements achieve high performance and a sleek look. Mounted on black powder coated stainless steel brackets and fully sealed and rated to IP68 for dust and water ingress protection, our 7” inch BRG LED driving lights provide visual impact while protecting against the elements.

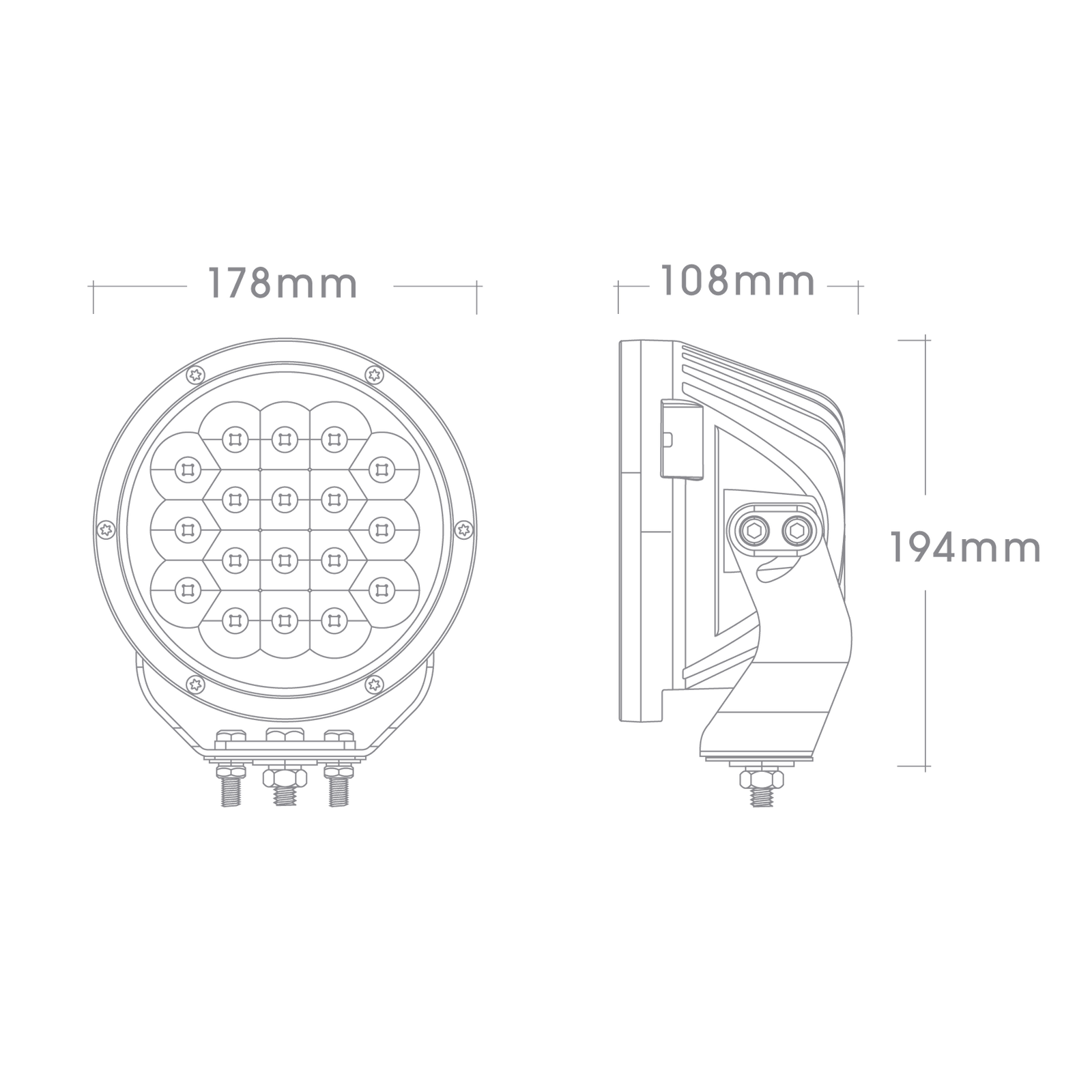

A compact light with high-output, the 7” inch BRG LED driving lights are perfectly suited for roo bars with limited space for forward lighting. Dimensions come in at 178mm wide, 194mm high and 108mm deep.

Features

  • High output 5W Osram LEDs produce a crisp, white light that we shape using precisely formed and aligned reflectors. This ensures an even distribution of light and perfectly formed spot beam for distance down the road.
  • 5700°K colour temperature LED’s blend the perfect balance of white light while retaining the best possible definition and Colour Rendering Index (CRI).
  • Our heavy duty stainless steel brackets are suitable for the rigours of off-road, 4WD tracks and have been finished in a durable black powder coat with white BR GEAR logos.
  • Each lamp includes our innovative rubber dampening system to help isolate the housing from the bracket and reduce vibration on the electronics.
  • We use a 3mm thick virtually unbreakable polycarbonate lens with hard coating for increased scratch resistance and protection from exposure to UV light.
  • Our lamps are also tested and complied to ECE R10 for Electro Magnetic Compatibility (EMC), meaning you should not have any problems interfering with sensitive equipment.
  • Each lamp also includes a clear see though polycarbonate cover for protection from stone spray and debris.
  • Fully sealed and tested to IP68 for dust and water ingress protection, meaning they are waterproof for up to 3m of submersion. Perfectly suited for river crossings.
VideoVideo

Beam Diagram

1 Lux at 702m (with two lamps)

Technical Specifications

SpecificationsBR9022
Wattage90W
Input Voltage
12/24V
Current Draw6A
LEDs (Osram)18 x 5W
Colour Temperature5700°K
EMCECE R10
IP RatingIP68
Raw Lumens9000
Effective Lumens6087
1 Lux Distance702m
Video

What you get

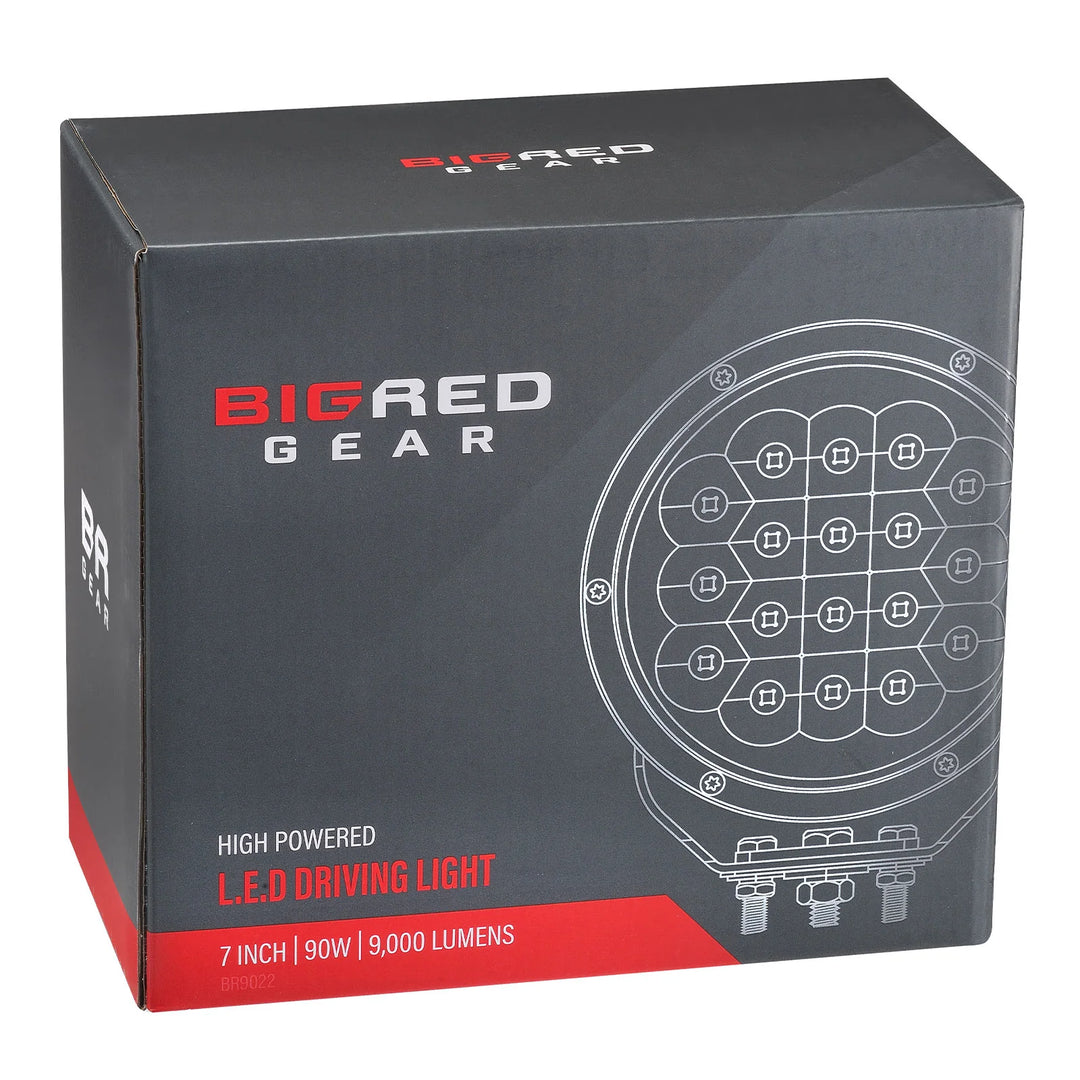

  • BR9022 7" LED Driving Light x1
  • Big Red Clear Cover
  • Stainless Steel Bolts, Nuts and Washers
  • Rubber Mounting Pad
  • Distribution Plate
  • 2 Position DT lead
  • Product Instructions
