5" Inch BRG LED Driving Light (each)

SKU BR9012

Regular price$95.00
/

New to the Big Red Gear lineup, say hello to the 5” inch BRG LED driving lights. Equipped with 9x high-output Osram LEDs, these driving lights produce volumes of light with a spot beam of up to 507 metres at 1 lux (with 2 lamps).

Ready for high illumination on tracks and river crossings, our 5” inch BRG LED driving lights are mounted on black powder coated stainless steel brackets and fully sealed and rated to IP68 for dust and water ingress protection.

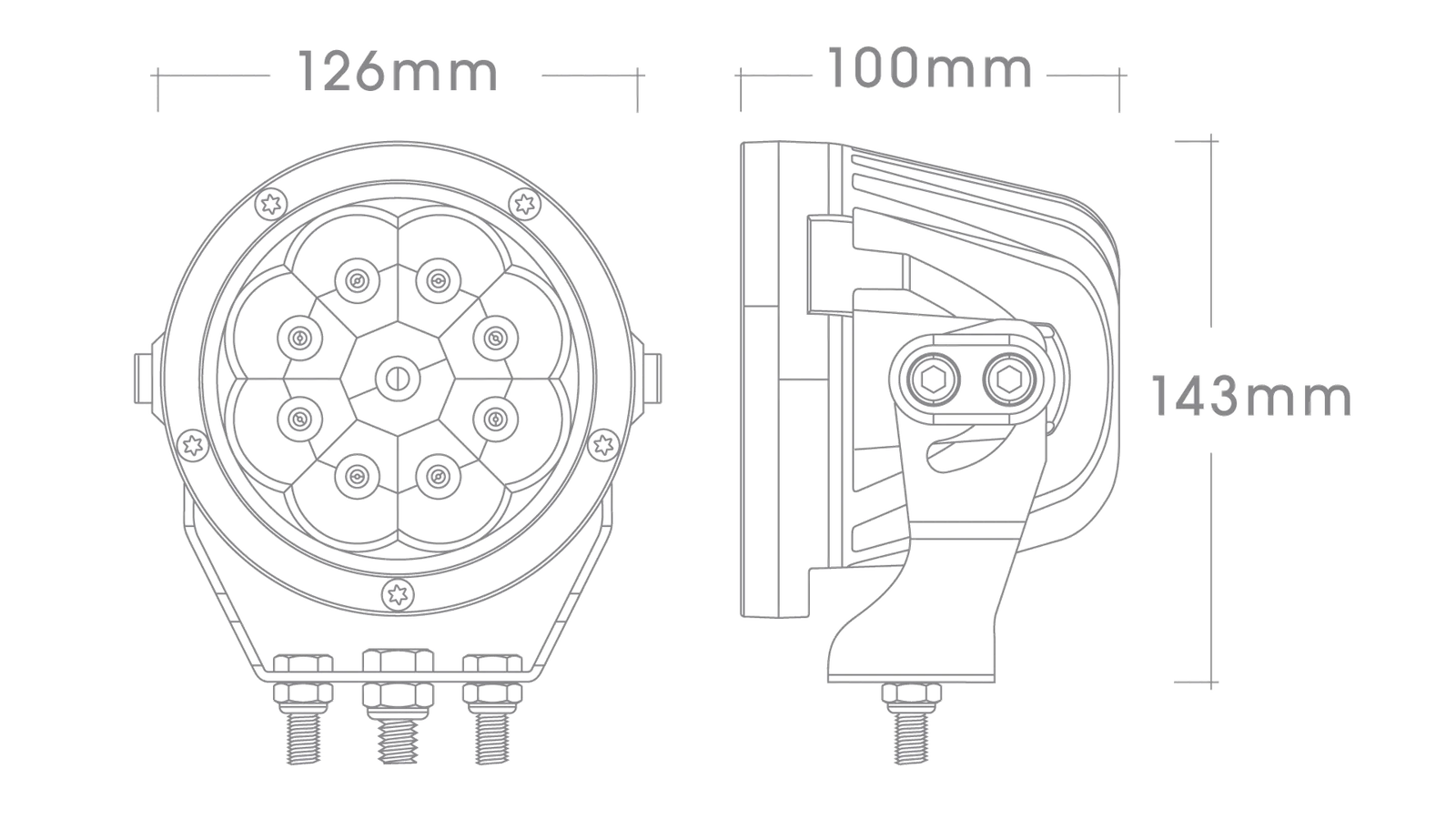

Sporting an SUV with a nudge bar? With compact dimensions of just 126mm wide, 143mm high and 100mm deep, our 5” inch BRG LED driving lights will provide the added illumination you need for endless getaways.

Features

  • High output 5W Osram LEDs produce a crisp, white light that we shape using precisely formed and aligned reflectors. This ensures an even distribution of light and perfectly formed spot beam for distance down the road.
  • 5700°K colour temperature LED’s blend the perfect balance of white light while retaining the best possible definition and Colour Rendering Index (CRI).

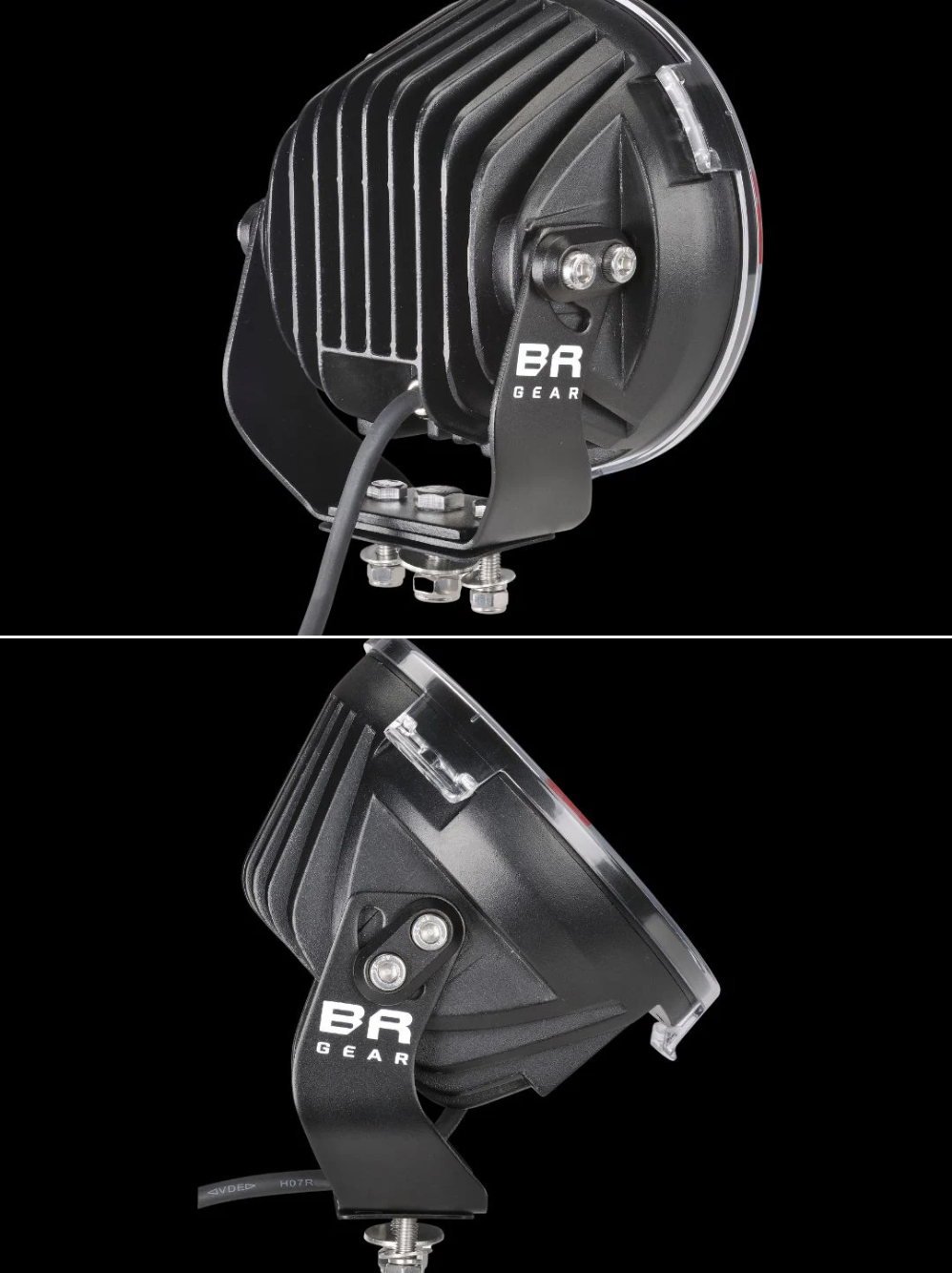

  • Our heavy duty stainless steel brackets are suitable for the rigours of off-road, 4WD tracks and have been finished in a durable black powder coat with white BR GEAR logos.
  • Each lamp includes our innovative rubber dampening system to help isolate the housing from the bracket and reduce vibration on the electronics.
  • We use a 3mm thick virtually unbreakable polycarbonate lens with hard coating for increased scratch resistance and protection from exposure to UV light.
  • Our lamps are also tested and complied to ECE R10 for Electro Magnetic Compatibility (EMC), meaning you should not have any problems interfering with sensitive equipment.
  • Each lamp also includes a clear see though polycarbonate cover for protection from stone spray and debris.
  • Fully sealed and tested to IP68 for dust and water ingress protection, meaning they are waterproof for up to 3m of submersion. Perfectly suited for river crossings.
VideoVideo

Beam Diagram

1 Lux at 507m (with two lamps)

Technical Specifications

SpecificationsBR9012
Input Voltage12/24V
Current Draw
3A
LEDs (Osram)9 x 5W
Colour Temperature5700K
EMCECE R10
IP RatingIP68
Raw Lumens4500
Effective Lumens3409
1 Lux Distance507m
Warranty3 Years
Weight1.4kg
Video

What you get

  • BR9012 5" Inch LED Driving Lights x1
  • Big Red Clear Cover
  • Stainless Steel Bolts, Nuts and Washers
  • Rubber Mounting Pad
  • Distribution Plate
  • 2 Position DT lead
  • Product Instructions
