Features
- Blacked out virtually unbreakable Polycarbonate lens protector NOTE: Remove blacked-out lens covers when using driving lights as they emit a non-approved green glow, only suitable for off-road use.
- High power Osram LEDs produce a natural white light (5700°K) close to daylight

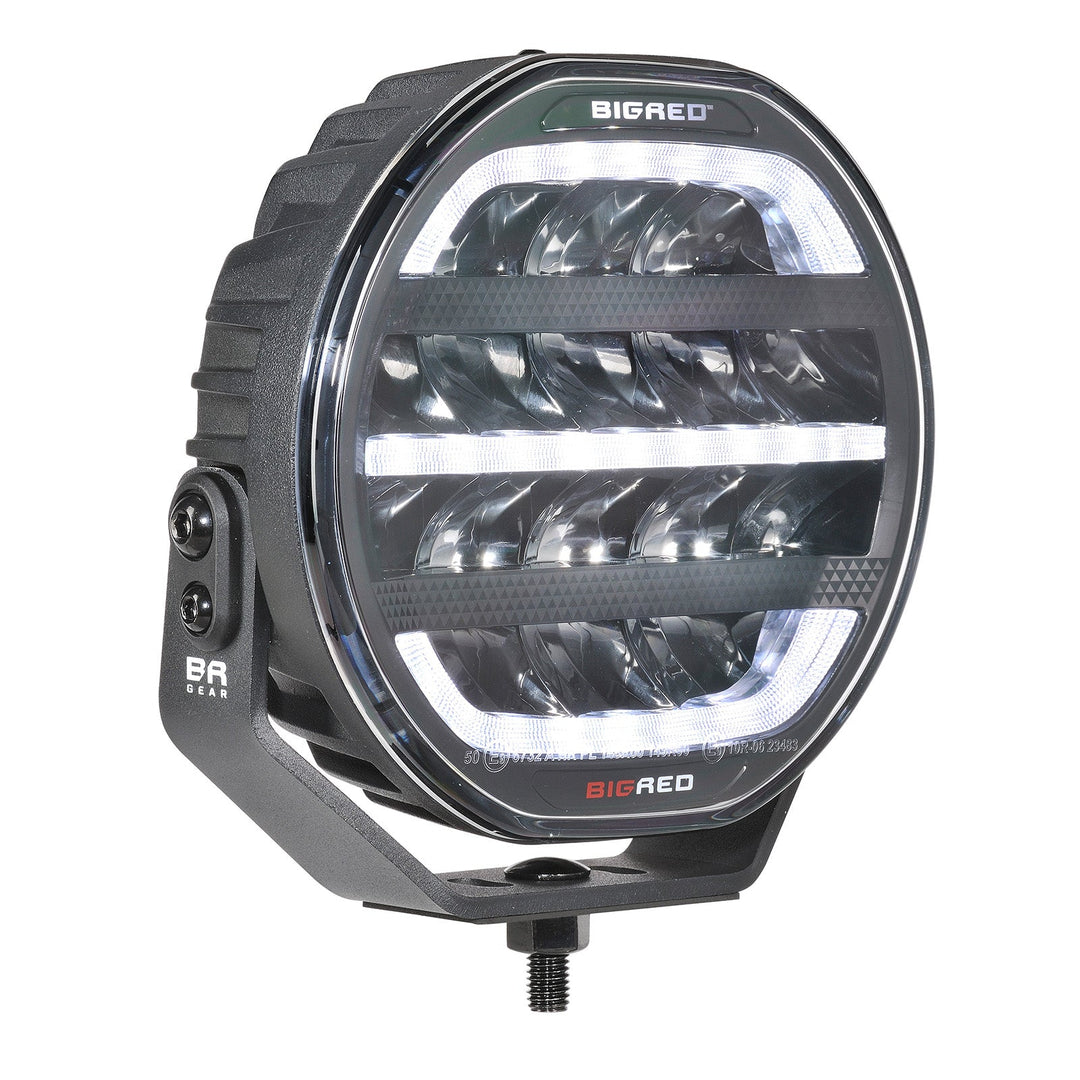

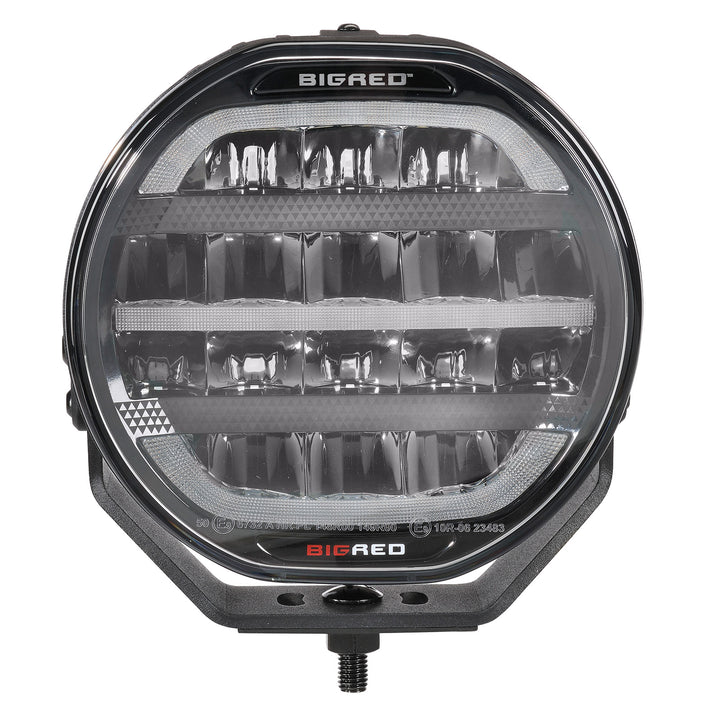

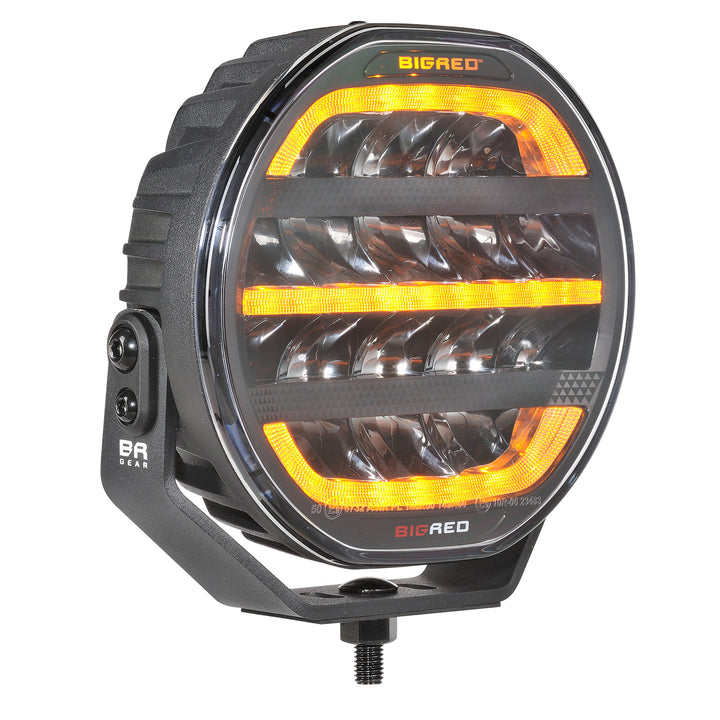

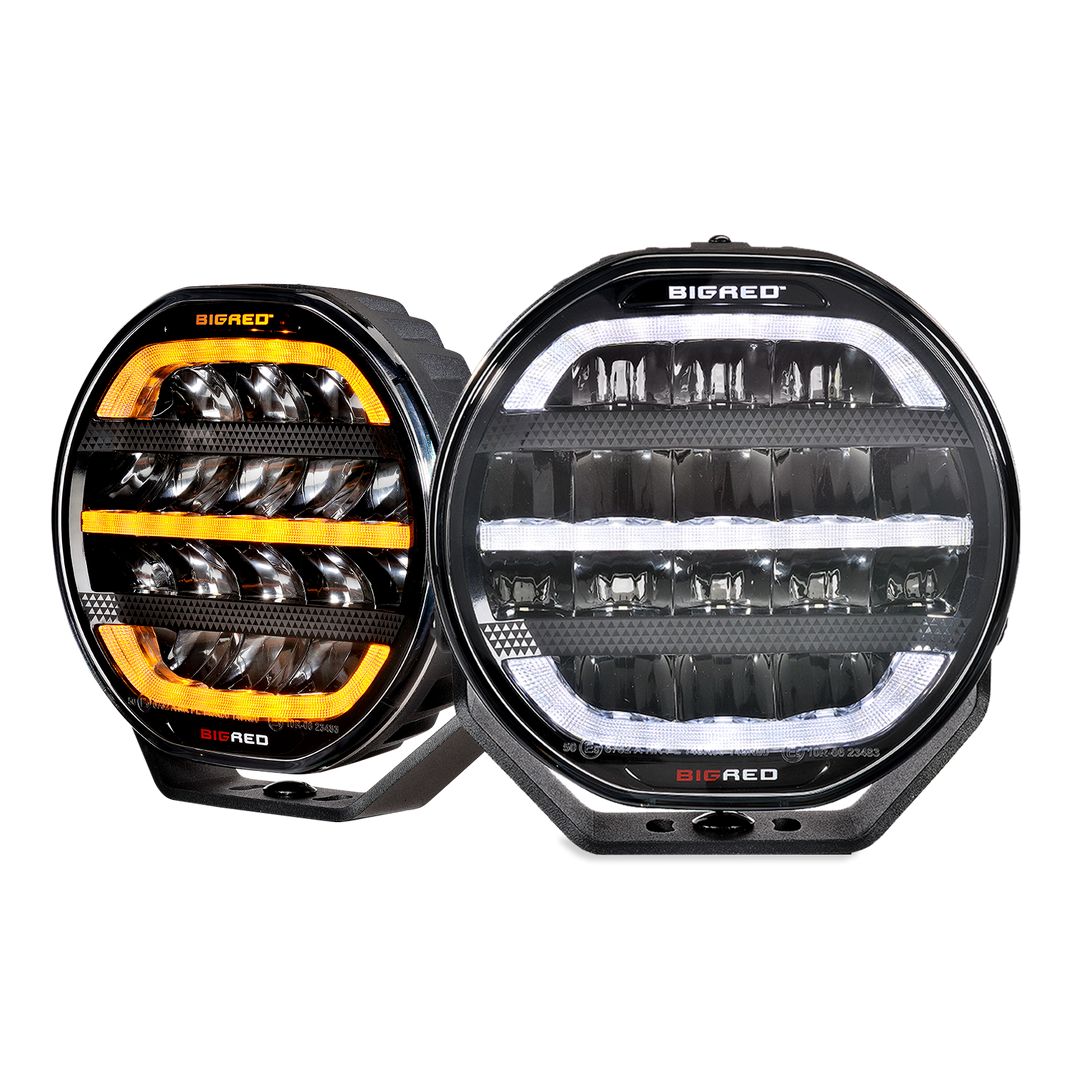

- Dynamic Position Light (White or Amber)
- ‘Covert’ Black chrome reflector

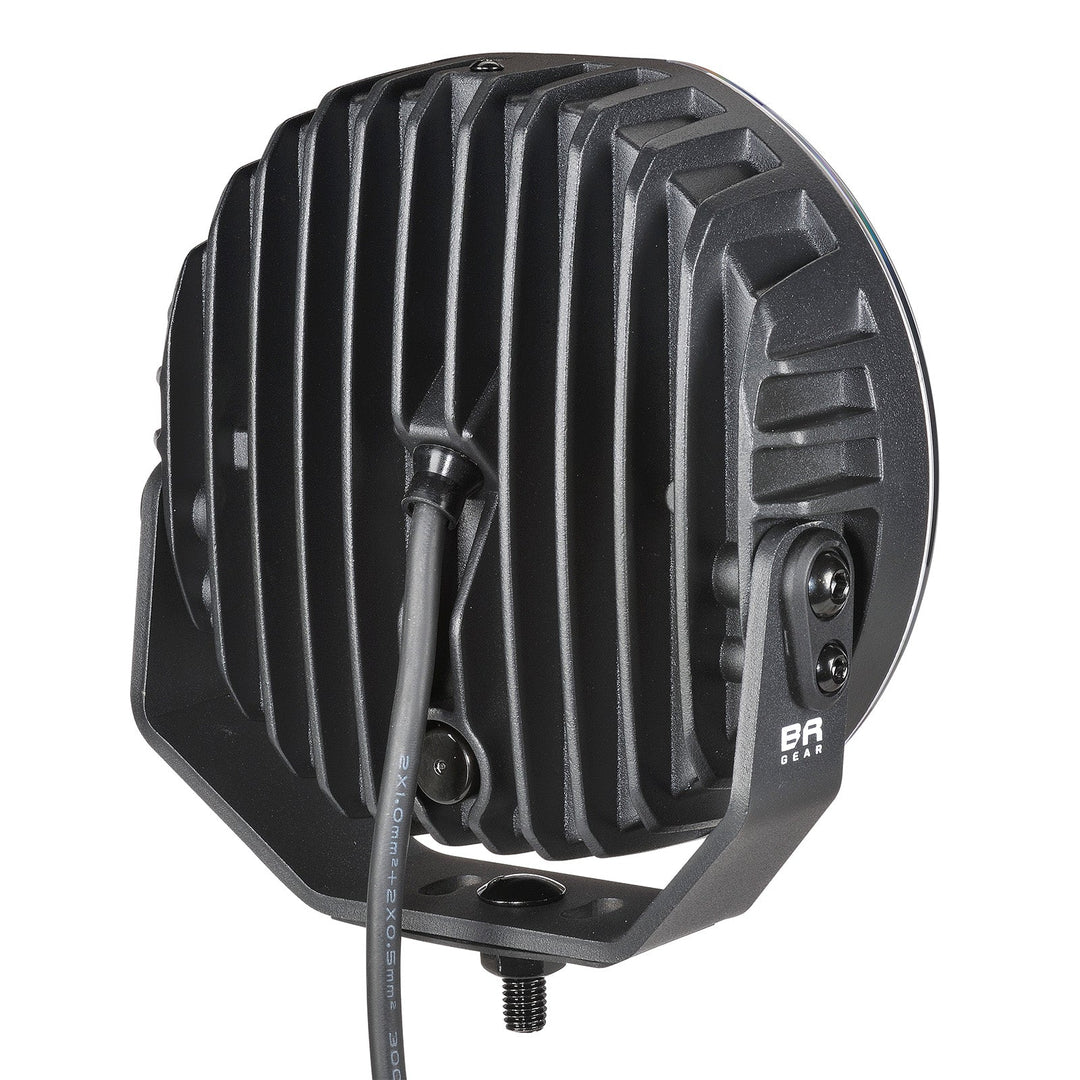

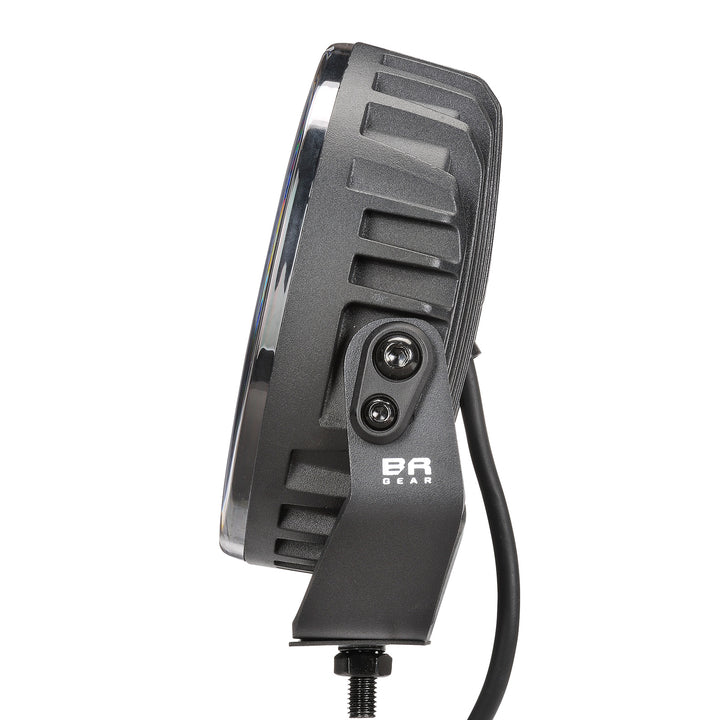

- Heavy duty stainless steel brackets with three bolt mounting.
- Virtually unbreakable polycarbonate lens
- Stainless steel mounting hardware.
- Integrated sealed DT connector
- Fully sealed and weatherproof (IP67)
- Requires no maintenance — expected life of LEDs is over 50,000 hours

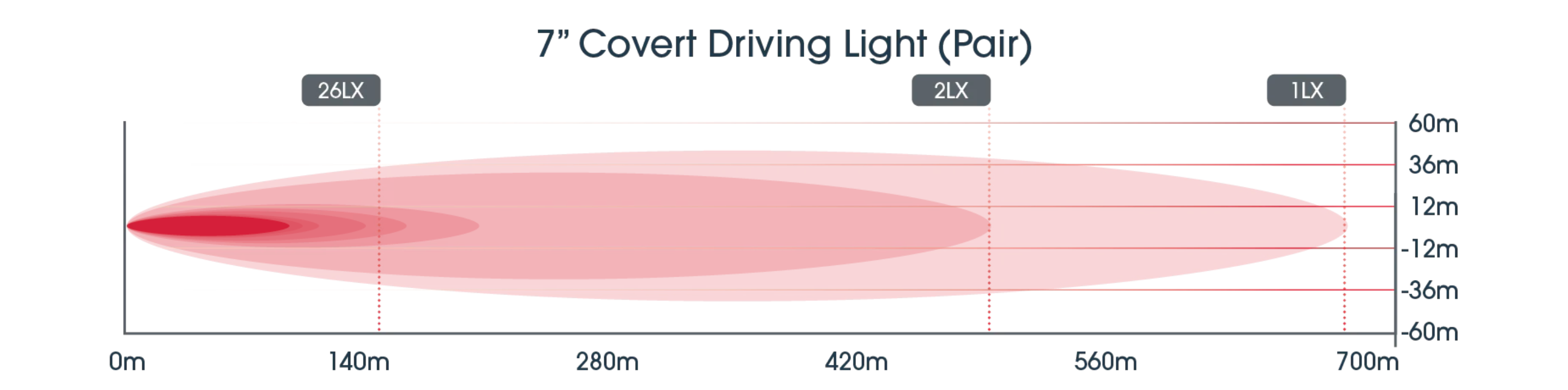

Beam Diagram
1 LUX AT 680M (WITH TWO LAMPS)
Technical Specifications
| Specifications | BR9040 |
|---|---|
| Wattage | 80W |
| Input Voltage | 12/24V |
| Current Draw 12V (single Lamp) | 5.8A |
| LEDs (Osram) | 16 x 5W |
| Colour Temperature | 5700°K |
| EMC | ECE R10 |
| IP Rating | IP67 |
| Raw Lumens | 7200 |
| Effective Lumens | 5800 |
| 1 Lux Distance (two lamps) | 680m |
| Warranty | 3 Years |
| Weight | 1.7kg (Single) |
What you get

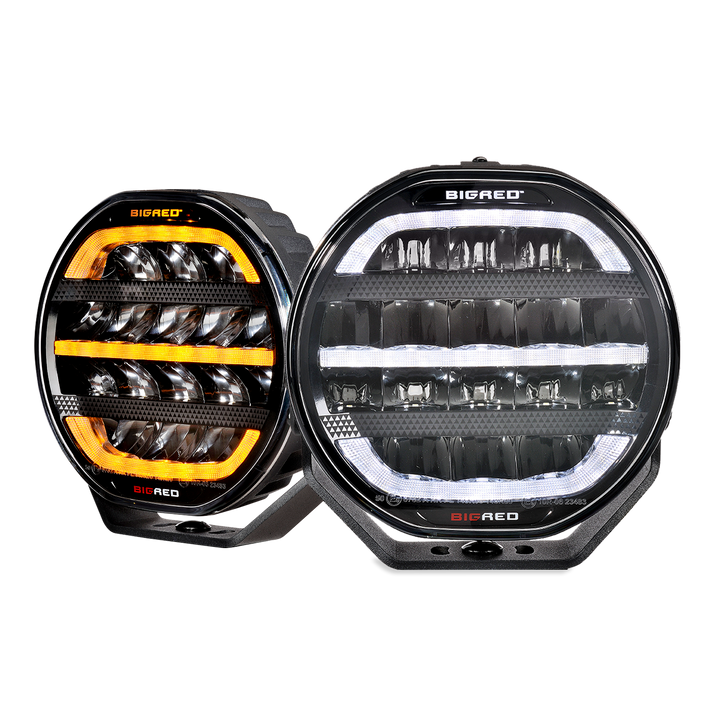

Covert 7" Inch LED Driving Lights
- BR9040 x Covert 7" Inch LED Driving Light x2
- Big Red Gear Lens Cover
- Stainless Steel Bolts, Nuts and Washers
- Rubber Mounting Pad
- 2 Position DT lead Connector
- Product Instructions

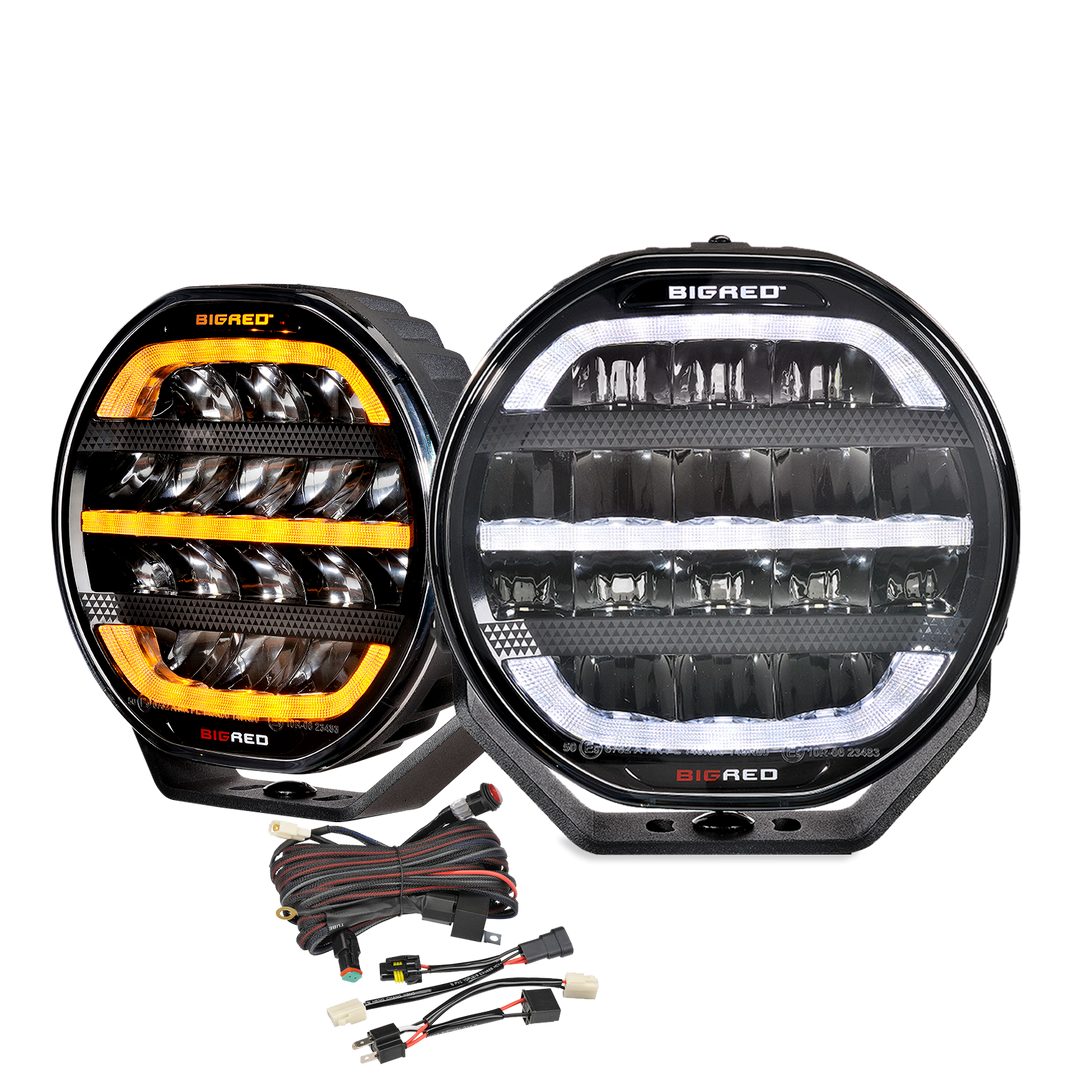

Plug and Play Wiring Harness
- Plug and Play wiring harness x1
- HB3 and H4 high beam adaptor
- 12V 40A relay
- 12V rocker switch
- Product Instructions
Also available from our leading online agents:
You may also like
FAQs
The Covert 7-Inch LED Driving Lights Kit offers powerful illumination, providing improved visibility for off-road driving. These lights are designed with advanced optics for a focused beam that reaches up to 1 LUX at 700 meters, making them ideal for enhancing safety in dark or challenging terrains. Additionally, they are built to withstand tough conditions with a durable, waterproof design (IP68 rating).
The Covert 7-Inch LED Driving Lights Kit comes with everything you need for installation, including wiring harnesses, mounting brackets, and hardware. The lights are designed for easy installation on most 4x4 and off-road vehicles. Follow the included instructions, ensuring secure mounting and proper wiring. If you are unsure about wiring, professional installation is recommended.
Yes, the Covert 7-Inch LED Driving Lights are specifically designed for off-road use. Their robust construction makes them resistant to impacts and vibrations encountered during off-road driving. They also have an IP68 waterproof rating, meaning they are protected against dust and water, ensuring reliable performance in harsh outdoor environments.
The Covert 7-Inch LED Driving Lights have an impressive light output, reaching 1 LUX at a distance of 700 meters. This makes them perfect for providing long-range visibility, especially during night-time or low-light conditions in off-road environments.
The IP68 rating means that the Covert 7-Inch LED Driving Lights are fully dustproof and capable of being submerged in water up to a specified depth for extended periods. This ensures that the lights can handle extreme weather conditions, dusty trails, and water crossings without losing their performance.
The Covert 7-Inch LED Driving Lights are constructed using a durable diecast aluminum housing, which provides excellent heat dissipation and enhances their longevity. The tough lens and corrosion-resistant materials ensure the lights are built to last in rugged off-road conditions.
The Covert 7-Inch LED Driving Lights are intended for off-road use. Before using these lights on public roads, be sure to check your local regulations to ensure compliance with vehicle lighting laws, as they may not be road-legal in all areas.
Compared to traditional halogen lights, the Covert 7-Inch LED Driving Lights offer significantly brighter illumination and a longer lifespan. LED technology is more energy-efficient, reducing strain on your vehicle’s battery, and provides a more focused, clearer light beam, which is ideal for off-road driving.
Yes, the Covert 7-Inch LED Driving Lights Kit comes with a 3-year warranty that covers any manufacturing defects and guarantees the product’s performance. Please review the warranty details included with the product for more information on coverage and terms.
The Covert 7-Inch LED Driving Lights Kit is compatible with most 4x4, off-road vehicles, and other vehicles with space for 7 inch driving lights. The included universal mounting hardware ensures that it can be easily installed on a variety of vehicles.
