Bush Ready Kit With Big Red Compressor QUAD-FLATE and 9 Inch Driving Lights

Bush Ready Kit With Big Red Compressor QUAD-FLATE and 9 Inch Driving Lights

SKU BRK9032

$819.00
/
Tax included. Shipping calculated at checkout.

Bundle kit includes:

  • 1x Big Red Gear 12V Twin Head Portable Air Compressor
  • 1x Quad-Flate 4 Tyre Digital Hose Kit
  • 2x 9 Inch BRG LED Driving Lights
  • 1x Big Red Gear Wiring Harness

9" BRG LED Driving Light

Features

  • High output 5W Osram LEDs produce a crisp, white light that we shape using precisely formed and aligned reflectors. This ensures an even distribution of light and perfectly formed spot beam for distance down the road.
  • 5700°K colour temperature LED’s blend the perfect balance of white light while retaining the best possible definition and Colour Rendering Index (CRI).
  • Our heavy duty stainless steel brackets are suitable for the rigours of off-road, 4WD tracks and have been finished in a durable black powder coat with white BR GEAR logos.
  • Each lamp includes our innovative rubber dampening system to help isolate the housing from the bracket and reduce vibration on the electronics.
  • We use a 3mm thick virtually unbreakable polycarbonate lens with hard coating for increased scratch resistance and protection from exposure to UV light.
  • Our lamps are also tested and complied to ECE R10 for Electro Magnetic Compatibility (EMC), meaning you should not have any problems interfering with sensitive equipment.
  • Each lamp also includes a clear see though polycarbonate cover for protection from stone spray and debris.
  • Fully sealed and tested to IP68 for dust and water ingress protection, meaning they are waterproof for up to 3m of submersion. Perfectly suited for river crossings.

12V Twin Head Portable Air Compressor

Features

  • Equipped with a digital pressure set for precise pressure control
  • Features a digital pressure gauge feature for easy and accurate readings
  • Built with a dual-head design for enhanced performance and effortless high airflow
  • Delivers an impressive 300 litres per minute airflow for super fast inflation operation
  • *Provides a maximum pressure of 150 PSI (automatic) and 125 PSI (manual)
  • Comes with an extended 8m air hose for greater reach and flexibility (for direct use with air compressor, not compatible with Quad-Flate (BR8304) hose kit
  • Includes a 1.8m power cable, ensuring convenient and hassle-free connections with premium quality battery clamp
  • Features an internal circuit breaker with dual relays, removing the need for an inline fuse
  • Includes over Temperature (120°C) and Current Protection (120A) to safeguard internal components during use
  • Built specifically for the serious off-roader, utilising twin aluminium head heatsinks for efficient cooling, aluminium piston and durable iron cylinder
  • Backed by a 2-year warranty for peace of mind

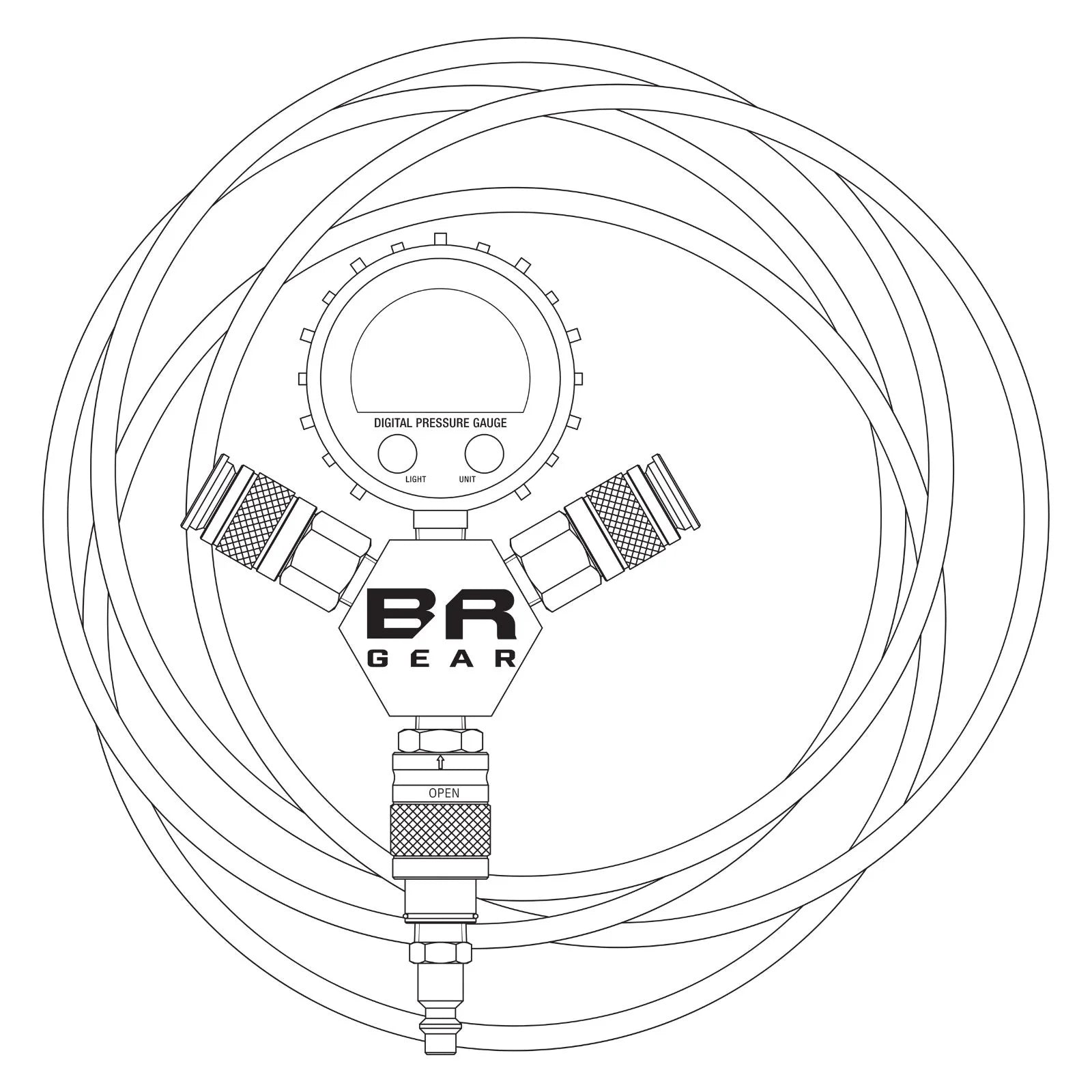

Quad-Flate 4 Tyre Digital Hose Kit

Features

  • The digital backlit display shows pressure and battery life
  • Quick disconnect couplers allow fast connections
  • The light button activates the display or LED light on the back, for convenient use after dark
  • Switch between PSI, BAR, KPA, and Kg/cm²
  • The slider air-valve provides complete control of pressure in or out
  • A secure air source coupler ensures reliable connection
  • The LED scene light improves visibility in low light
  • Powered by 2 AAA batteries (not included)

Technical Specifications

Specifications BR9032
Wattage90W
Input Voltage12/24V
Current Draw 12V (single Lamp)11A
LEDs (Osram)30 x 5W
Colour Temperature5700°K
EMCECE R10
IP RatingIP68
Raw Lumens15,000
Effective Lumens9,056

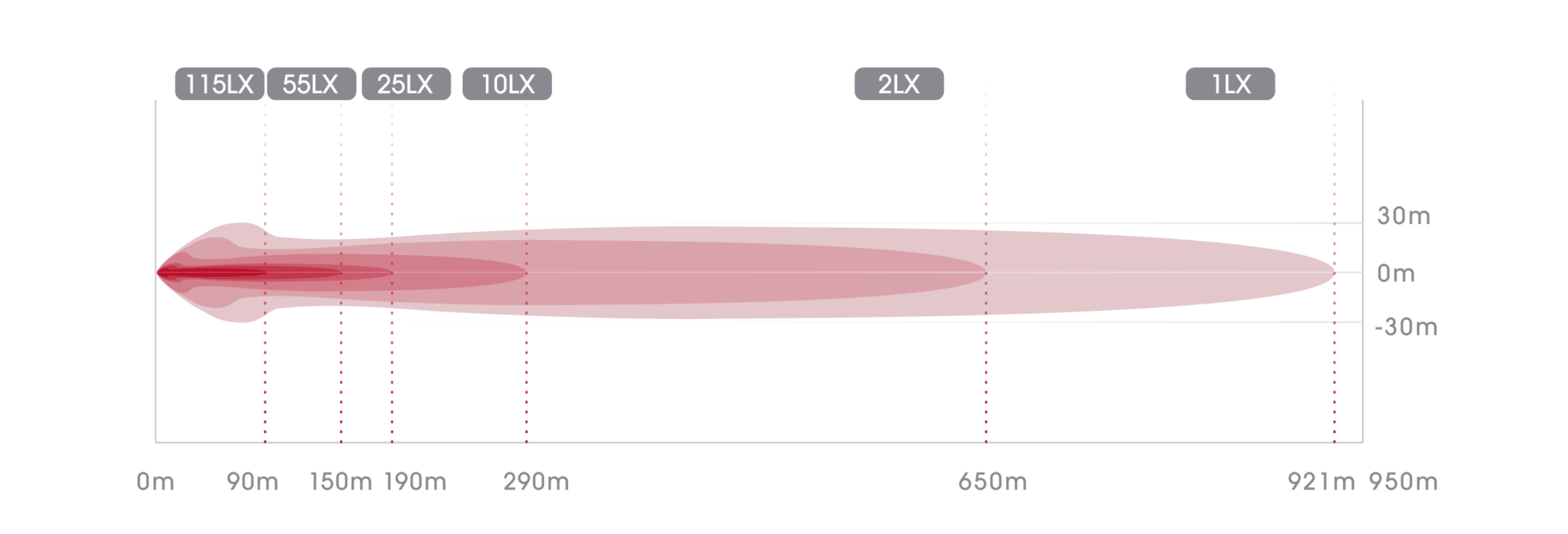

1 Lux Distance (two lamps)921m
Warranty3 Years
Weight3.8kg (Single)

Technical Specifications

Specifications BR8300
Wattage1080W
Input Voltage12.0–13.5V DC
Max Current90 AMP
Max Pressure150 PSI (Pre-Set) & 125 PSI (Manual) Auto cut off
Max Air Flow300 LPM / 10.6 CFM
Over Current ProtectionYes (over 120 AMP)
Over Temperature ProtectionYes (over 120°C. Resets once temperature drops below 60°C)
Pressure Unit SwitchYes
Cylinder Size2×60 mm
Air Delivery Hose Length7.75 m
12V Power Lead Length1.8 m
Digital Pressure GaugeReal-time in-tyre pressure ±2 PSI

Technical Specifications

Specifications BR8302
Hose Quantity2 x Hoses (4 tyre)
Length2 x 7000mm
Hose ColourBlack
Hose MaterialPremium Anti-kink Hybrid Polymer
Suits Vehicle Wheel Base4500mm
Tyre Fitment Chucks4
Chuck ColourRed
Tyre Gauge (Deflator / Inflator)Digital
Units of MeasurePSI, BAR, KPA, Kg/cm²
PSI Max Pressure Rating200 PSI
Battery Requirement2 x AAA (NOT included)
SpecificationsBR9095
Input Voltage12/24V
Current Rating
10A per lamp / light bar (max)
Relay 12V 40 Amp
Switch 12V Rocker with Red LED
Connectors Waterproof DT x 2
High Beam Adaptor HB3 and H4
Fuse 30A ATS Blade Fuse
Warranty 3 Years

What you get

BRG 9" Inch LED Driving Lights

  • BR9032 9" Inch BRG LED Driving Light x2
  • Big Red Gear Lens Cover
  • Stainless Steel Bolts, Nuts and Washers
  • Rubber Mounting Pad
  • 2 Position DT lead Connector
  • Product Instructions

12v TWIN HEAD PORTABLE AIR COMPRESSOR

  • 12V Twin Air Compressor 1x
  • Rubber Air Hose 1x
  • Thumb Lock Valve Connector 1x

Plug and Play Wiring Harness

  • Plug and Play wiring harness x2
  • HB3 and H4 high beam adaptor
  • 12V 40A relay
  • 12V rocker switch
  • Product instructions

4-TYRE DIGITAL AIR HOSE

  • Digital Pressure Gauge 1x
  • Hoses (7m each) 2x
