Bush Ready Kit With Big Red Compressor QUAD-FLATE and 7 Inch Covert Driving Lights

Bush Ready Kit With Big Red Compressor QUAD-FLATE and 7 Inch Covert Driving Lights

SKU BRK9040

$789.00 $710.10 Save $78.90
/
Tax included. Shipping calculated at checkout.

Bundle kit includes:

  • 1x Big Red Gear 12V Twin Head Portable Air Compressor
  • 1x Quad-Flate 4 Tyre Digital Hose Kit
  • 2x Covert 7 Inch LED Driving Light
  • 1x Big Red Gear Wiring Harness

7" Covert LED Driving Light

Features

  • Blacked out virtually unbreakable Polycarbonate lens protector NOTE: Remove blacked-out lens covers when using driving lights as they emit a non-approved green glow, only suitable for off-road use.
  • High power Osram LEDs produce a natural white light (5700°K) close to daylight.
  • Dynamic Position Light (White or Amber)
  • ‘Covert’ Black chrome reflector
  • Heavy duty stainless steel brackets with three bolt mounting
  • Virtually unbreakable polycarbonate lens
  • Stainless steel mounting hardware.
  • Integrated sealed DT connector
  • Fully sealed and weatherproof (IP67)
  • Requires no maintenance - expected life of LEDs is over 50,000 hours

12V Twin Head Portable Air Compressor

Features

  • Equipped with a digital pressure set for precise pressure control
  • Features a digital pressure gauge feature for easy and accurate readings
  • Built with a dual-head design for enhanced performance and effortless high airflow
  • Delivers an impressive 300 litres per minute airflow for super fast inflation operation
  • *Provides a maximum pressure of 150 PSI (automatic) and 125 PSI (manual)
  • Comes with an extended 8m air hose for greater reach and flexibility (for direct use with air compressor, not compatible with Quad-Flate (BR8304) hose kit
  • Includes a 1.8m power cable, ensuring convenient and hassle-free connections with premium quality battery clamp
  • Features an internal circuit breaker with dual relays, removing the need for an inline fuse
  • Includes over Temperature (120°C) and Current Protection (120A) to safeguard internal components during use
  • Built specifically for the serious off-roader, utilising twin aluminium head heatsinks for efficient cooling, aluminium piston and durable iron cylinder
  • Backed by a 2-year warranty for peace of mind













Quad-Flate 4 Tyre Digital Hose Kit

Features

  • The digital backlit display shows pressure and battery life
  • Quick disconnect couplers allow fast connections
  • The light button activates the display or LED light on the back, for convenient use after dark
  • Switch between PSI, BAR, KPA, and Kg/cm²
  • The slider air-valve provides complete control of pressure in or out
  • A secure air source coupler ensures reliable connection
  • The LED scene light improves visibility in low light
  • Powered by 2 AAA batteries (not included)

Technical Specifications

Specifications BR9040
Wattage80W
Input Voltage12/24V
Current Draw 12V (single Lamp)5.8A
LEDs (Osram)16 x 5W
Colour Temperature5700°K
EMCECE R10
IP RatingIP67
Raw Lumens7,200
Effective Lumens5,800

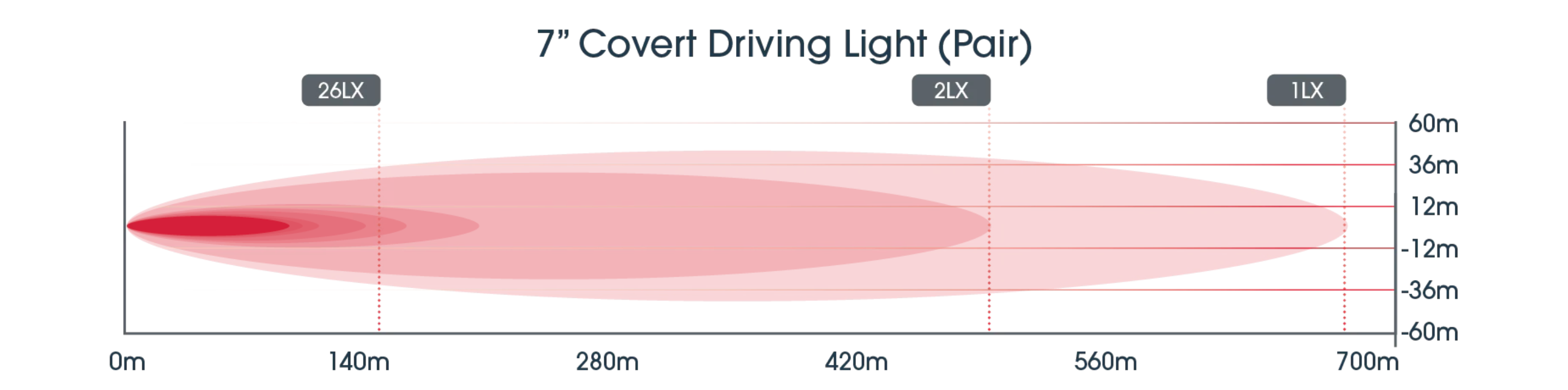

1 Lux Distance (two lamps)680m
Warranty3 Years
Weight1.7kg (Single)

Technical Specifications

Specifications BR8300
Wattage1080W
Input Voltage12.0–13.5V DC
Max Current90 AMP
Max Pressure150 PSI (Pre-Set) & 125 PSI (Manual) Auto cut off
Max Air Flow300 LPM / 10.6 CFM
Over Current ProtectionYes (over 120 AMP)
Over Temperature ProtectionYes (over 120°C. Resets once temperature drops below 60°C)
Pressure Unit SwitchYes
Cylinder Size2×60 mm
Air Delivery Hose Length7.75 m
12V Power Lead Length1.8 m
Digital Pressure GaugeReal-time in-tyre pressure ±2 PSI

Technical Specifications

Specifications BR8302
Hose Quantity2 x Hoses (4 tyre)
Length2 x 7000mm
Hose ColourBlack
Hose MaterialPremium Anti-kink Hybrid Polymer
Suits Vehicle Wheel Base4500mm
Tyre Fitment Chucks4
Chuck ColourRed
Tyre Gauge (Deflator / Inflator)Digital
Units of MeasurePSI, BAR, KPA, Kg/cm²
PSI Max Pressure Rating200 PSI
Battery Requirement2 x AAA (NOT included)
SpecificationsBR9095
Input Voltage12/24V
Current Rating
10A per lamp / light bar (max)
Relay 12V 40 Amp
Switch 12V Rocker with Red LED
Connectors Waterproof DT x 2
High Beam Adaptor HB3 and H4
Fuse 30A ATS Blade Fuse
Warranty 3 Years

What you get

COVERT 7" Inch LED Driving Lights

  • BR9040 7" Inch BRG LED Driving Light x2
  • Big Red Gear Lens Cover
  • Stainless Steel Bolts, Nuts and Washers
  • Rubber Mounting Pad
  • 2 Position DT lead Connector
  • Product Instructions

12v TWIN HEAD PORTABLE AIR COMPRESSOR

  • 12V Twin Air Compressor 1x
  • Rubber Air Hose 1x
  • Thumb Lock Valve Connector 1x

Plug and Play Wiring Harness

  • Plug and Play wiring harness x2
  • HB3 and H4 high beam adaptor
  • 12V 40A relay
  • 12V rocker switch
  • Product instructions

4-TYRE DIGITAL AIR HOSE

  • Digital Pressure Gauge 1x
  • Hoses (7m each) 2x
