Newer vehicles with CAN-bus high-beam circuits need a plug-and-play adaptor.
Find your vehicle below. If it's not listed, you're good to go with our standard harness.
Don't see your vehicle? Your standard harness will work.

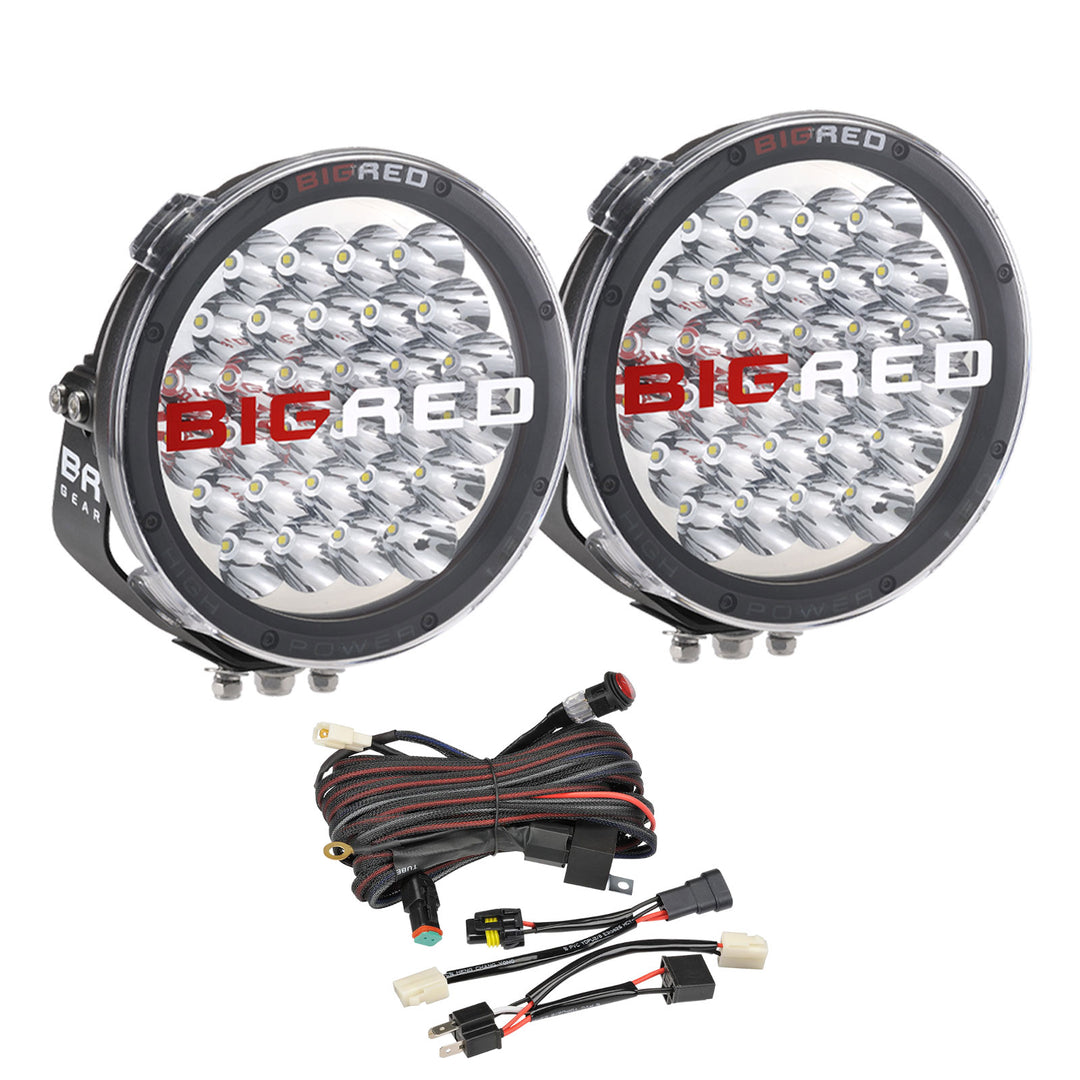

Bundle kit includes:

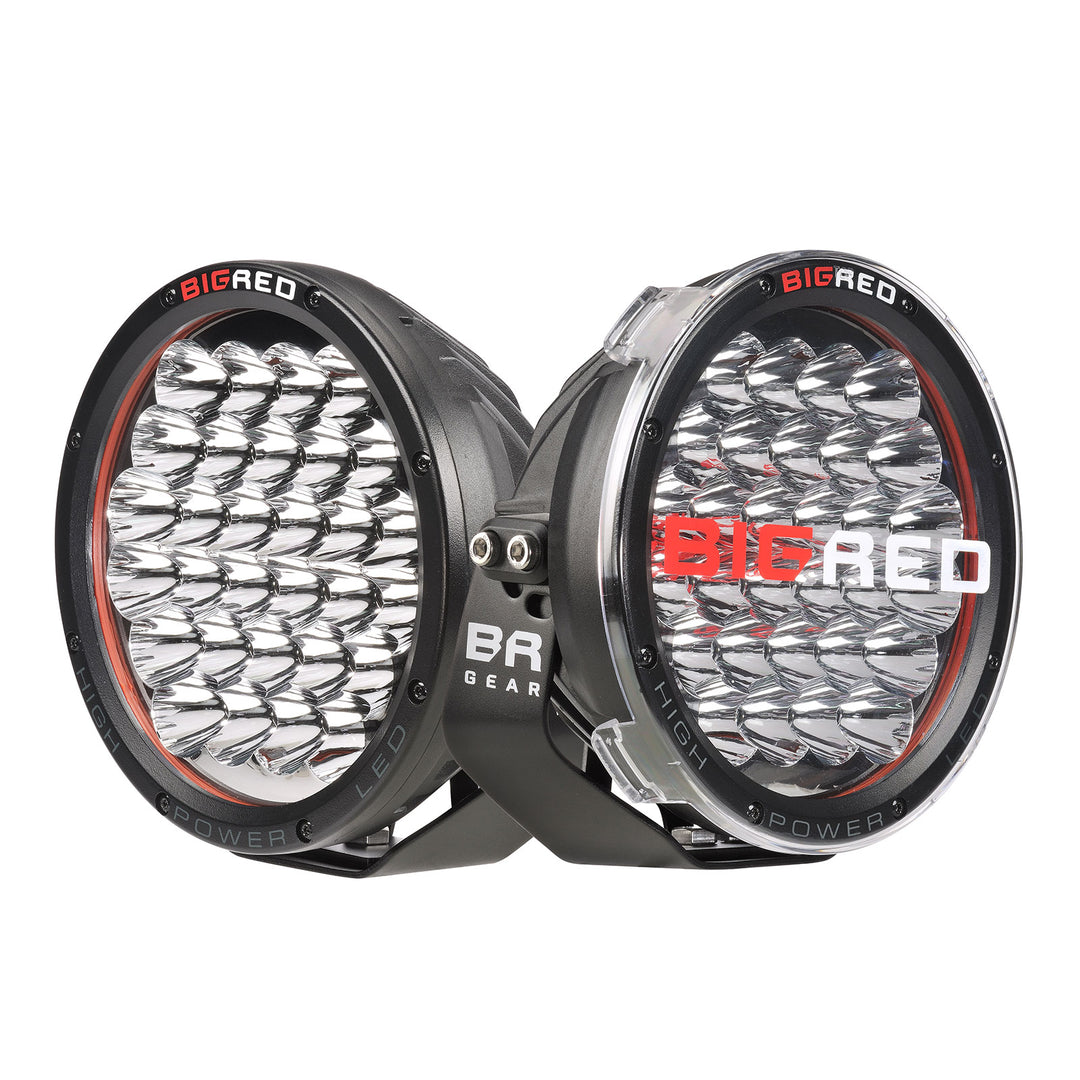

2x 9" Inch BRG LED Driving Lights, built using 5W Osram LEDs with a massive 921 metres, 1 lux output!
1x plug and play wiring harness to help you get connected quickly

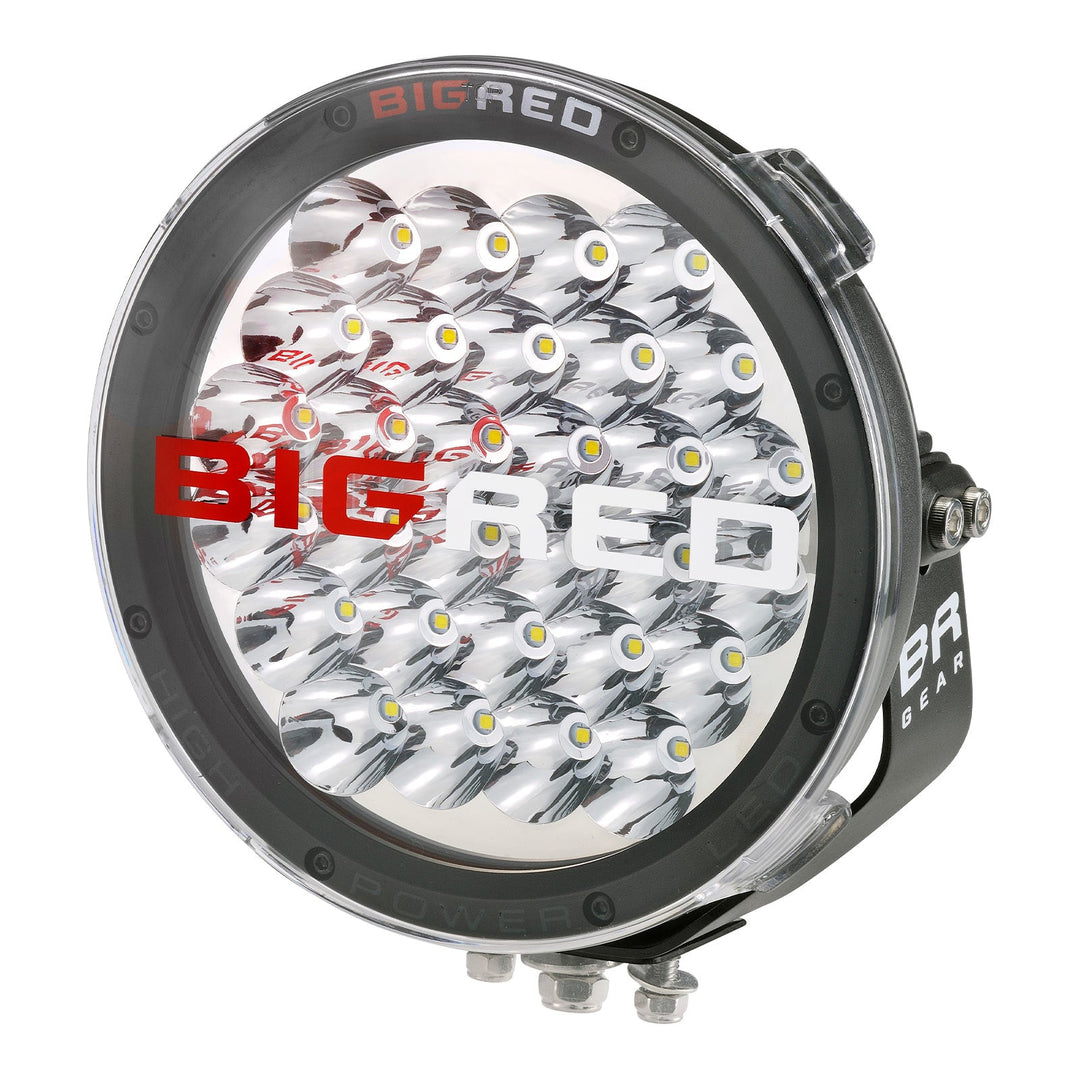

Big Red Gear driving lights are back with better value and even more output! We’ve modified our frontrunner 9” inch BRG LED driving lights, now equipped with 30 high-output Osram LEDs for better performance. Precisely formed and aligned reflectors combine to produce crisp high-definition lights with huge capacity for illumination down the road. In fact, two lights produce a beam throw of up to 921 metres at 1 lux.
Considered design elements combine to give the 9” inch BRG LED driving lights durability and a precision look. These lights are ready for anything, whether it’s dirt tracks or river crossings. Mounted on black powder coated stainless steel brackets and fully sealed and rated to IP68 for dust and water ingress protection, these lights are built for lasting performance.

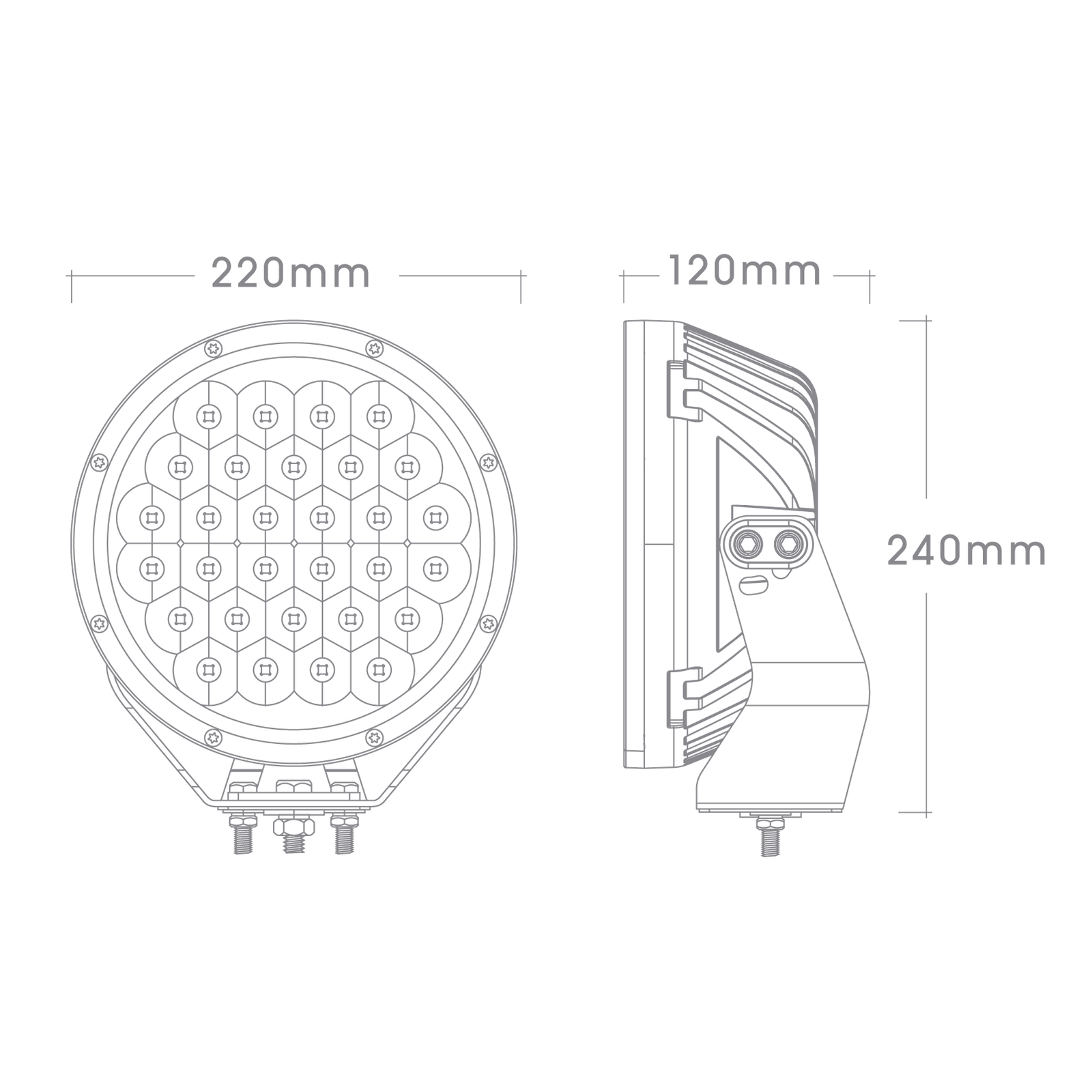

With dimensions at 220mm wide, 240mm high and 120mm deep, our 9” inch BRG LED driving lights will look comfortable on any large off-road 4x4.
Features

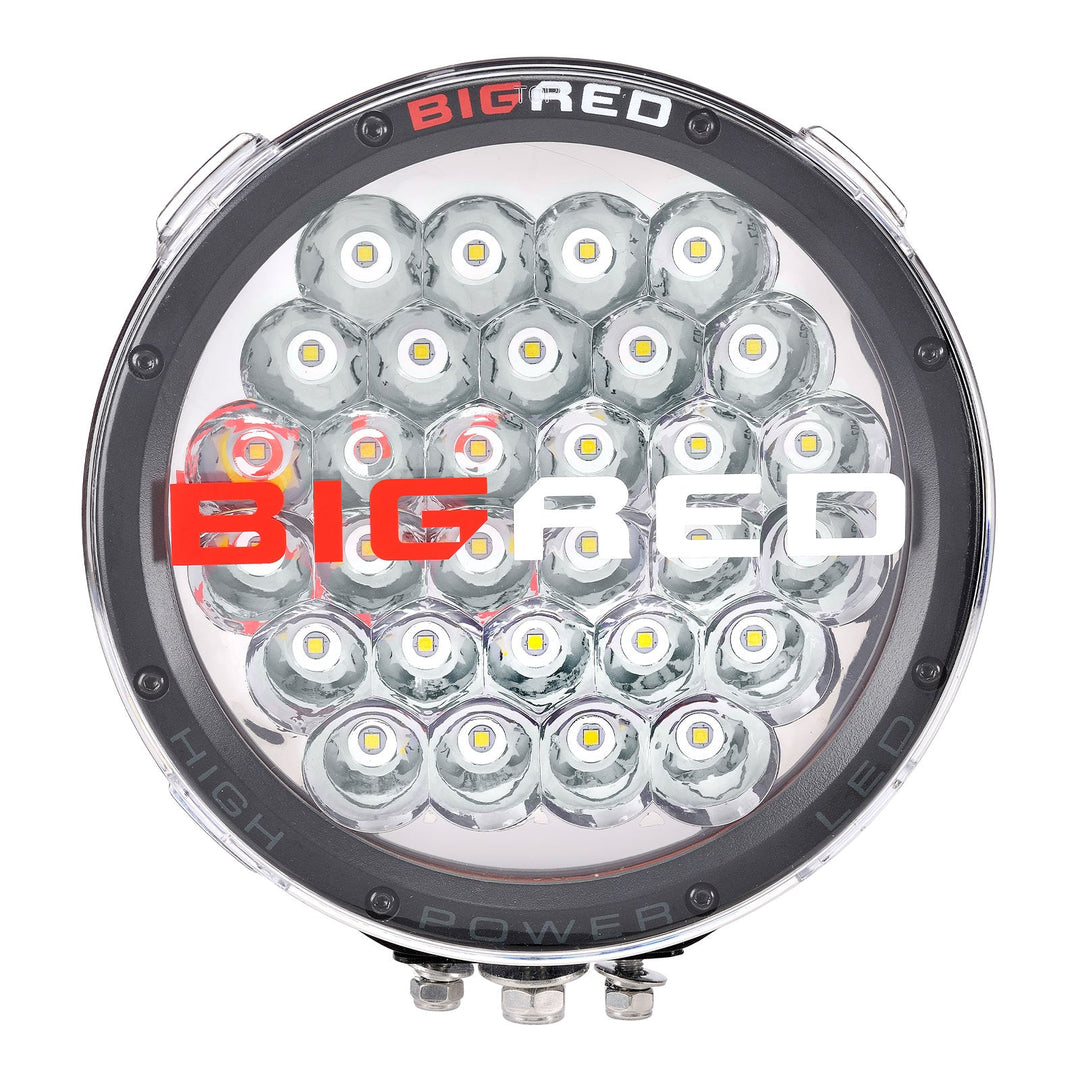

High output 5W Osram LEDs produce a crisp, white light that we shape using precisely formed and aligned reflectors. This ensures an even distribution of light and perfectly formed spot beam for distance down the road.
5700°K colour temperature LED’s blend the perfect balance of white light while retaining the best possible definition and Colour Rendering Index (CRI).

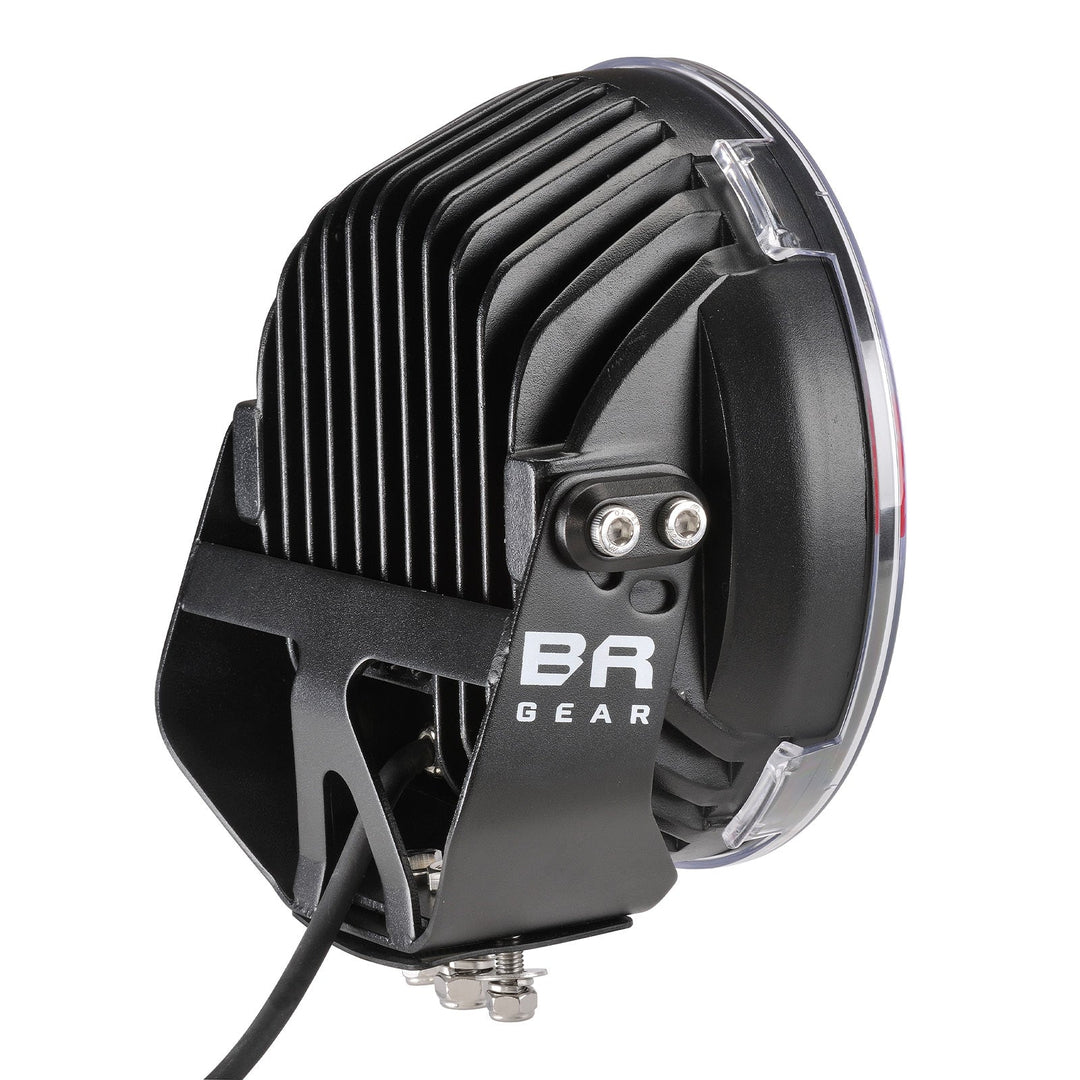

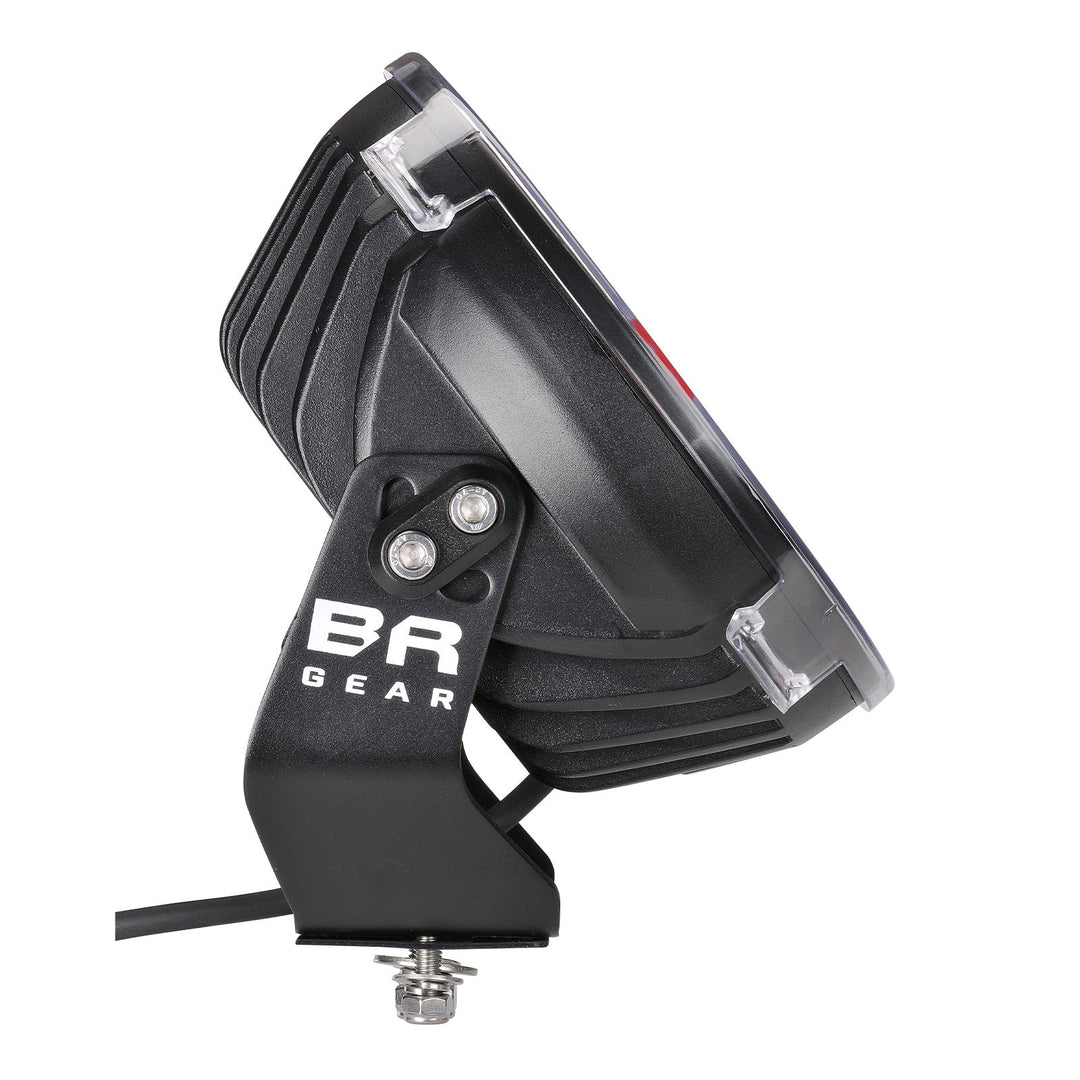

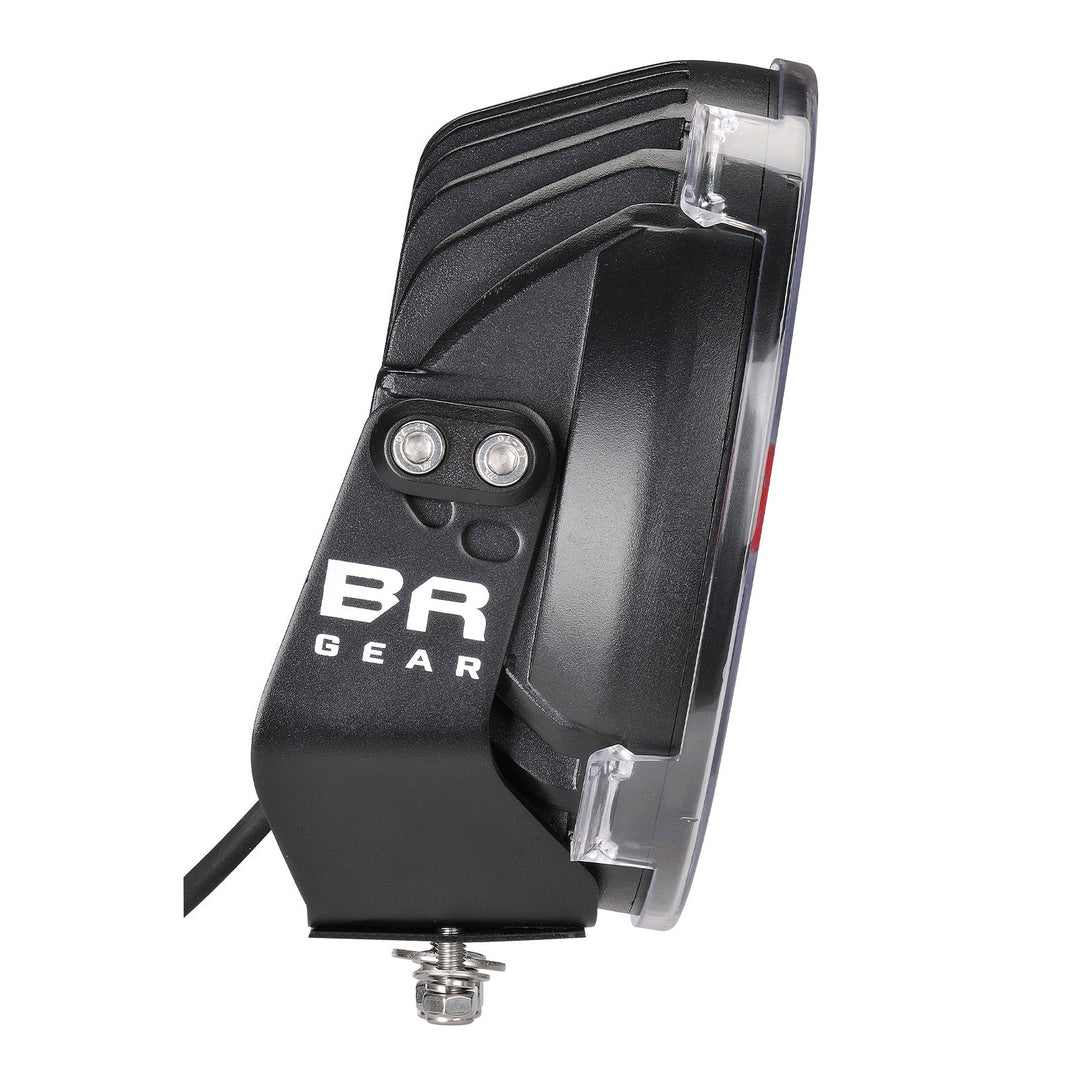

Our heavy duty stainless steel brackets are suitable for the rigours of off-road, 4WD tracks and have been finished in a durable black powder coat with white BR GEAR logos.
Each lamp includes our innovative rubber dampening system to help isolate the housing from the bracket and reduce vibration on the electronics.
We use a 3mm thick virtually unbreakable polycarbonate lens with hard coating for increased scratch resistance and protection from exposure to UV light.
Our lamps are also tested and complied to ECE R10 for Electro Magnetic Compatibility (EMC), meaning you should not have any problems interfering with sensitive equipment.
Each lamp also includes a clear see though polycarbonate cover for protection from stone spray and debris.
Fully sealed and tested to IP68 for dust and water ingress protection, meaning they are waterproof for up to 3m of submersion. Perfectly suited for river crossings.

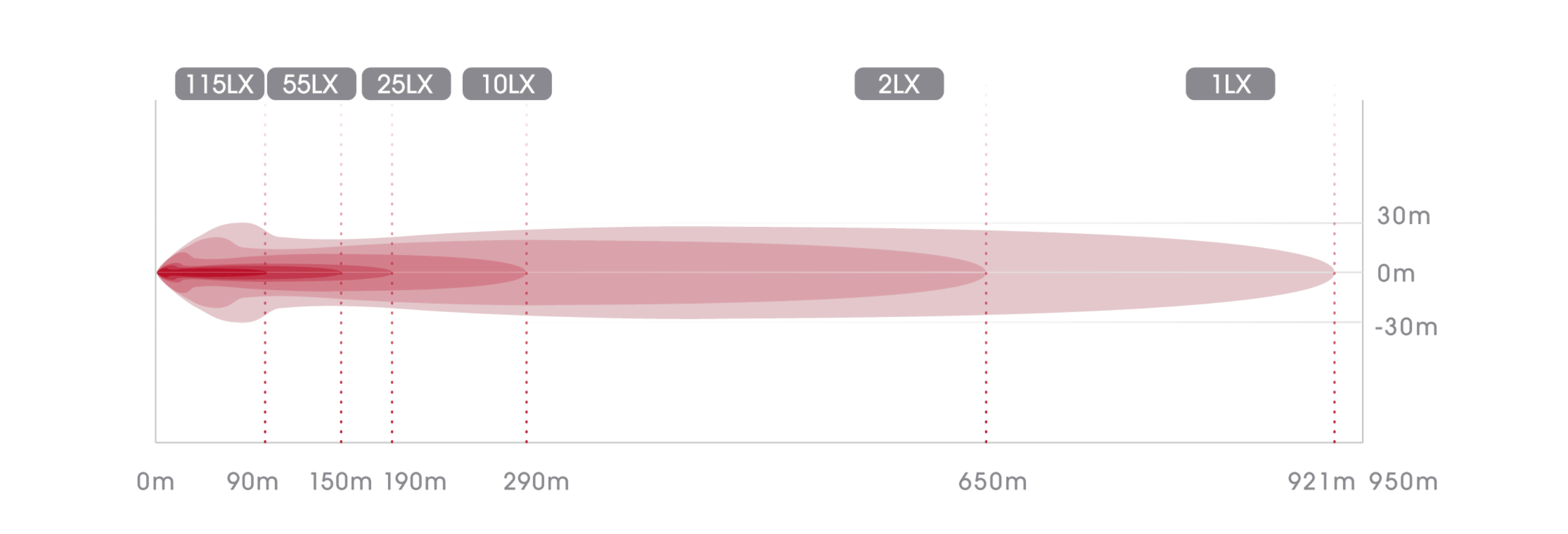

Beam Diagram
1 Lux at 921m (with two lamps)
Specifications
BR9032
Wattage
90W
Input Voltage
12/24V
Current Draw 12V (single Lamp)
11A
LEDs (Osram)
30 x 5W
Colour Temperature
5700°K
EMC
ECE R10
IP Rating
IP68
Raw Lumens
15000
Effective Lumens
9056
1 Lux Distance (two lamps)
921m
Warranty
3 Years
Weight
3.8kg (Single)
What you get
BRG 9" Inch LED Driving Lights
BR9032 x BRG 9" Inch LED Driving Light x2
Big Red Gear Lens Cover
Stainless Steel Bolts, Nuts and Washers
Rubber Mounting Pad
2 Position DT lead Connector
Product Instructions

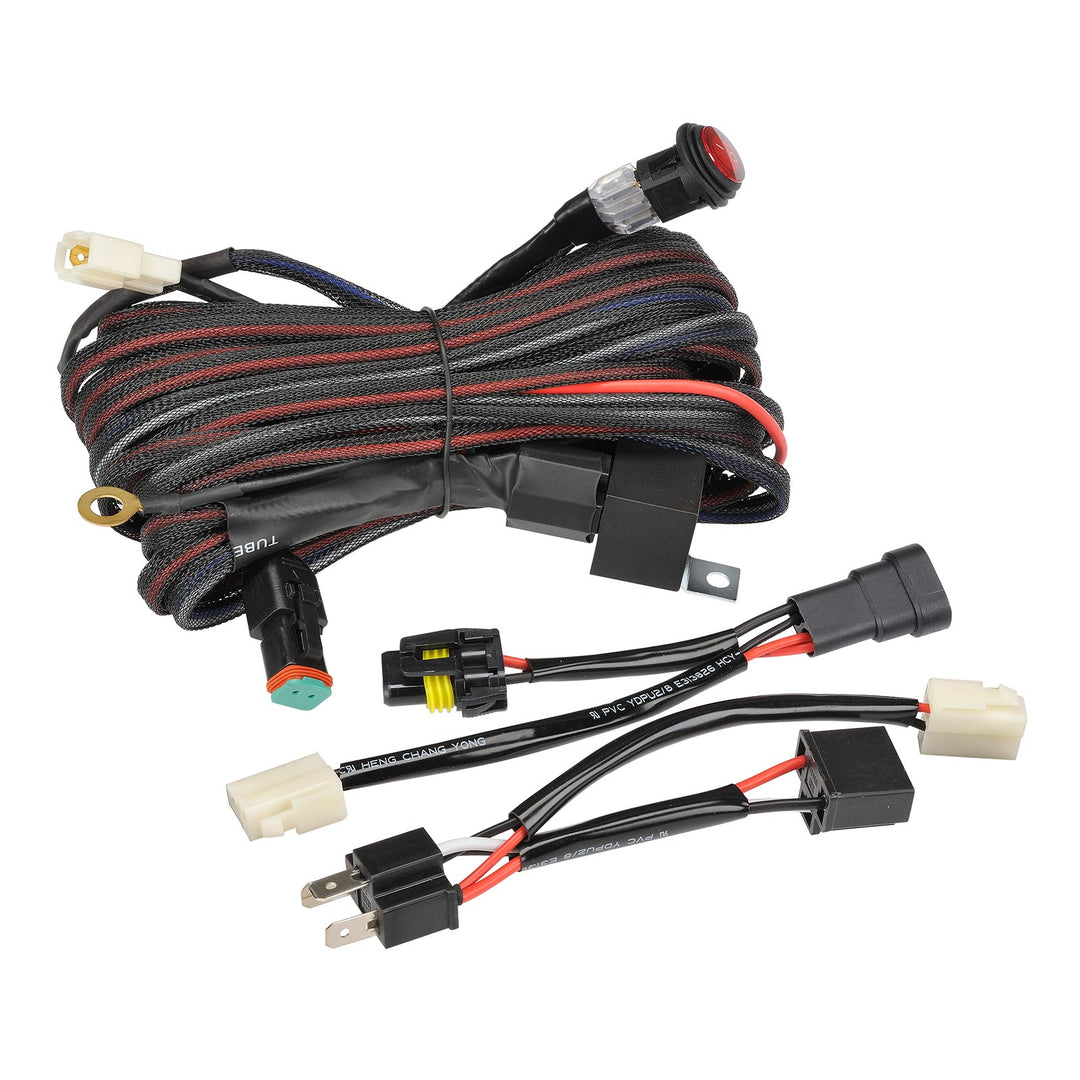

Plug and Play Wiring Harness
Plug and Play wiring harness x1
HB3 and H4 high beam adaptor
12V 40A relay
12V rocker switch
Product instructions
Customer Reviews
Overall rating: 4.9 / 5 from 90 reviews.

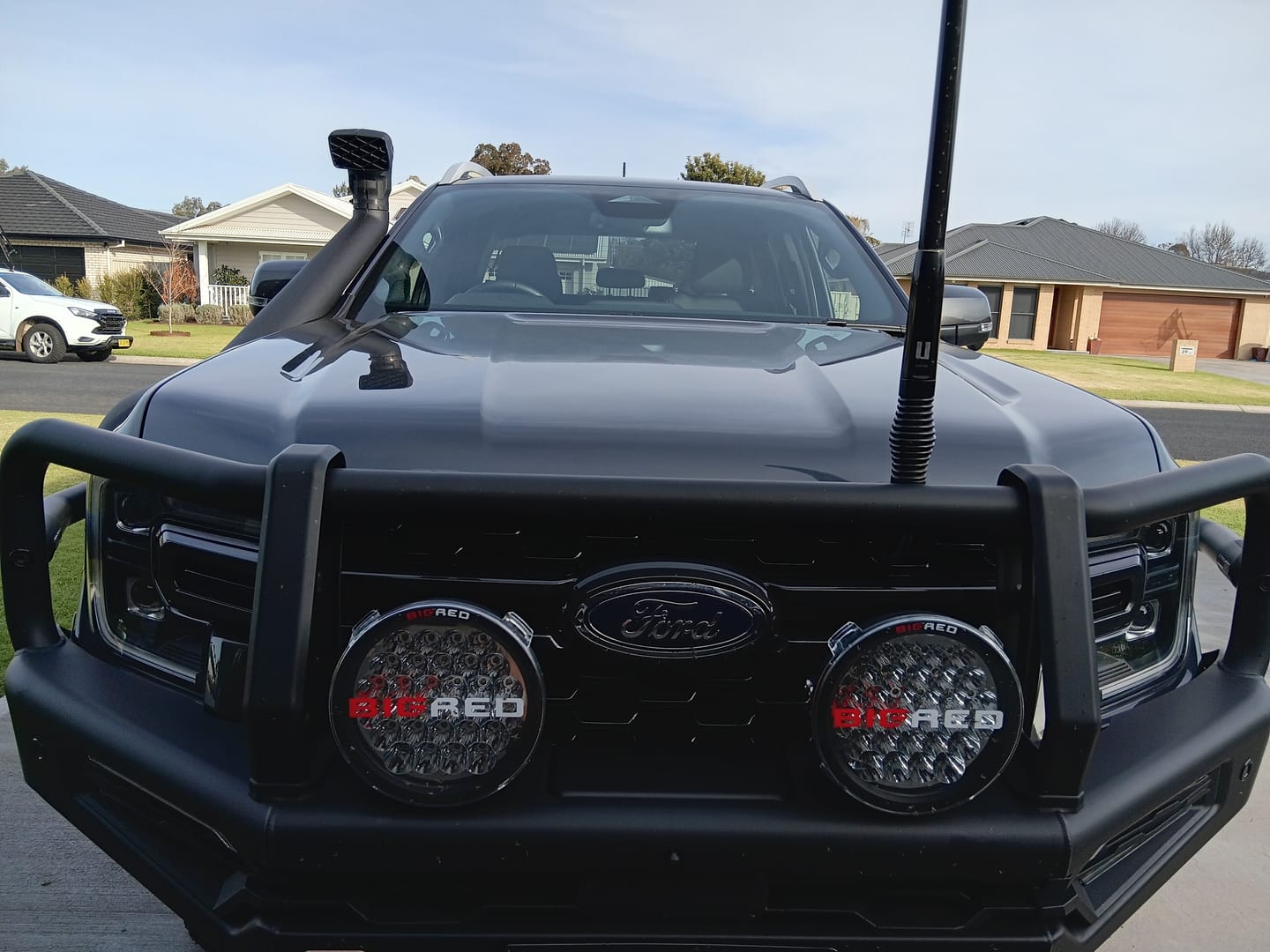

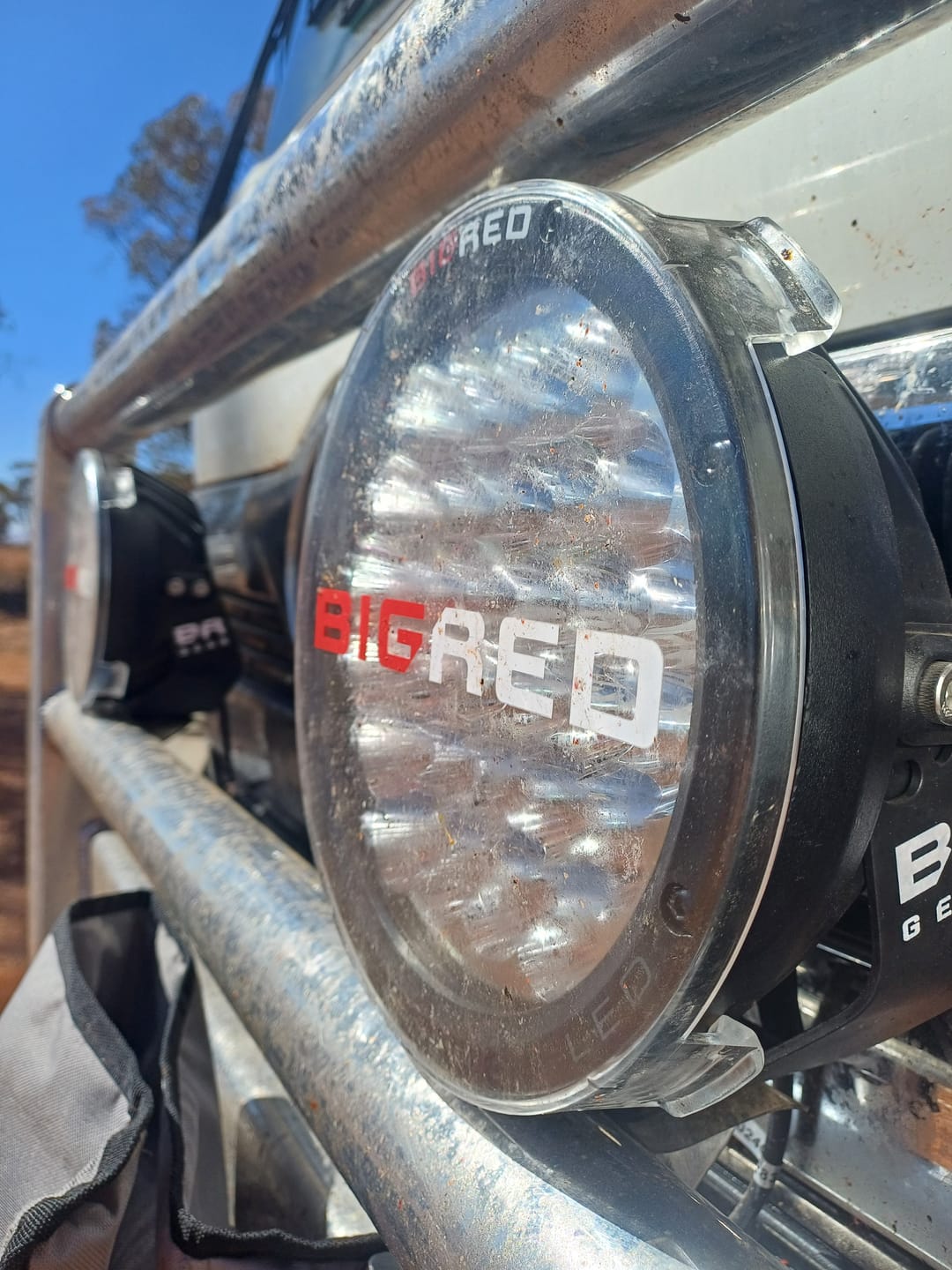

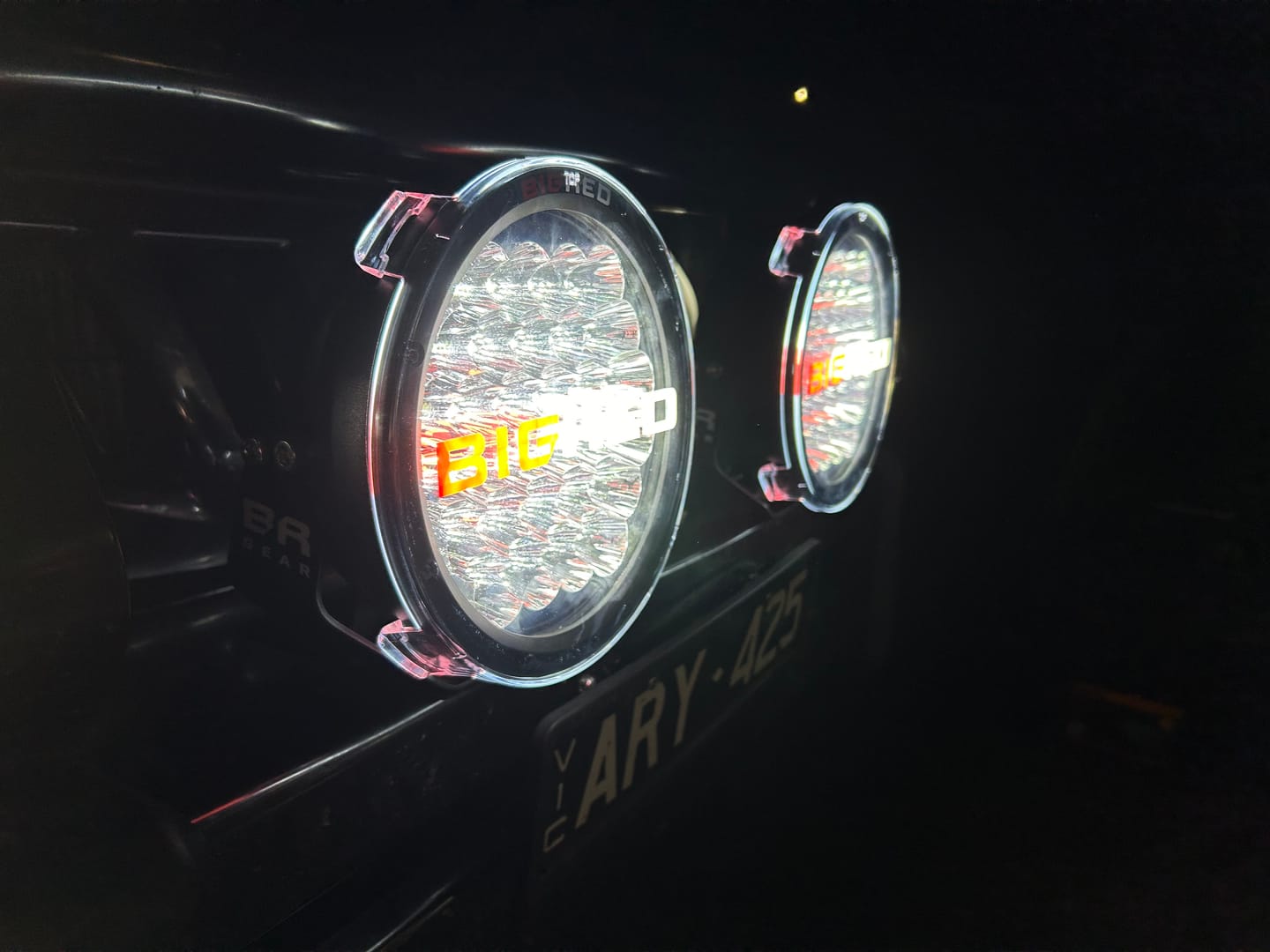

I conduct a lot of research when I buy any product no matter what it is and there was something about these lights that stood out. Not just the specs but the appearance of them. Wasn't sure about the covers at first with the name BIG RED plastered across the front but I have had about three people since purchase asking me about my lights. They have caught their eye.
I have stepped from the old Light Force 240 Blitz halogen driving lights and OMG what a difference.
I'm that excited about these lights that I am planning a camping trip soon and plan to leave in the early hours of the morning just to experience their full capacity. Completely recommend these lights.

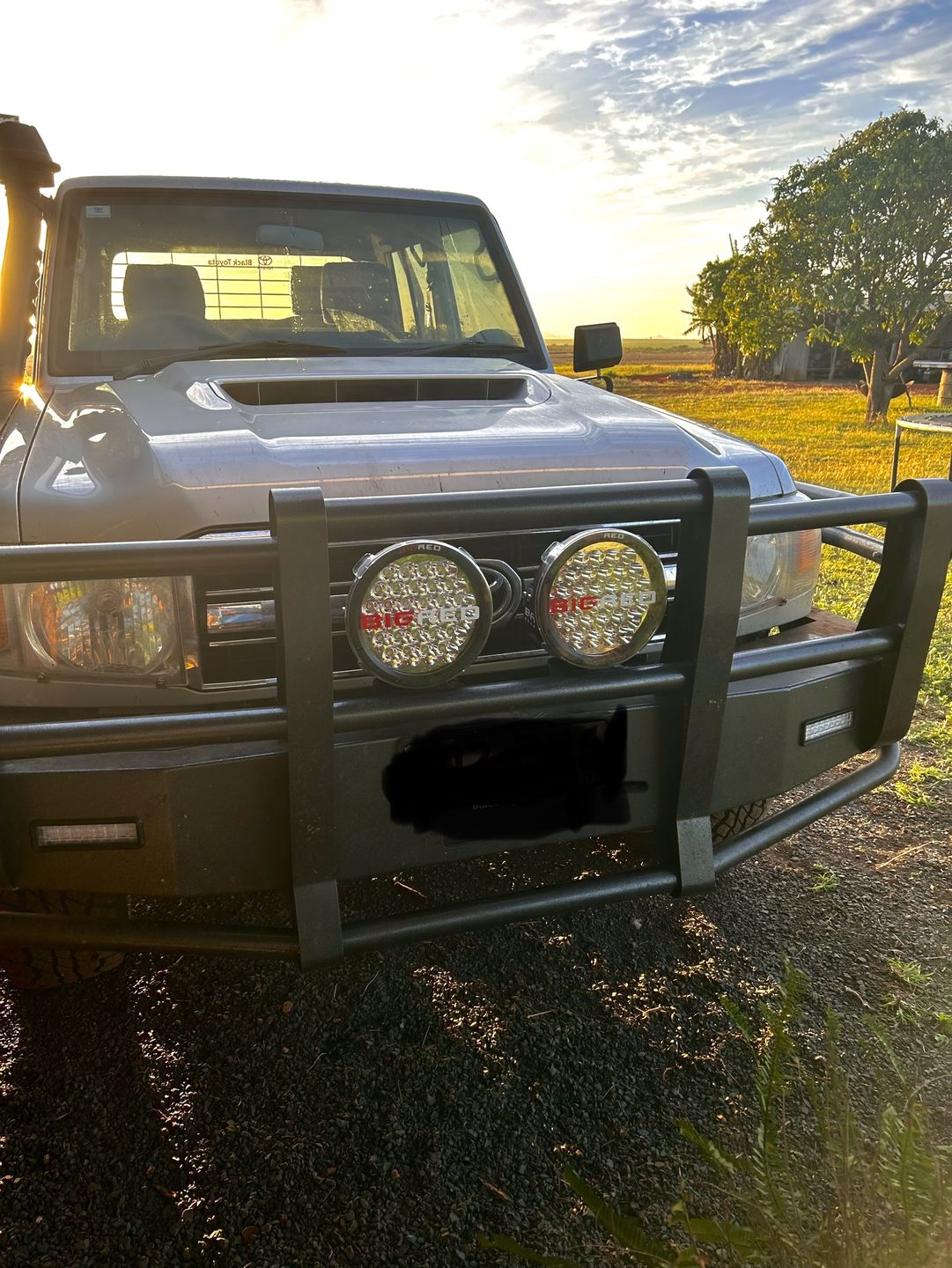

Just had the Big Reds on a country work trip in Outback South Australia and really happy with them. Had some late finishes in the dark and I needed them to get home safe. Am so happy with these driving lights and I'm so less anxious about night country driving now. And I care about wildlife and animals on the road and these lights make it so much easier to avoid hitting them. Thank you Big Red and I'll be putting some more on my ute.
Al Colman

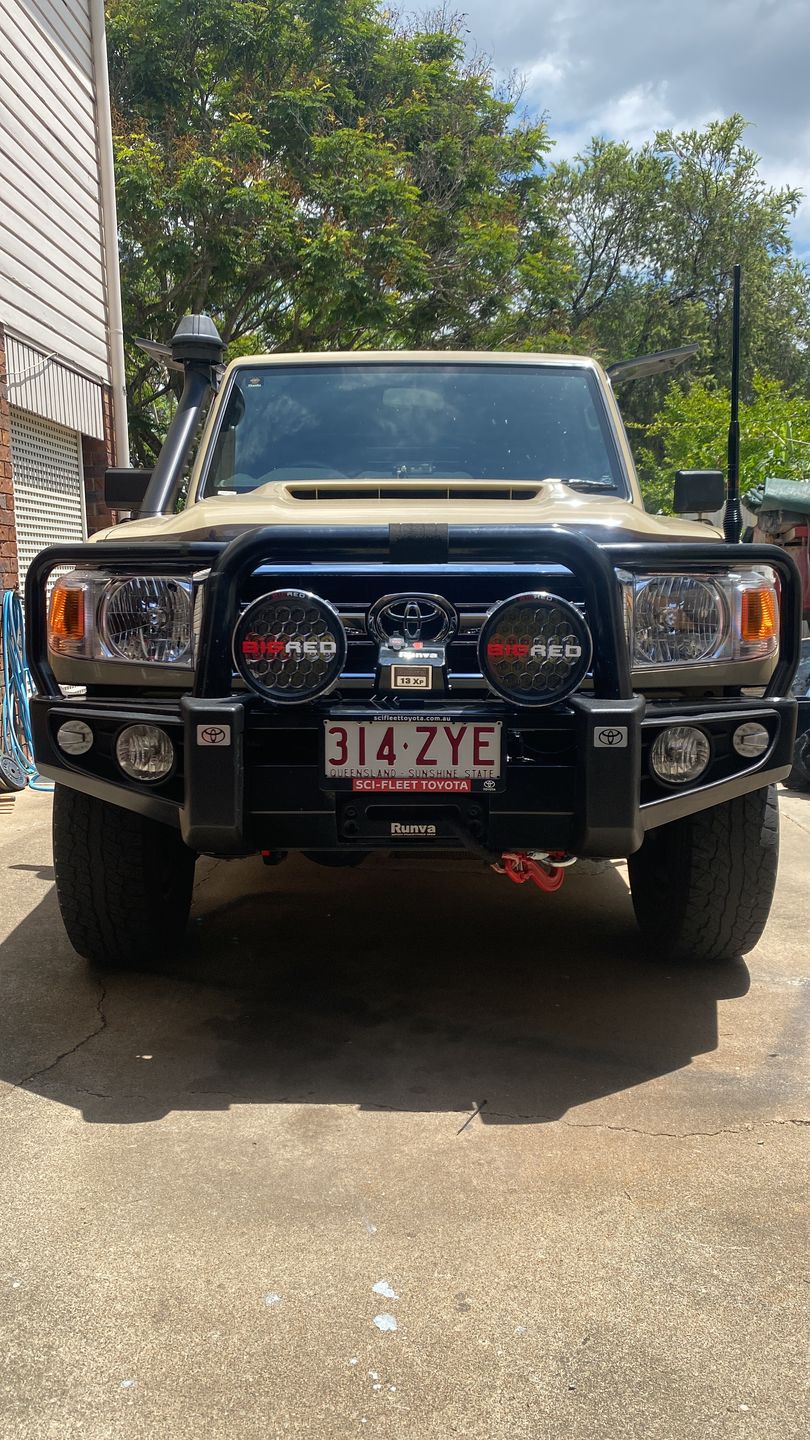

Have had the 5 inch lights on my old Ute so now I’ve gone to the 9 inch on my new Ute and love them. Turns night into day I spend plenty of time in the bush and being able to light up the whole road is a huge thing to dodge animals and hazards

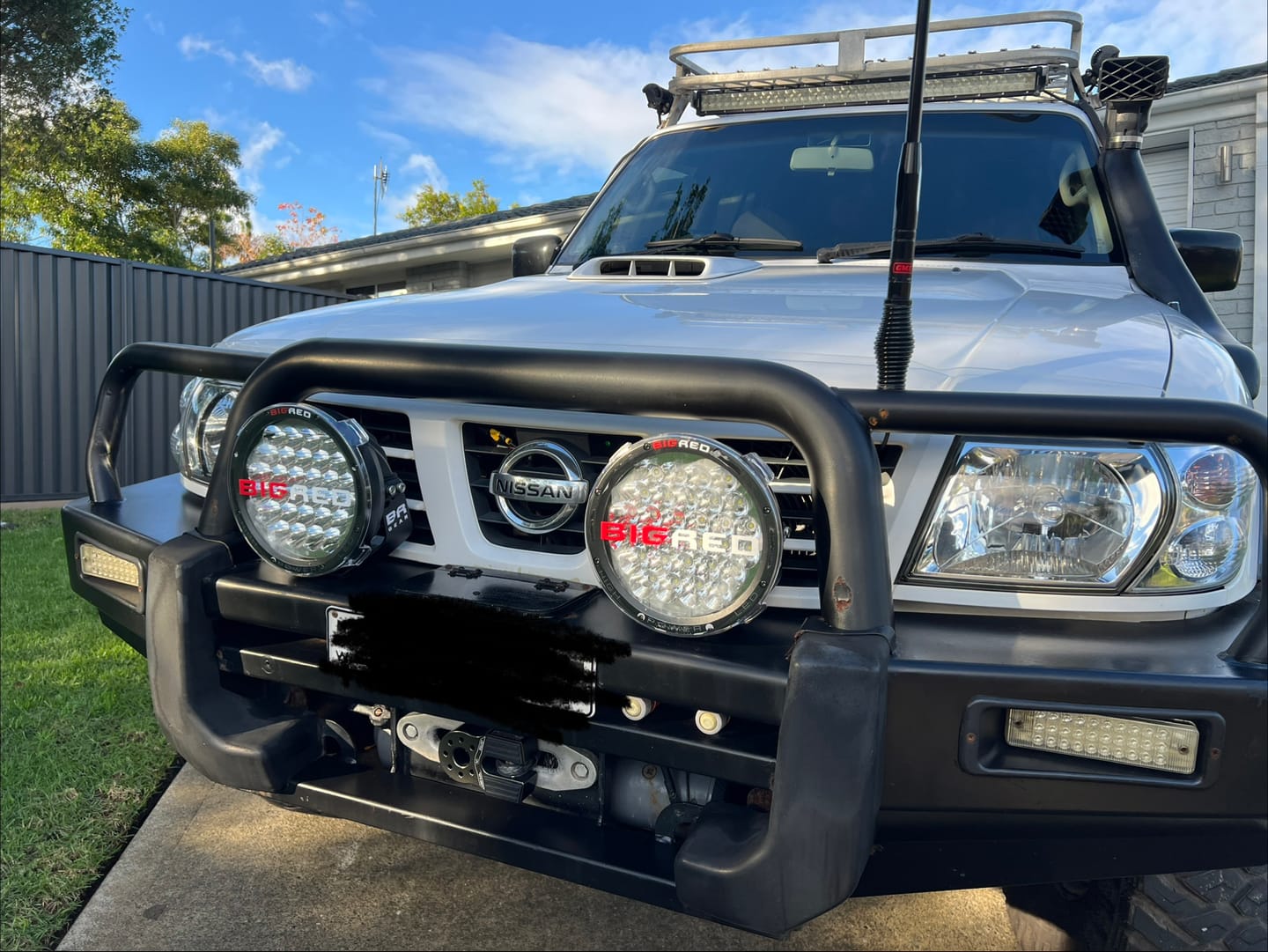

Couldn't be happier with these spotties! Absolute beasts!! The plug and play wiring harness was an absolute game changer as well. So easy...so straightforward...such an awesome idea. I wouldn't ever use anything else from this point on.

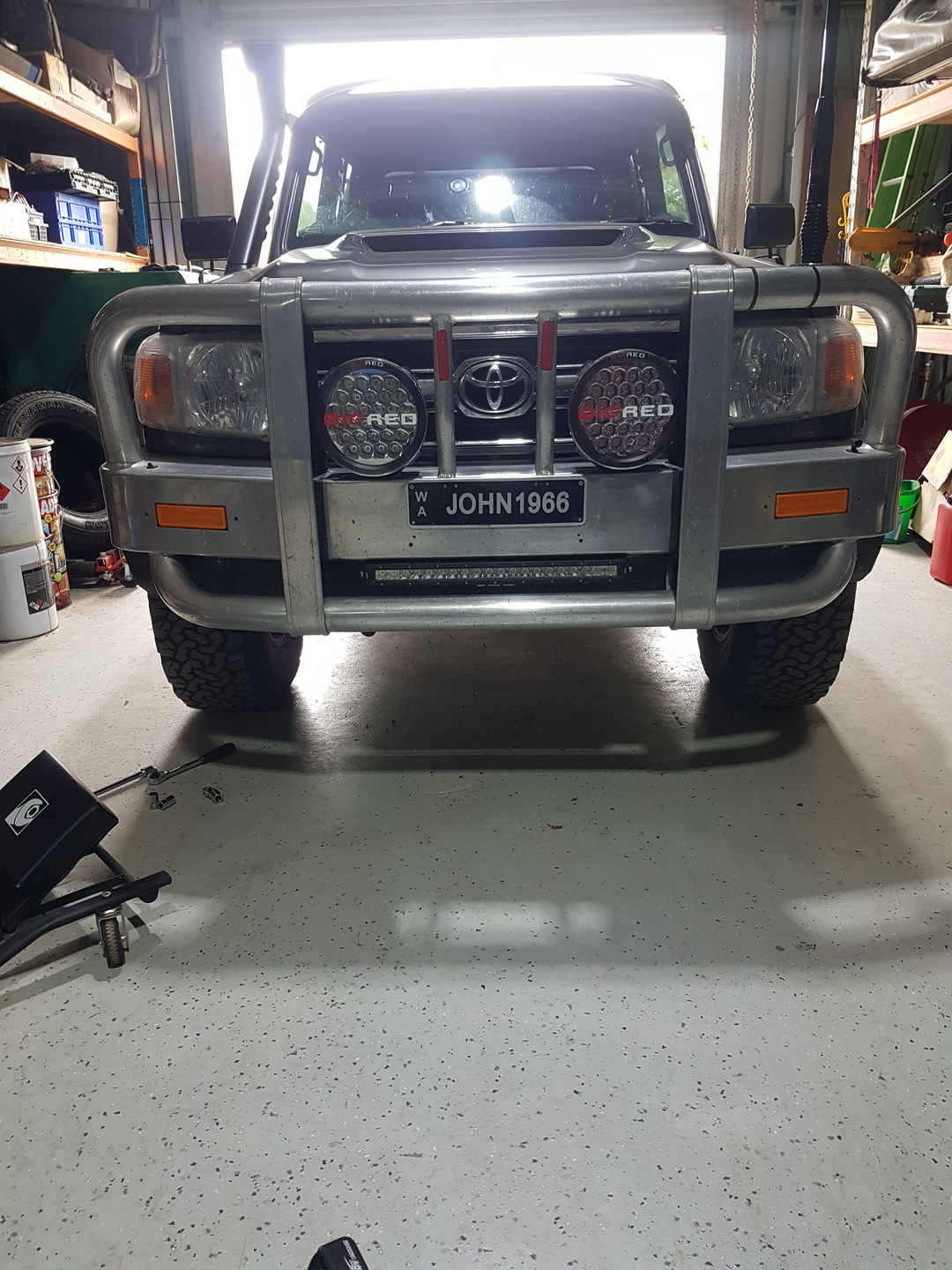

New rig that I’m preparing for a cape trip in 4 months and big red 9inch for the win. Easy fitting and awesome connection with the waterproof speed clips in the wiring harness. Thanks legends 🤙 not scared of the dark anymore 😂🤙
The kit includes two BR9032 9 inch BRG LED driving lights, clear lens covers, stainless steel mounting hardware, rubber mounting pads, 2-position DT leads and a plug-and-play wiring harness. The harness includes HB3 and H4 high-beam adaptors, a 12V 40A relay, rocker switch and 30A fuse.
Yes. The BR9032 lights use 5700K Osram LEDs and, as a pair, produce 1 lux at 921 metres. They are fully sealed to IP68 for dust and water ingress protection and use heavy-duty stainless steel brackets for off-road conditions.
Use the supplied mounting hardware and plug-and-play wiring harness. The harness includes HB3 and H4 high-beam adaptors; check your vehicle fitment before installation because some vehicles require a different adaptor. If you are not confident with automotive wiring, use a qualified auto electrician.
IP68 means the BR9032 lights are sealed against dust and water ingress. Big Red Gear tests these lights for submersion to 3 metres, which makes them suitable for wet, dusty off-road conditions and river crossings.
A pair of BR9032 lights produces 1 lux at 921 metres. Their 5700K Osram LEDs provide a natural white light for long-range visibility.
Check the road rules that apply where you drive and make sure the lights are installed and used in accordance with local vehicle-lighting requirements.
The lights use heavy-duty black powder-coated stainless steel brackets and stainless steel mounting hardware. Each light also has a rubber dampening system and a 3mm hard-coated polycarbonate lens for vibration, impact, scratch and UV protection.
The BR9032 lights are rated for 12V and 24V. The supplied BR9095 harness includes a 12V relay plus HB3 and H4 high-beam adaptors, so complete-kit compatibility depends on your vehicle’s voltage and high-beam connection. Use the adaptor finder on this page and have the installation checked by a qualified auto electrician.
