5" Inch BRG Starter Kit
5" Inch BRG Starter Kit
5" Inch BRG Starter Kit
5" Inch BRG Starter Kit
5" Inch BRG Starter Kit
5" Inch BRG Starter Kit
5" Inch BRG Starter Kit
5" Inch BRG Starter Kit
5" Inch BRG Starter Kit

5" Inch BRG Starter Kit

SKU BRGPROMO5

Regular price$225.00
/

Features

  • High output 5W Osram LEDs produce a crisp, white light that we shape using precisely formed and aligned reflectors. This ensures an even distribution of light and perfectly formed spot beam for distance down the road.
  • 5700°K colour temperature LED’s blend the perfect balance of white light while retaining the best possible definition and Colour Rendering Index (CRI).
  • Our heavy duty stainless steel brackets are suitable for the rigours of off-road, 4WD tracks and have been finished in a durable black powder coat with white BR GEAR logos.
  • Each lamp includes our innovative rubber dampening system to help isolate the housing from the bracket and reduce vibration on the electronics.
  • We use a 3mm thick virtually unbreakable polycarbonate lens with hard coating for increased scratch resistance and protection from exposure to UV light.
  • Our lamps are also tested and complied to ECE R10 for Electro Magnetic Compatibility (EMC), meaning you should not have any problems interfering with sensitive equipment.
  • Each lamp also includes a clear see though polycarbonate cover for protection from stone spray and debris.
  • Fully sealed and tested to IP68 for dust and water ingress protection, meaning they are waterproof for up to 3m of submersion. Perfectly suited for river crossings.
VideoVideo

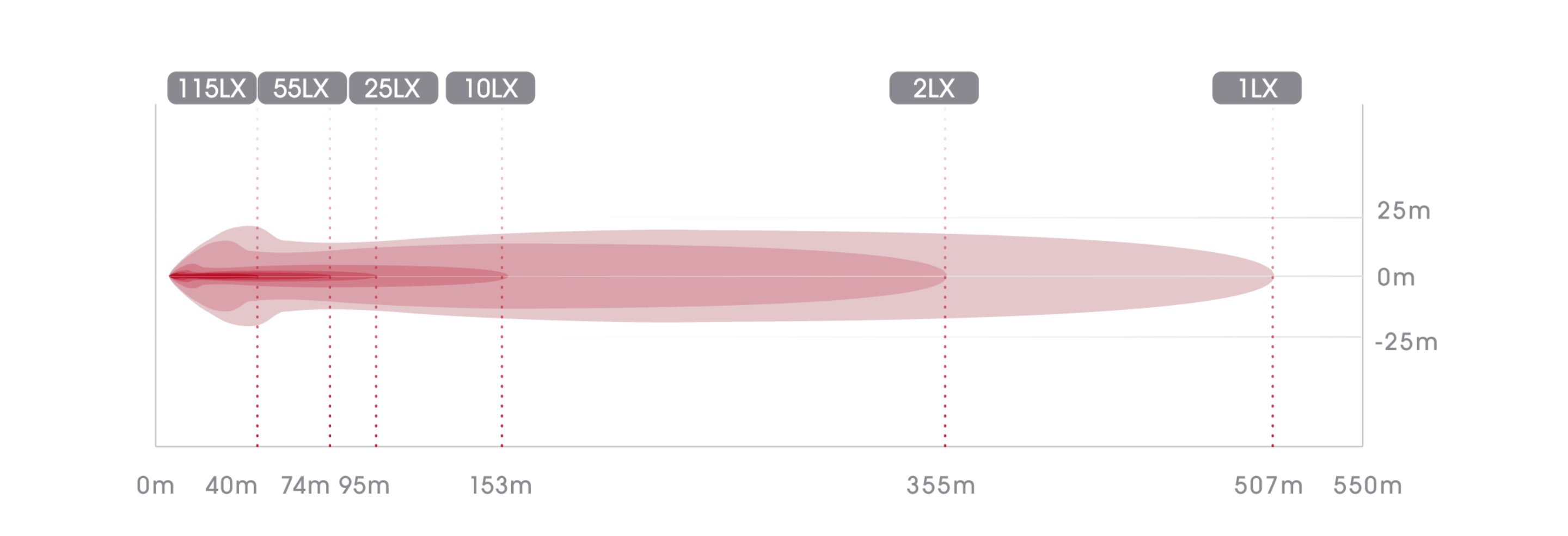

Beam Diagram

1 Lux at 507m (with two lamps)

Technical Specifications

SpecificationsBR9012
Warranty3 Years
Input Voltage
12/24V
Current Draw 12V (single Lamp)3A
LEDs (Osram)9 x 5W
Colour Temperature5700°K
EMCECE R10
IP RatingIP68
Raw Lumens4500
Effective Lumens3409
1 Lux Distance (two lamps)507m
Warranty3 Years
Weight1.4kg (Single)
Video

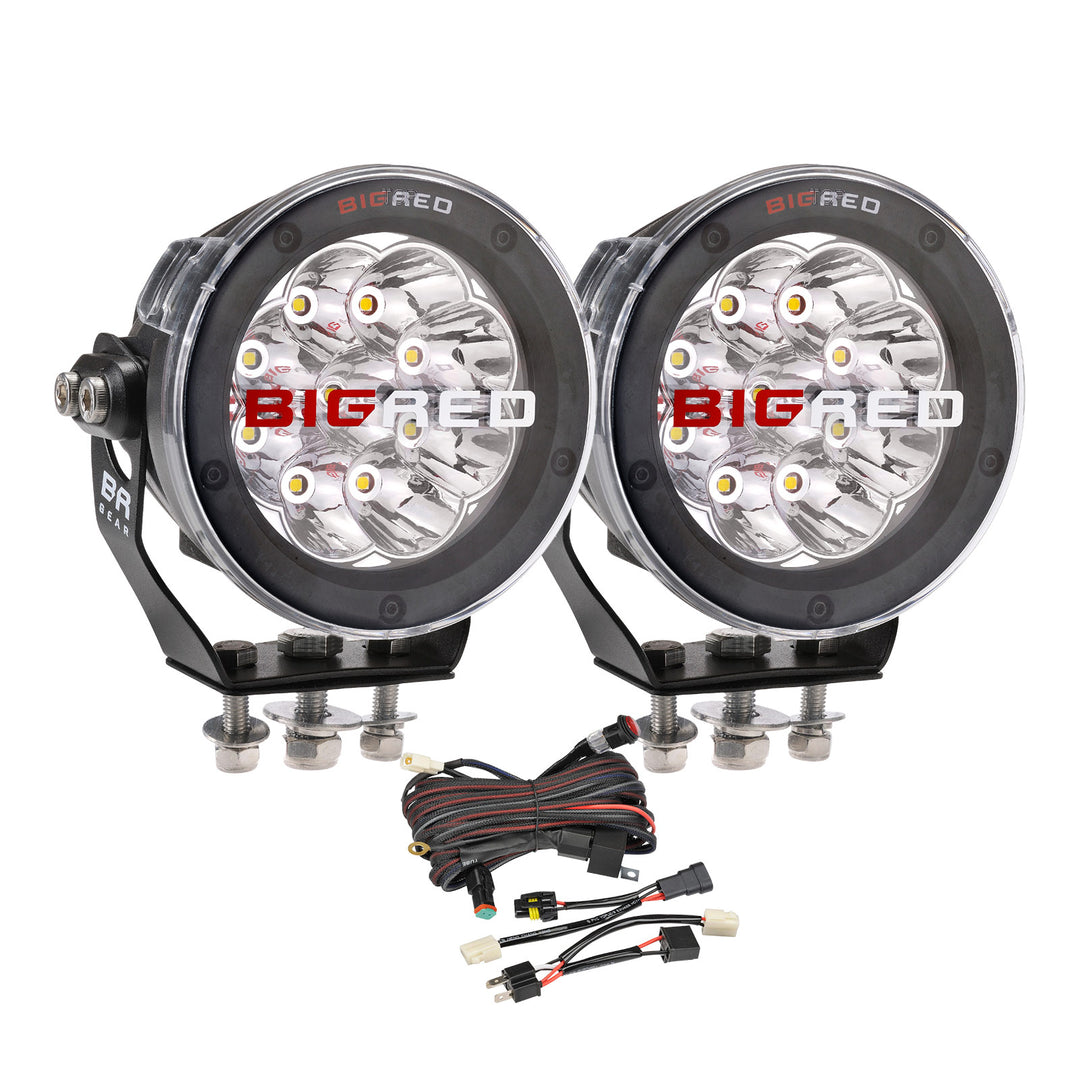

What you get

BRG 5" Inch LED Driving Lights

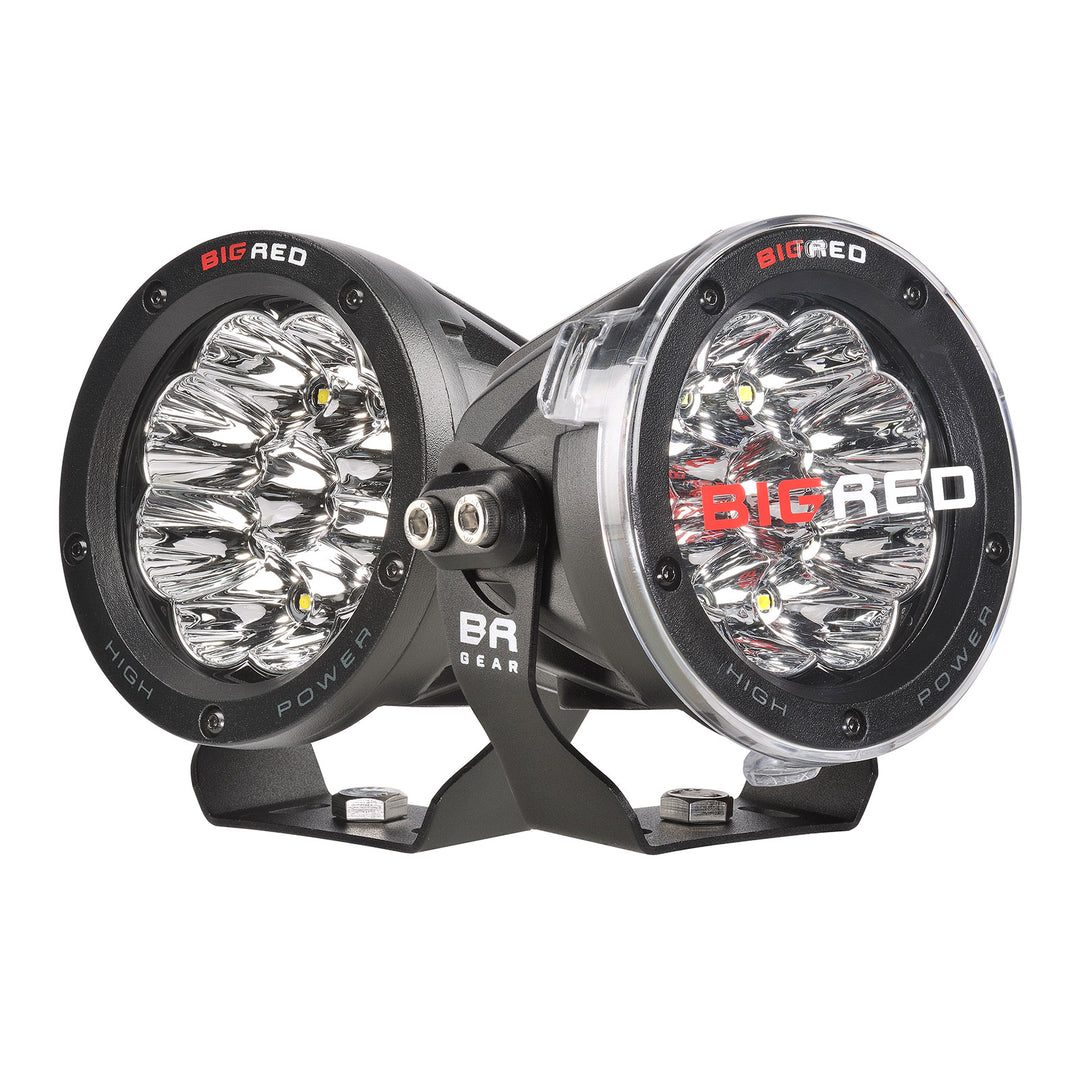

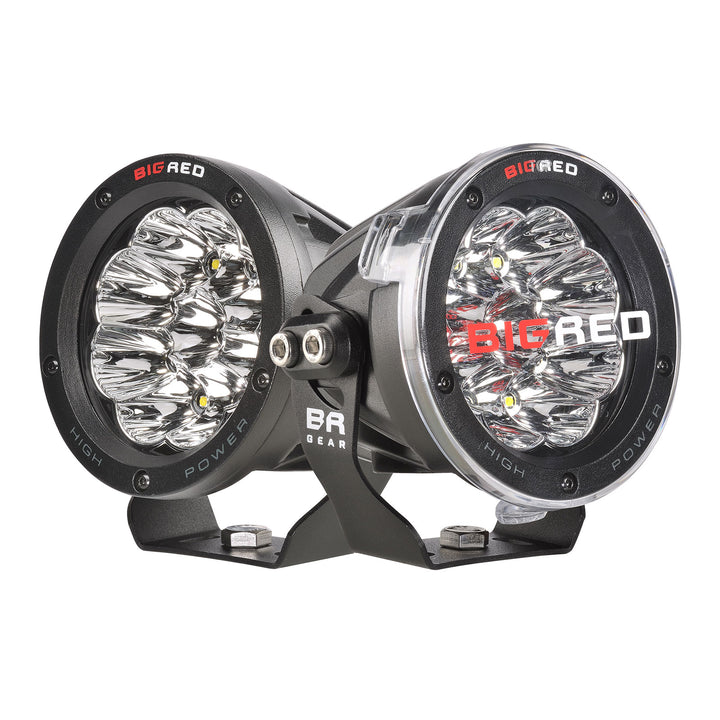

  • BR9012 5" Inch BRG LED Driving Light x2
  • Big Red Gear Clear Cover
  • Stainless Steel Bolts, Nuts and Washers
  • Rubber Mounting Pad
  • Distribution Plate
  • 2 Position DT lead
  • Product Instructions

Plug and Play Wiring Harness

  • Plug and Play wiring harness x1
  • HB3 and H4 high beam adaptor
  • 12V 40A relay
  • 12V rocker switch
  • Product instructions
