SKU BR9532

$59.00
/
Tax included. Shipping calculated at checkout.

These 40W square work lights shine an incredible 120 degree beam up to 102m from the light source. They are often mounted into rear bars or canopies to provide auxiliary lighting for off-road driving, reversing or working around the vehicle.

Features

  • Black stealth slimline design.
  • 40W’s of high output Osram LED’s are precisely aligned within the unique, optic drive reflectors to reduce glare and maximise performance.
  • The flush mount design often sees these lamps fitted to rear bars to provide additional light when reversing.
  • Tough aluminium diecast housing and UV stable polycarbonate lens.
  • Multi-voltage input suitable for both 12 and 24V vehicles.
  • Fully sealed and rated to IP67 for dust and water ingress protection.

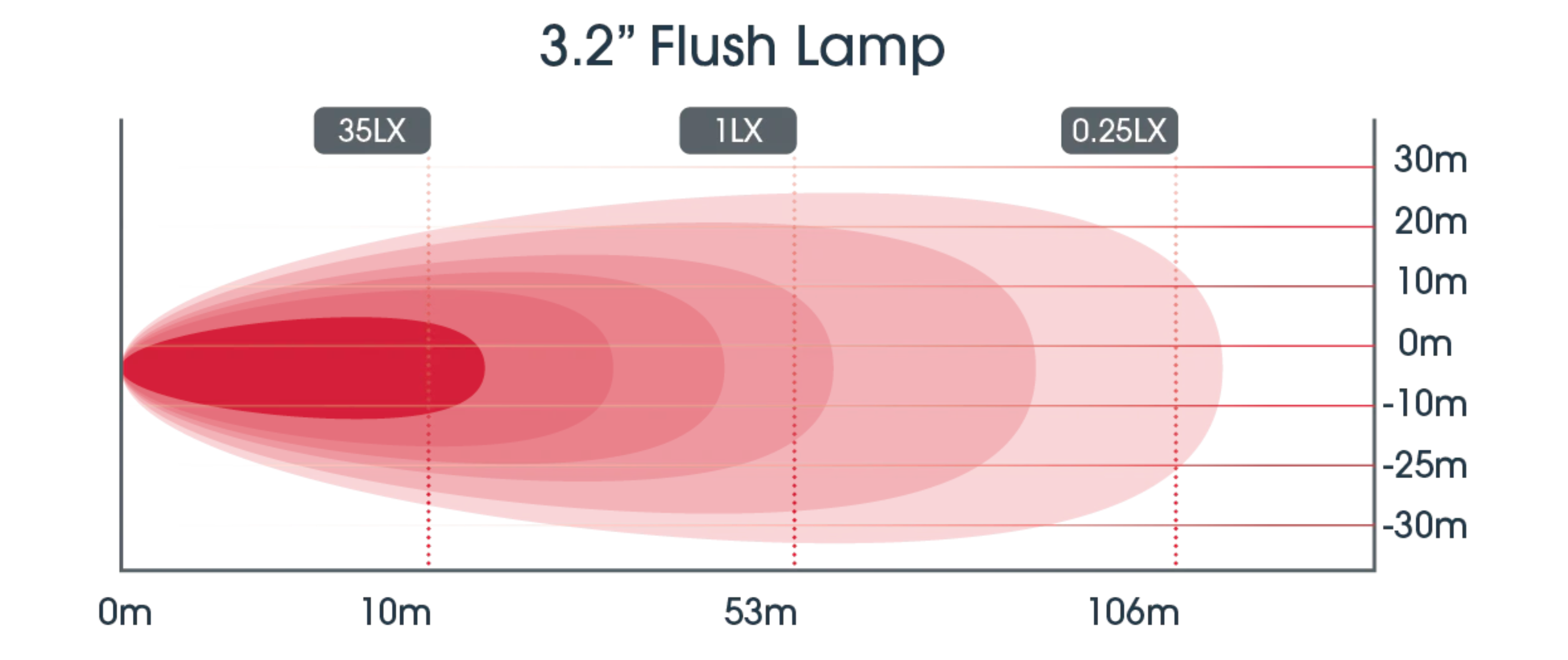

Beam Diagram

1 Lux at 53m

Technical Specifications

SpecificationsBR9532
Beam TypeFlood
Wattage
40W
Input Voltage12/24V
Current Draw (12V)3.4A
LEDs (Osram)4
Colour Temperature5700°K
HousingPressure die-cast aluminium
HardwareStainless Steel
LensPolycarbonate
ProtectionReverse Polarity Protection
EMCECE R10
IP RatingIP67
Raw Lumens4800
Effective Lumens-
1 Lux Distance53m
Warranty3 Years
Weight0.5kg

What you get

  • 1x BR9532 3.2" Flush Lamp Flood Beam
  • Mounting Bracket
  • Mounting Hardware
  • 1x Female Pigtail Connector
  • Product Instructions
