9 Inch BRG LED Driving Light (each)

SKU BR9032

Regular price$185.00
/
Tax included. Shipping calculated at checkout.

Big Red Gear driving lights are back with better value and even more output! We’ve modified our frontrunner 9” inch BRG LED driving lights, now equipped with 30 high-output Osram LEDs for better performance. Precisely formed and aligned reflectors combine to produce crisp high-definition lights with huge capacity for illumination down the road. In fact, two lights produce a beam throw of up to 921 metres at 1 lux.

Considered design elements combine to give the 9” inch BRG LED driving lights durability and a precision look. These lights are ready for anything, whether it’s dirt tracks or river crossings. Mounted on black powder coated stainless steel brackets and fully sealed and rated to IP68 for dust and water ingress protection, these lights are built for lasting performance.

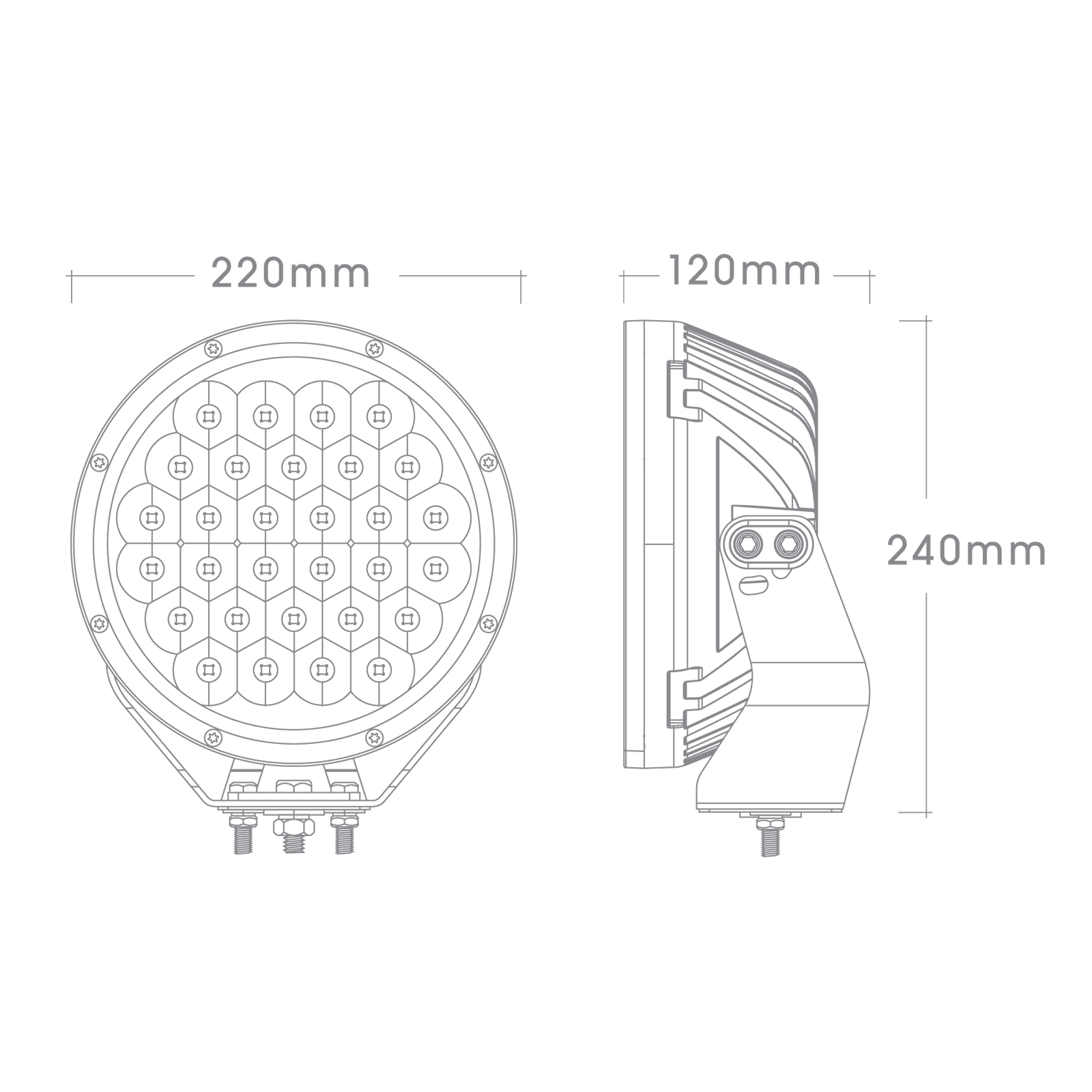

With dimensions at 220mm wide, 240mm high and 120mm deep, our 9” inch BRG LED driving lights will look comfortable on any large off-road 4x4.

Features

  • Blacked out virtually unbreakable Polycarbonate lens protector NOTE: Remove blacked-out lens covers when using driving lights as they emit a non-approved green glow, only suitable for off-road use.
  • High power Osram LEDs produce a natural white light (5700°K) close to daylight
  • Dynamic Position Light (White or Amber)
  • ‘Covert’ Black chrome reflector
  • Heavy duty stainless steel brackets with three bolt mounting.
  • Virtually unbreakable polycarbonate lens
  • Stainless steel mounting hardware.
  • Integrated sealed DT connector
  • Fully sealed and weatherproof (IP67)
  • Requires no maintenance — expected life of LEDs is over 50,000 hours

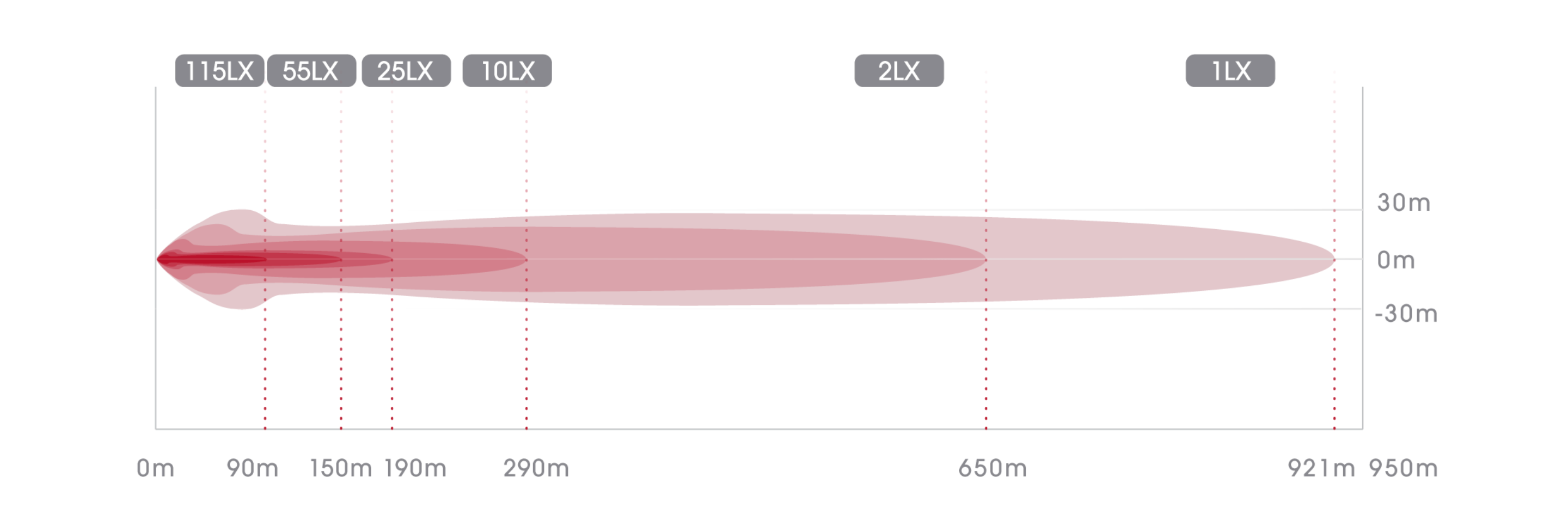

Beam Diagram

1 Lux at 921m (with two lamps)

SpecificationsBR9032
Wattage150W
Input Voltage
12/24V
Current Draw 12V11A
LEDs (Osram)30 x 5W
Colour Temperature5700°K
EMCECE R10
IP RatingIP68
Raw Lumens15000
Effective Lumens9056
1 Lux Distance (two lamps)921m
Warranty3 Years
Weight3.8kg

What you get

  • BR9032 9" Inch BRG LED Driving Light x1
  • Big Red Gear Clear Cover
  • Stainless Steel Bolts, Nuts and Washers
  • Rubber Mounting Pad
  • Distribution Plate
  • 2 Position DT lead
  • Product Instructions
